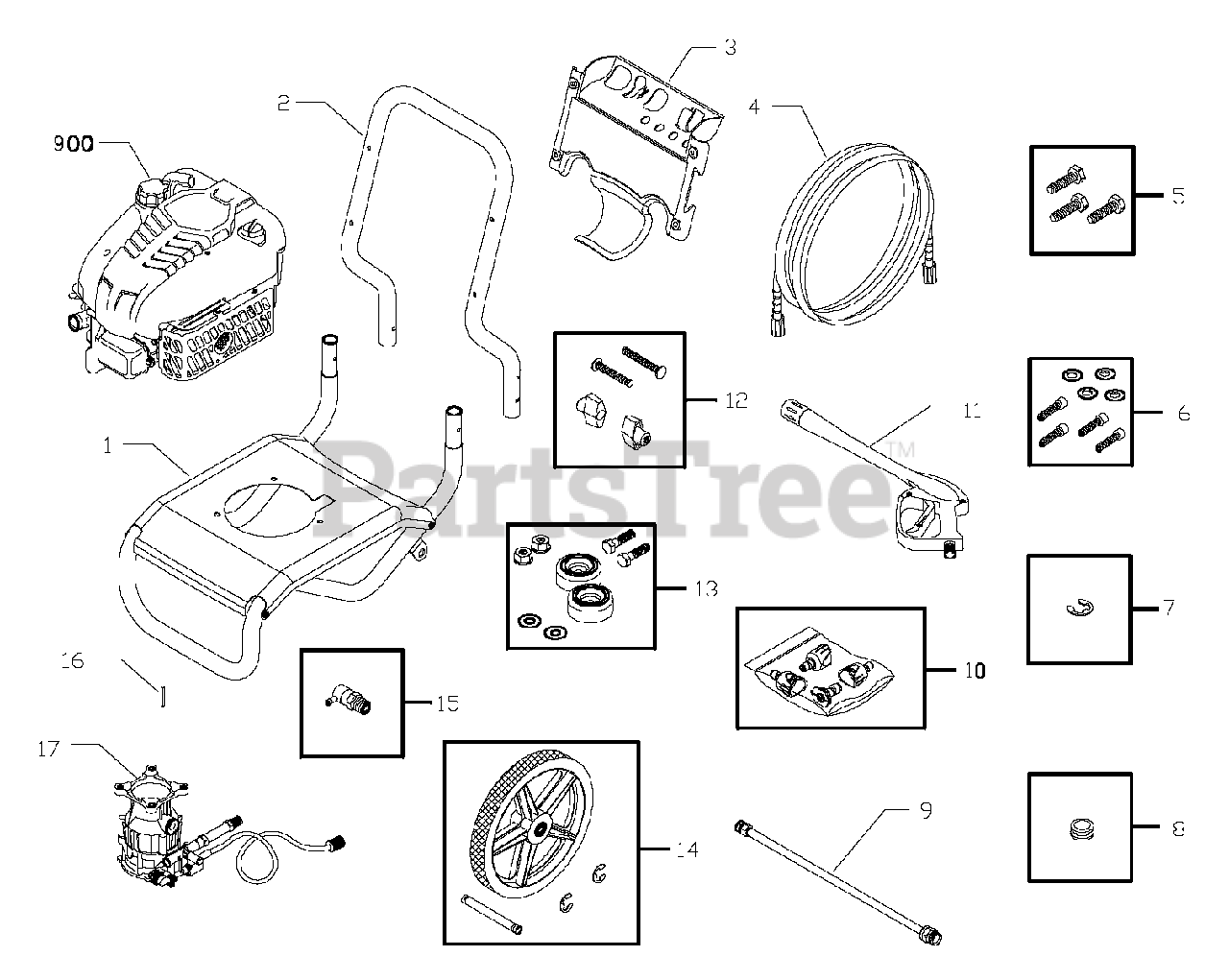

580.752410 (020235-0) - Craftsman 2,900 PSI Pressure Washer Main Unit Parts Diagram

2,900 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 196614GS

ASSY, Base

$195.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton R196526GS

HANDLE

$75.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195880GS

ASSY, Billboard

$47.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195964GS

CLIP, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 192133GS

KIT, Engine Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192050GS

KIT, E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

8

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 195970GS

ASSY, Extension
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

10

Briggs & Stratton 195889GS

KIT, Nozzles
(Superseded to 202182GS)

$31.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 195851ZZGS

NOZZLE, QC, Black
(Superseded to 195846ZZGS)

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195842AAGS

NOZZLE, QC, Red
(Superseded to 201580AAGS)

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195842XGS

NOZZLE, QC, Orange
(Superseded to 201580XGS)

$10.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 195842RGS

NOZZLE, QC, Yellow
(Superseded to 201580RGS)

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B3263GS

GUN

$93.99

$

In Stock, Qty 7

0

12

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 1 left!

0

13

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 11

0

14

Briggs & Stratton 196439GS

KIT, Wheel

$75.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

17

Briggs & Stratton 198164GS

ASSY, Pump
(Superseded to 206376GS)

Note: (see "Pump")

$385.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE (129612-0114-E1)

$

$

Not available

Briggs & Stratton AB3061BGS

BOTTLE, Oil

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 195885GS

MANUAL, Operator'ss

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

KIT, Tag Warning w/Clip
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 5097D

Fresh Start Cartridge

Note: Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199GS

Rotating Brush Kit

Note: Optional Accessories Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 190249GS

25' Replacement Hose
(Superseded to 708962)

Note: Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 7174400GS

Turbo Nozzle

Note: Optional Accessories Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100513GS

Extension Hose, 25'
(Superseded to 206192GS)

Note: Optional Accessories Not Illustrated

$103.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: Optional Accessories Not Illustrated

$21.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessories Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessories Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessories Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessories Not Illustrated

$

$

Not available
