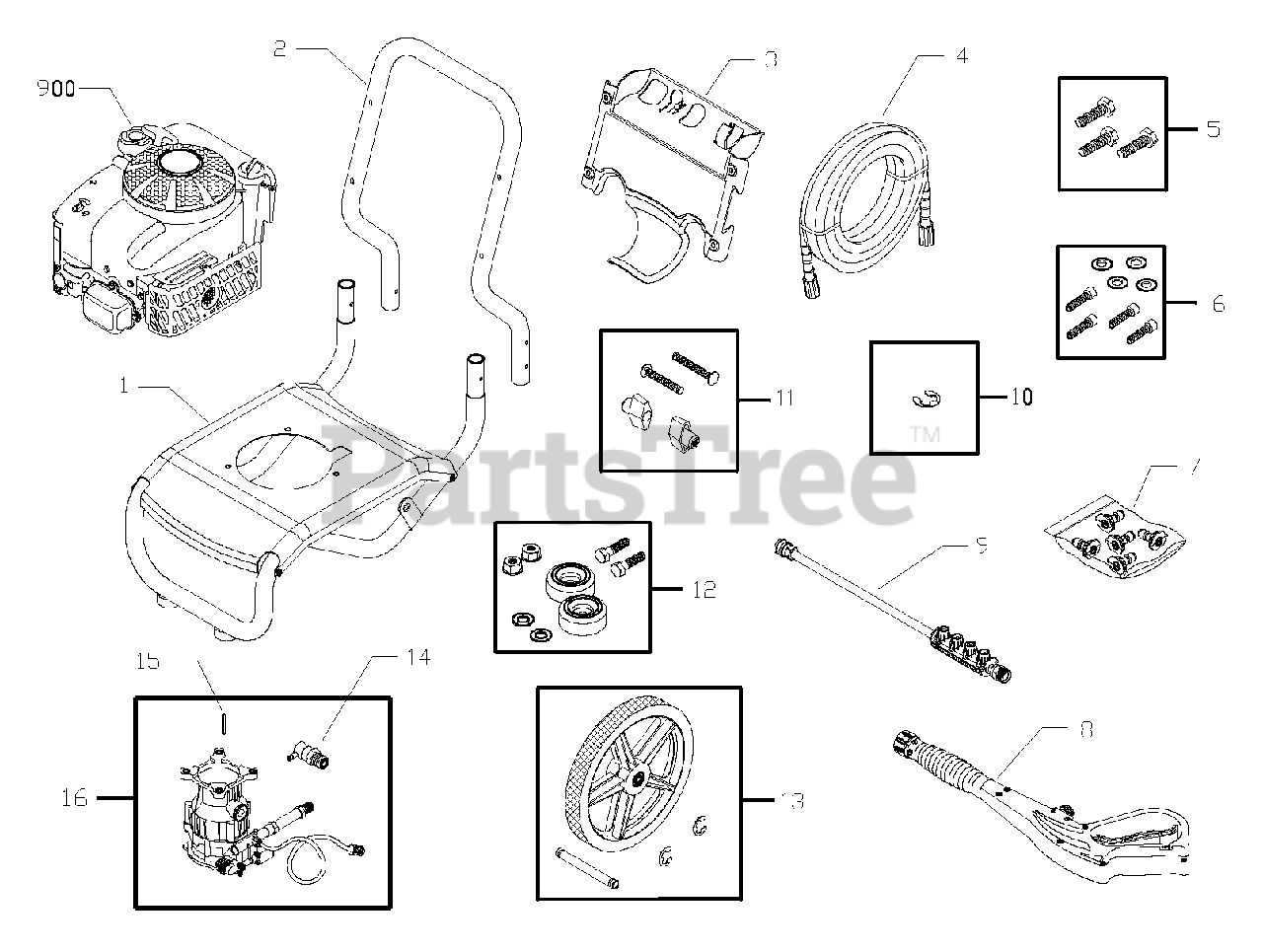

580.752370 (020286-0) - Craftsman 2,800 PSI Pressure Washer Main Unit Parts Diagram

2,800 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 200159GS

ASSY, Base

$114.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton M199108GS

HANDLE

$110.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 200160GS

ASSY, Billboard/Decals

$58.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 192133GS

KIT, Engine Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 200030GS

KIT, Nozzle QC

$32.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 195851ZZGS

Nozzle, QC, Black
(Superseded to 195846ZZGS)

$11.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 195983WGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 195983XGS

Nozzle, QC, Yellow

$10.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 195983YGS

Nozzle, QC, Green

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983ZGS

Nozzle, QC, White

$10.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 199117GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, Qty 8

0

9

Briggs & Stratton 192199GS

ASSY, Extension w/ Nozzle Holder
(Superseded to 207796GS)

$53.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

11

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 11

0

13

Briggs & Stratton 196439GS

KIT, Wheel

$75.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 198164GS

ASSY, Pump
(Superseded to 206376GS)

Note: (see "Pump")

$385.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE (12G612-0110-E1)

$

$

Not available

Briggs & Stratton 194256GS

KIT, Tag Warning with Clip
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200031GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 275034

LABEL, Hot Surface Warning

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessories

$

$

Currently unavailable

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessories

$

$

Currently unavailable

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessories

$

$

Currently unavailable

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessories

$

$

Currently unavailable

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: Optional Accessories

$21.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessories

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessories

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessories

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessories

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2gallons)
(Superseded to 6160)

Note: Optional Accessories

$

$

Not available

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6060

PERFECT MIX CONCRETE BRICK & TILE CLEANER

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
