580.752290 (020372-0) - Craftsman 3,100 PSI Pressure Washer Main Unit Parts Diagram

3,100 PSI Pressure Washer

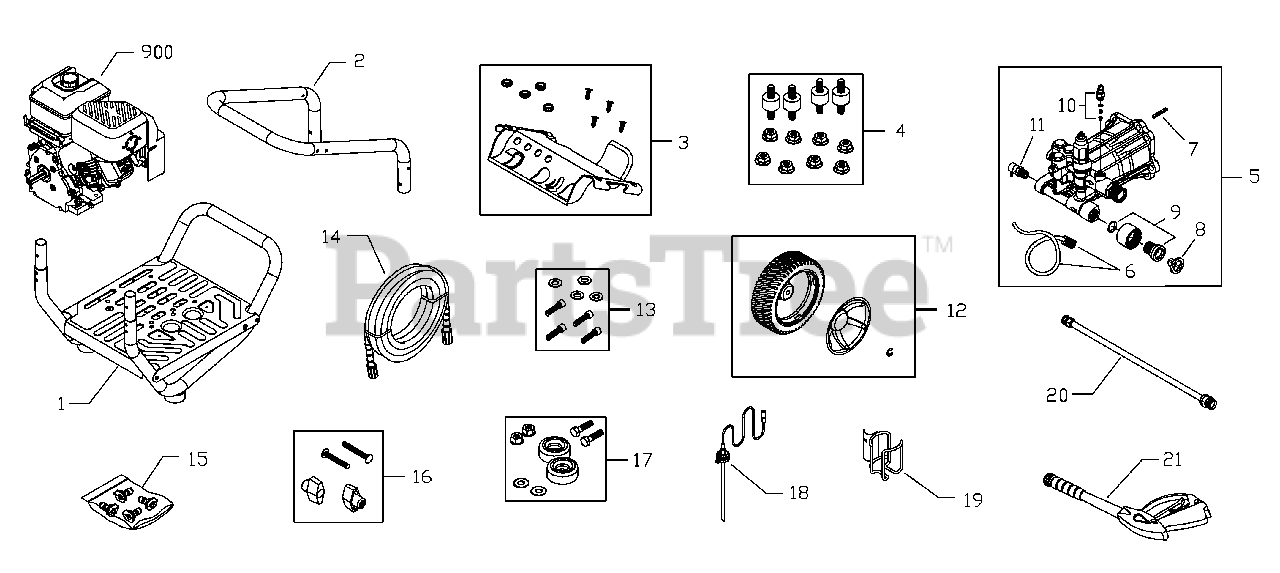

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 202974GS

Base, w/Vib Mounts

$

$

Not available

2

Briggs & Stratton B201499GS

Handle

$70.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206332GS

Kit, Billboard/Decals, w/Clips

$58.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 30809GS

Grommet

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192134GS

Kit, Engine Mounting Hardware

$29.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 203901GS

Assy, Pump
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 189971GS

Kit, Chemical Hose

$

$

Not available

7

Briggs & Stratton 23139DGS

Key

$4.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton B2384GS

Filter, Inlet

$4.49

$

In Stock, Qty 15

0

9

Briggs & Stratton 204085GS

Kit, Water Inlet

$65.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 192914GS

Kit, Hose Tail

$24.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 202978GS

Kit, Wheel

$40.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200517GS

Hubcap

$16.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

13

Briggs & Stratton 192131GS

Kit, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 202634GS

Hose
(Superseded to 209283GS)

$106.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 198690GS

Kit, Nozzle

$36.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983AAGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983ABGS

Nozzle, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983ADGS

Nozzle, QC, White

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198841GS

Nozzle, Plastic, Soap

$10.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B2203GS

Kit, Handle Fastening

$5.49

$

In Stock, only 1 left!

0

17

Briggs & Stratton 192553GS

Kit, Vibration Mount

$16.99

$

In Stock, Qty 7

0

18

Briggs & Stratton 204658GS

Hose, Chemical

$30.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 204484GS

Wireform
(Superseded to 206566GS)

$27.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 200595GS

Extension, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

21

Briggs & Stratton 199990GS

Gun
(Superseded to 704312)

$93.99

$

In Stock, Qty 7

0

900

NSP

Engine

Note: 12T412-0113-F8 See Pages 26-29

$

$

Not available

Briggs & Stratton 206170GS

Manual, Operator's

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

Goggles

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201314GS

Axle

Note: Items Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton AB3061BGS

Oil Bottle

Note: Items Not Illustrated

$

$

Not available

Briggs & Stratton 695755

Knob, Throttle

Note: Items Not Illustrated

$11.99

$

In Stock, only 2 left!

0

Briggs & Stratton 200658GS

Decal, Recoil

Note: Items Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202704GS

Decal, Air Cleaner

Note: Items Not Illustrated

$8.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

Kit, Tag, Warning, Srv
(Superseded to 705752)

Note: Items Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories Not Illustrated

$12.99

$

In Stock, Qty 20+

0

Briggs & Stratton 6159

Project Pro® Perfectmix™ Multi-Purpose And Vehicle Cleaner

Note: Optional Accessories Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6160

Project Pro® Perfectmix™ Concrete, Brick, And Tile Cleaner

Note: Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 6161

Project Pro® Perfectmix™ Mold And Mildew Cleaner

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable
