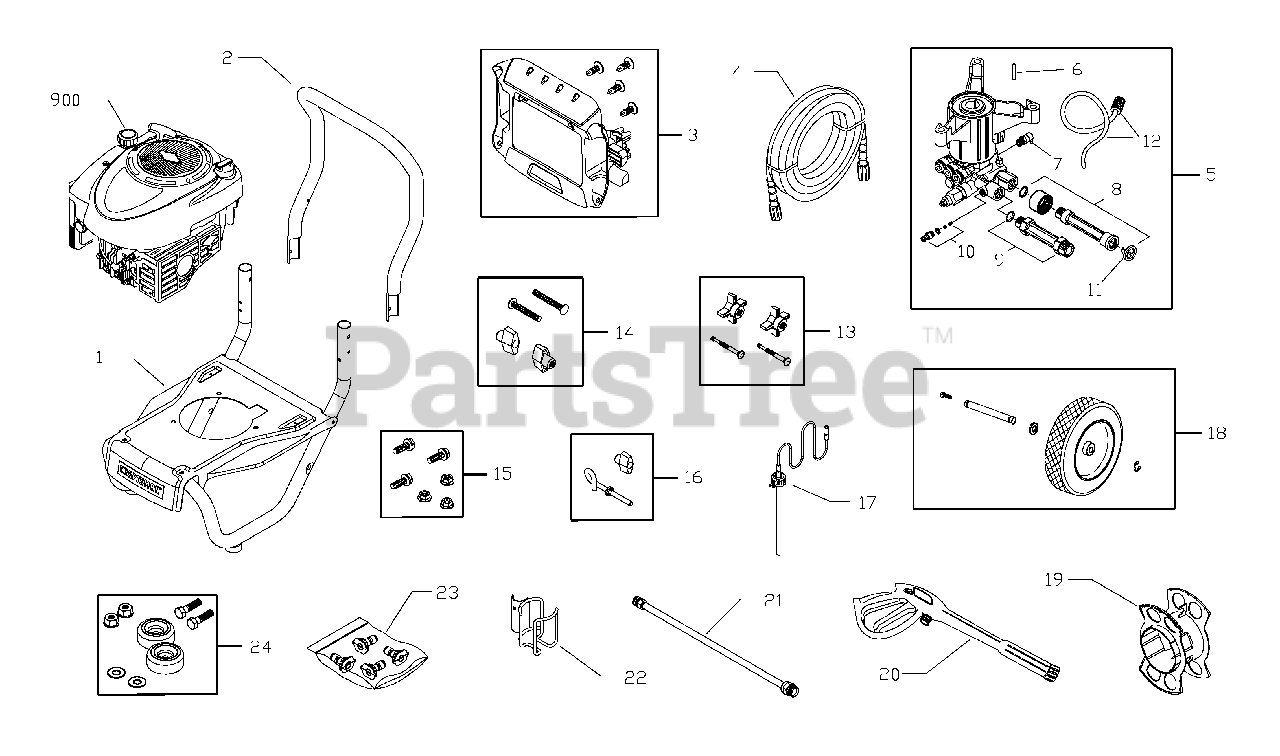

580.752190 (020353-0) - Craftsman 2,550 PSI Pressure Washer Main Unit Parts Diagram

2,550 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 205909GS

Base, w/Vib Mounts

$

$

Not available

2

Briggs & Stratton M204257GS

Handle

$78.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 205911GS

Kit, Billboard w/Clips & Decals

$105.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clip, Tree

$4.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 196006GS

Hose
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

5

Briggs & Stratton 202274GS

Assy, Pump
(Superseded to 207365GS)

$234.99

$

In Stock, Qty 7

0

6

Briggs & Stratton 23139GS

Key

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 201496GS

Kit, Water Inlet

$46.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 201497GS

Kit, Water Outlet

$28.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 192914GS

Kit, Hose Tail

$24.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton B2384GS

Filter, Inlet

$4.49

$

In Stock, Qty 15

0

12

Briggs & Stratton 189971GS

Kit, Chemical Hose

$

$

Not available

13

Briggs & Stratton 205910GS

Kit, Handle

$22.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B2203GS

Kit, Handle

$5.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 203526GS

Kit, Pump Mounting Hardware

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205912GS

Kit, Rope Guide

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 204658GS

Hose, Chemical

$30.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 205913GS

Kit, Wheel
(Superseded to 208797GS)

$54.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

18

Briggs & Stratton 205411GS

Axle

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 204684GS

Wrap, Hose

$34.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 204627GS

Gun
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 200595GS

Extension, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

22

Briggs & Stratton 204484GS

Wireform
(Superseded to 206566GS)

$27.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 196278GS

Kit, Nozzles

$44.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 198841GS

Nozzle, Soap

$10.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 195983AEGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 195983AFGS

Nozzle, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 195983AHGS

Nozzle, QC, White

$9.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 192310GS

Kit, Vibration Mount

$9.99

$

In Stock, Qty 9

0

900

NSP

Engine

Note: (126T02-0114-B1) (See Pages 26-28)

$

$

Not available

900

Briggs & Stratton 205675GS

Manual, Operator’s

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 202637GS

Decal, Shroud

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton AB3061BGS

Oil Bottle

Note: Parts Not Illustrated

$

$

Not available

900

Briggs & Stratton 790701

Cover, Static/Label Assy
(Superseded to 795064)

Note: Parts Not Illustrated

$70.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 282846

Cover, Control

Note: Parts Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 189332GS

Cap, Plug

Note: Parts Not Illustrated

$3.99

$

In Stock, only 2 left!

0

900

Murray 794693

Label, Warning

Note: Parts Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 87815GS

Goggles

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 194256GS

Kit, Tag/Warning, Srv
(Superseded to 705752)

Note: Parts Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories Not Illustrated

$17.99

$

In Stock, only 1 left!

0

900

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, Qty 20+

0

900

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories Not Illustrated

$12.99

$

In Stock, Qty 20+

0

900

Briggs & Stratton 6159

Project Pro(R) Perfectmix™ Multi-Purpose And Vehicle Cleaner

Note: Optional Accessories Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 6160

Project Pro(R) Perfectmix™ Concrete, Brick, And Tile Cleaner

Note: Optional Accessories Not Illustrated

$

$

Not available

900

Briggs & Stratton 6161

Project Pro(R) Perfectmix™ Mold And Mildew Cleaner

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable
