580.752180 (020351-0) - Craftsman 2,200 PSI Pressure Washer Main Unit Parts Diagram

2,200 PSI Pressure Washer

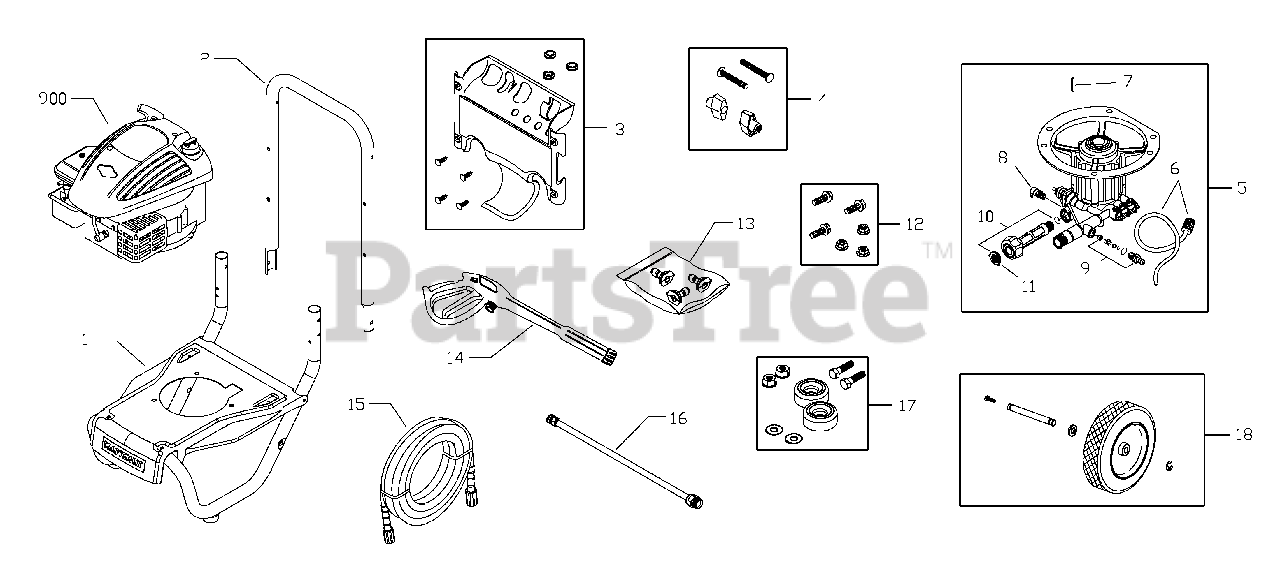

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 206033GS

Base, w/Mounts

$

$

Not available

2

Briggs & Stratton R204650GS

Handle

$76.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206034GS

Kit, Billboard w/Decals

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

Clip

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 30809GS

Grommet

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B2203GS

Kit, Handle Connector

$5.49

$

In Stock, only 1 left!

0

5

Briggs & Stratton 200200GS

Assy, Pump

$

$

Not available

6

Briggs & Stratton 189971GS

Kit, Chemical Hose

$

$

Not available

7

Briggs & Stratton 23139GS

Key

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 200279GS

Kit, Chemical Injection

$22.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 200278GS

Kit, Water Inlet

$

$

Not available

11

Briggs & Stratton B2384GS

Filter, Inlet

$4.49

$

In Stock, Qty 15

0

12

Briggs & Stratton 192525GS

Kit, Pump Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 201324GS

Kit, Nozzles

$22.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983AEGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983QGS

Nozzle, QC, Grn

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 198841GS

Nozzle, Plastic, Soap

$10.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 204627GS

Gun
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 196006GS

Hose
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 200595GS

Extension, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

17

Briggs & Stratton 192310GS

Kit, Vibration Mount

$9.99

$

In Stock, Qty 11

0

18

Briggs & Stratton 205913GS

Kit, Wheel
(Superseded to 208797GS)

$54.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

--

Briggs & Stratton 195411GS

Axle

$223.99

$

Usually ships in 2-12 days

0

900

NSP

Engine

Note: 10T502-0130-B1

$

$

Not available

--

Briggs & Stratton 205577GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton AB3061BGS

Oil Bottle

Note: Parts Not Illustrated

$

$

Not available

--

Briggs & Stratton 87815GS

Goggles

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

--

Murray 794693

Decal, Warning

Note: Parts Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 793973

Assy, Shroud/Label

Note: Parts Not Illustrated

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202673GS

Decal, Shroud

Note: Parts Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194256GS

Kit, Tag Warning
(Superseded to 705752)

Note: Parts Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories Not Illustrated

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories Not Illustrated

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 7174300GS

House Wash Concentrate
(Superseded to 6159)

Note: Makes 4 gallons Optional Accessories Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174301GS

Deck Wash Concentrate
(Superseded to 100524GS)

Note: Makes 2 gallons Optional Accessories Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate
(Superseded to 6160)

Note: Makes 4 gallons Optional Accessories Not Illustrated

$

$

Not available

--

Briggs & Stratton 7174303GS

Degreaser Concentrate
(Superseded to 100526GS)

Note: Makes 4 gallons Optional Accessories Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate
(Superseded to 6160)

Note: Makes 2 gallons Optional Accessories Not Illustrated

$

$

Not available
