580.752150 (020285-0) - Craftsman 3,100 PSI Pressure Washer Main Unit Parts Diagram

3,100 PSI Pressure Washer

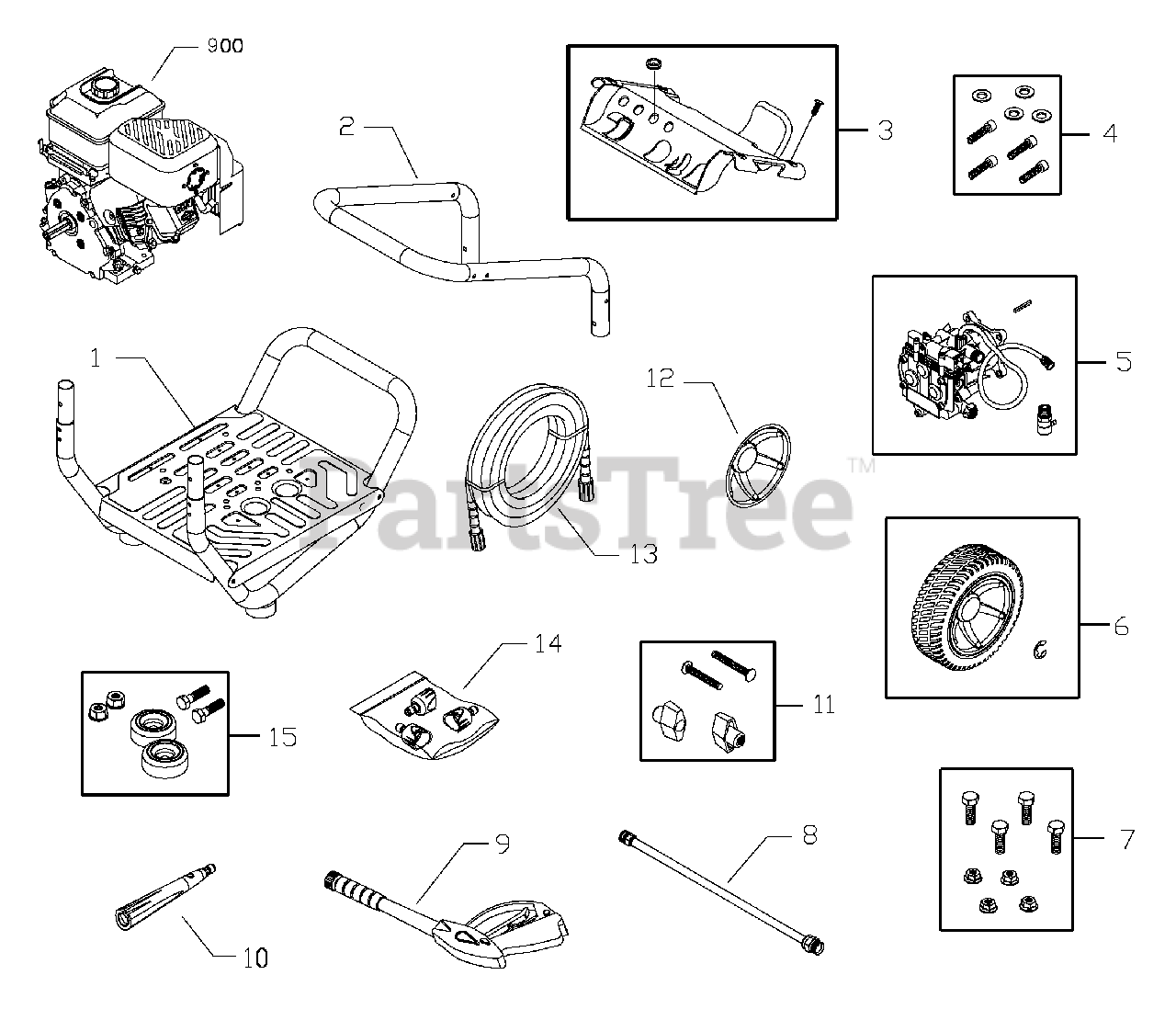

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 202974GS

ASSY, Base

$

$

Not available

2

Briggs & Stratton B201499GS

HANDLE

$70.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 202975GS

ASSY, Billboard with Clips

$

$

Not available

3

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 198347GS

ASSY, Pump
(Superseded to 317054GS)

Note: (see "Pump")

$457.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

5

Briggs & Stratton 23139DGS

Key

$4.49

$

In Stock, only 1 left!

0

6

Briggs & Stratton 202978GS

KIT, Wheel

$40.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

7

Briggs & Stratton 192318GS

KIT, Engine Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 190779GS

ASSY, Extension
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

9

Briggs & Stratton 199990GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, Qty 7

0

10

Briggs & Stratton 198423GS

ASSY, Foaming Nozzle

$

$

Not available

11

Briggs & Stratton B2203GS

KIT, Handle Fastening

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 200517GS

HUBCAP

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 202634GS

HOSE
(Superseded to 209283GS)

$106.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 201758GS

KIT, Nozzle

$34.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 201580RGS

Nozzle, QC, Project Pro, Yellow

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 201580XGS

Nozzle, QC, Project Pro, Orange
(Superseded to 195983XGS)

$10.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 201580AAGS

Nozzle, QC, Project Pro, Red
(Superseded to 195983AAGS)

$10.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 11

0

900

NSP

ENGINE (121012-0123-E1)

$

$

Not available

Briggs & Stratton 202590GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199462GS

BOTTLE, Concentrate, Hydro Foam

Note: Not Illustrated

$33.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201314GS

AXLE

Note: Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 194256GS

KIT, Tag Warning
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessory Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessory Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessory Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessory Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessory Not Illustrated

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessory Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessory Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessory Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessory Not Illustrated

$12.99

$

In Stock, Qty 20+

0

Briggs & Stratton 6092

WASH, Hydro Foam(TM)

Note: Optional Accessory Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6135

KIT, Hydro Foam(TM) Launcher & Wash

Note: Optional Accessory Not Illustrated

$22.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessory Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessory Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessory Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessory Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessory Not Illustrated

$

$

Not available
