580.752101 (020313-1) - Craftsman 2,700 PSI Pressure Washer Main Unit Parts Diagram

2,700 PSI Pressure Washer

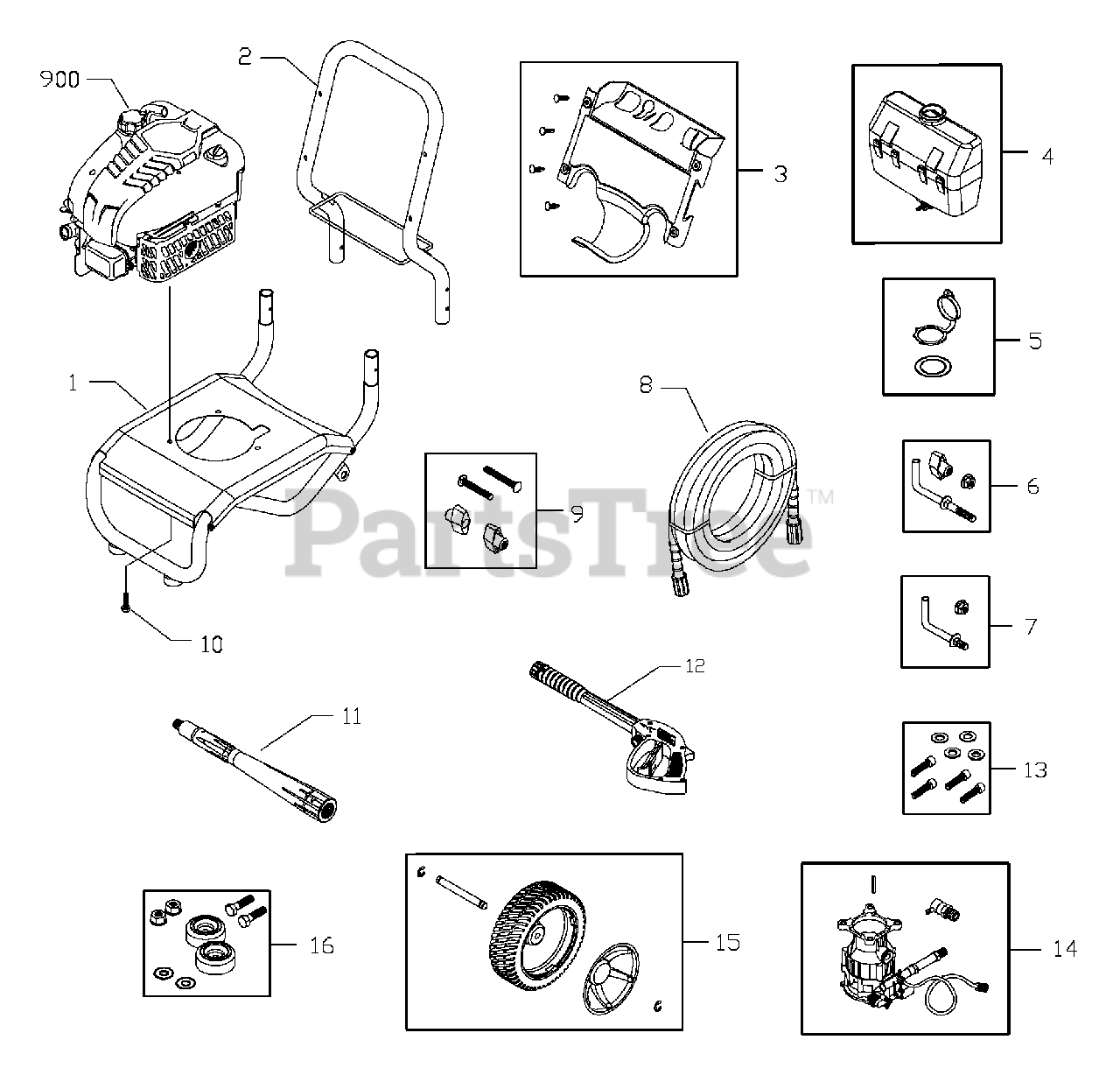

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 203327GS

ASSY, Base

$204.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 204138GS

ASSY, Handle w/Wireform

$90.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 202904GS

KIT, Billboard/Decal with Clips

$58.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clip, Tree

$4.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 199229GS

ASSY, Tank, Chem

$

$

Not available

Briggs & Stratton 192980GS

Kit, Valve

$17.99

$

In Stock, Qty 20+

0

5

Briggs & Stratton 199955GS

KIT, Cap Chem

$6.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 194264GS

KIT, Hook, Handle

$5.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192309GS

KIT, Hook, Base

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 75246GS

HHS, Trilobular, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 201202GS

ASSY, Selection Wand
(Superseded to 315797GS)

$94.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 198164GS

ASSY, Pump
(Superseded to 206376GS)

Note: (see "Pump")

$385.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

Briggs & Stratton 23139DGS

Key

$4.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 202877GS

KIT, Wheel

$44.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 201313GS

Axle

$10.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 202606GS

Hubcap

$15.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

16

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 9

0

900

NSP

ENGINE (12R512-0114-B1)

Note: (see pages 26-29)

$

$

Not available

Briggs & Stratton 282763

COVER, Black

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 202669GS

DECAL, Shroud

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202630GS

DECAL, Recoil

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A1040NGS

HOSE, Chemical, 24"

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203843GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

KIT, Tag Warning w/Clip
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessory, Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessory, Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessory, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessory, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessory, Not Illustrated

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessory, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessory, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessory, Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: Optional Accessory, Not Illustrated

$21.99

$

In Stock, only 1 left!

0

Briggs & Stratton 6092

WASH, Hydro Foam(TM)

Note: Optional Accessory, Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6135

KIT, Hydro Foam(TM) Launcher & Wash

Note: Optional Accessory, Not Illustrated

$22.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessory, Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessory, Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessory, Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessory, Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessory, Not Illustrated

$

$

Not available
