580.752090 (020299-0) - Craftsman 3,400 PSI Pressure Washer Pump Parts Diagram

3,400 PSI Pressure Washer

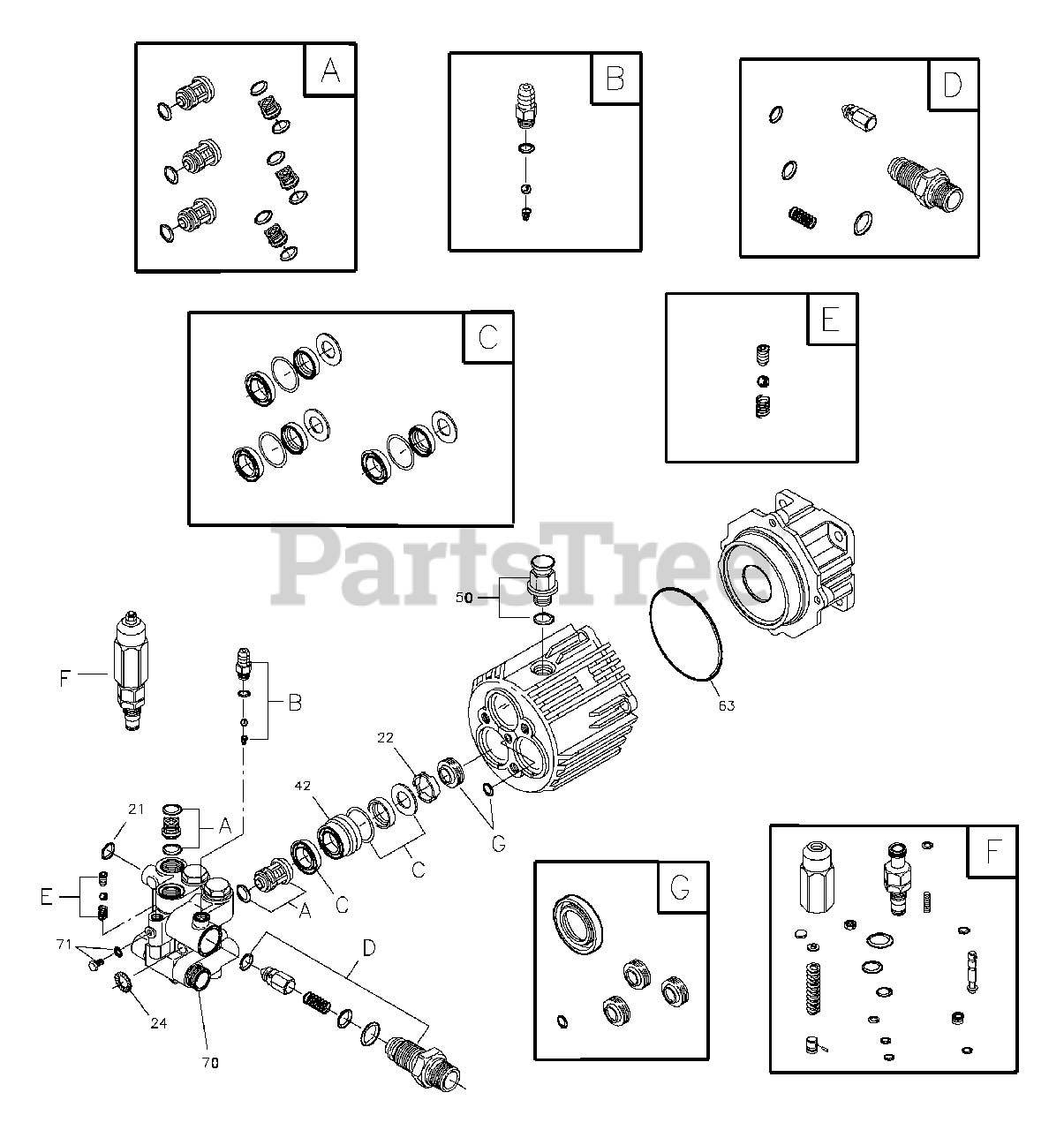

Pump Parts Diagram

  • Title

21

Briggs & Stratton 194434GS

O-RING

$4.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 190639GS

SPACER

$5.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 190640GS

WASHER

$4.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 190646GS

PISTON, Guide

$39.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 198160GS

VENT CAP, with O-Ring

$9.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 194435GS

O-RING

$7.99

$

In Stock, only 1 left!

0

70

Briggs & Stratton 190654GS

PUMP HEAD

$296.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 190655GS

GRUB SCREW & WASHER

$7.99

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 190657GS

KIT, CHECK VALVE

Note: Service kits and include all parts shown within the box.

$97.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 192914GS

KIT, CHEMICAL INJECT

Note: Service kits and include all parts shown within the box.

$24.99

$

In Stock, only 1 left!

0

C

Briggs & Stratton 190660GS

KIT, SEAL WATER

Note: Service kits and include all parts shown within the box.

$113.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 194426GS

KIT, INJECTOR

Note: Service kits and include all parts shown within the box.

$110.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 194427GS

KIT, BALL & SPRING

Note: Service kits and include all parts shown within the box.

$9.49

$

In Stock, only 2 left!

0

F

Briggs & Stratton 193126GS

KIT, UNLOADER

Note: Service kits and include all parts shown within the box.

$152.99

$

Usually ships in 2-12 days

0

G

Briggs & Stratton 194425GS

KIT, SEAL OIL

Note: Service kits and include all parts shown within the box.

$59.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B2384GS

FILTER, INLET

Note: Not Illustrated

$4.49

$

In Stock, Qty 15

0

Briggs & Stratton 190656GS

OIL BOTTLE

Note: Optional Accessories, Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 186452GS

FILTER, INLET, BAG OF 10

Note: Optional Accessories, Not Illustrated

$97.99

$

Usually ships in 2-12 days

0
