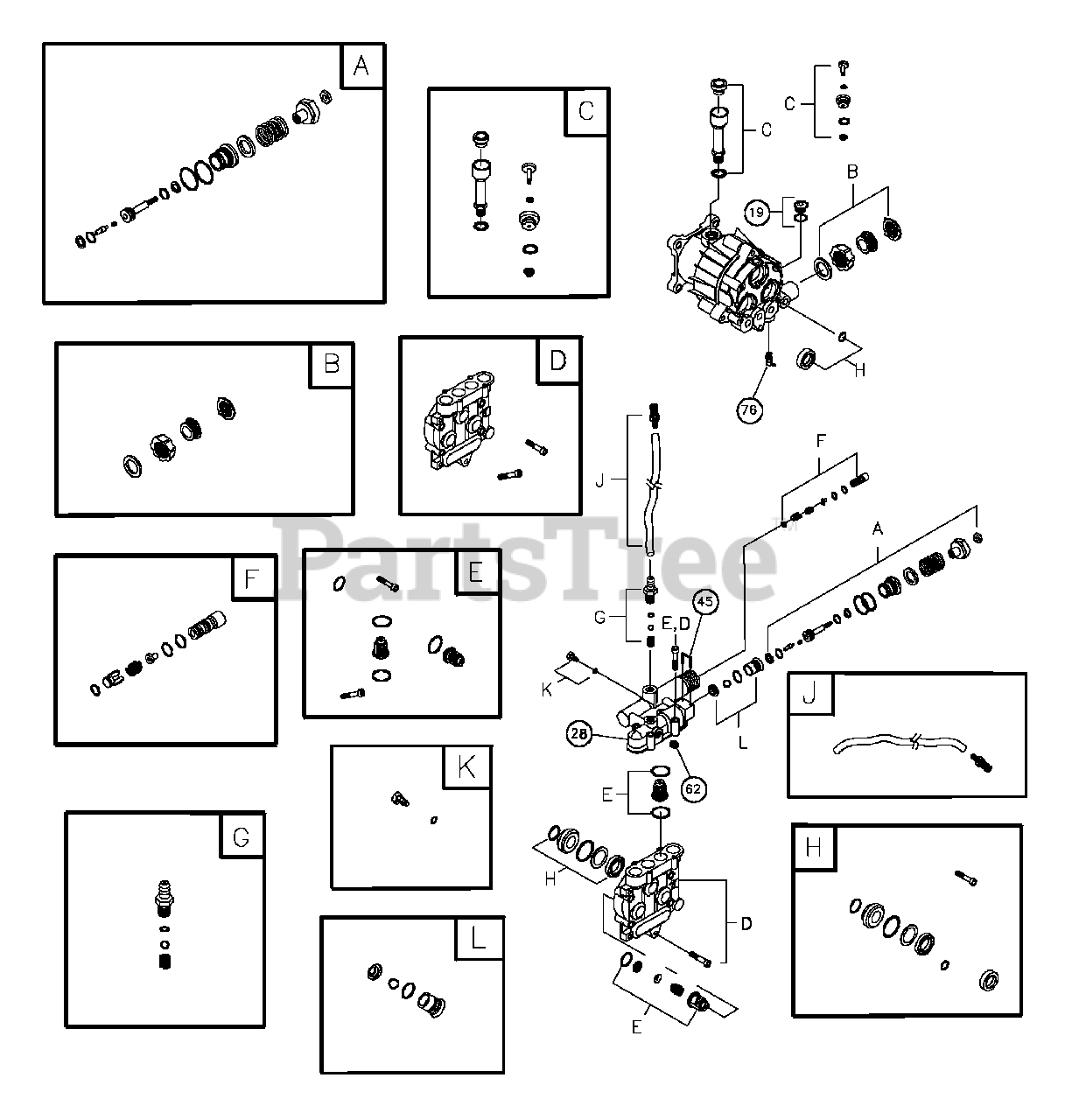

580.752080 (020315-0) - Craftsman 3,100 PSI Pressure Washer Pump Parts Diagram

3,100 PSI Pressure Washer

Pump Parts Diagram

  • Title

19

Briggs & Stratton 190571GS

CAP, Oil

$

$

Not available

28

Briggs & Stratton 198102GS

MANIFOLD
(Superseded to 190673GS)

$

$

Not available

45

Briggs & Stratton 190578GS

PIN

$

$

Not available

62

Briggs & Stratton 190581GS

CAP, 1/8

$7.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 194298GS

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

A

Briggs & Stratton 190594GS

KIT, UNLOADER

Note: Service kit include all parts shown within the box.

$

$

Not available

B

Briggs & Stratton 190670GS

KIT, WATER INLET

Note: Service kit include all parts shown within the box.

$40.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 190669GS

KIT, BREATHER TUBE

Note: Service kit include all parts shown within the box.

$47.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 193808GS

KIT, HEAD BRASS

Note: Service kit include all parts shown within the box.

$

$

Not available

E

Briggs & Stratton 193806GS

KIT, CHECK VALVES

Note: Service kit include all parts shown within the box.

$

$

Not available

F

Briggs & Stratton 190592GS

KIT, INLET CHECK

Note: Service kit include all parts shown within the box.

$20.99

$

In Stock, Qty 6

0

G

Briggs & Stratton 190593GS

KIT, CHEMICAL INJECTION

Note: Service kit include all parts shown within the box.

$

$

Not available

H

Briggs & Stratton 193807GS

KIT, SEAL SET

Note: Service kit include all parts shown within the box.

$

$

Not available

J

Briggs & Stratton 189971GS

KIT, CHEMICAL HOSE

Note: Service kit include all parts shown within the box.

$

$

Not available

K

Briggs & Stratton 193971GS

KIT, PIPE FITTING

Note: Service kit include all parts shown within the box.

$7.99

$

Usually ships in 2-12 days

0

L

Briggs & Stratton 193972GS

KIT, UNLOADER SEAT

Note: Service kit include all parts shown within the box.

$62.99

$

In Stock, only 1 left!

0

Briggs & Stratton 190585GS

OIL BOTTLE

Note: Not Illustrated

$15.99

$

In Stock, only 3 left!

0

Briggs & Stratton B2384GS

FILTER, Inlet

Note: Not Illustrated

$4.49

$

In Stock, Qty 15

0

Briggs & Stratton 186452GS

FILTER, Inlet, Bag of 10

Note: Optional Accessory

$97.99

$

Usually ships in 2-12 days

0
