580.751781 (9898-1) - Craftsman 2,500 PSI Pressure Washer Repair Parts Drawing Number 97023 Parts Diagram

2,500 PSI Pressure Washer

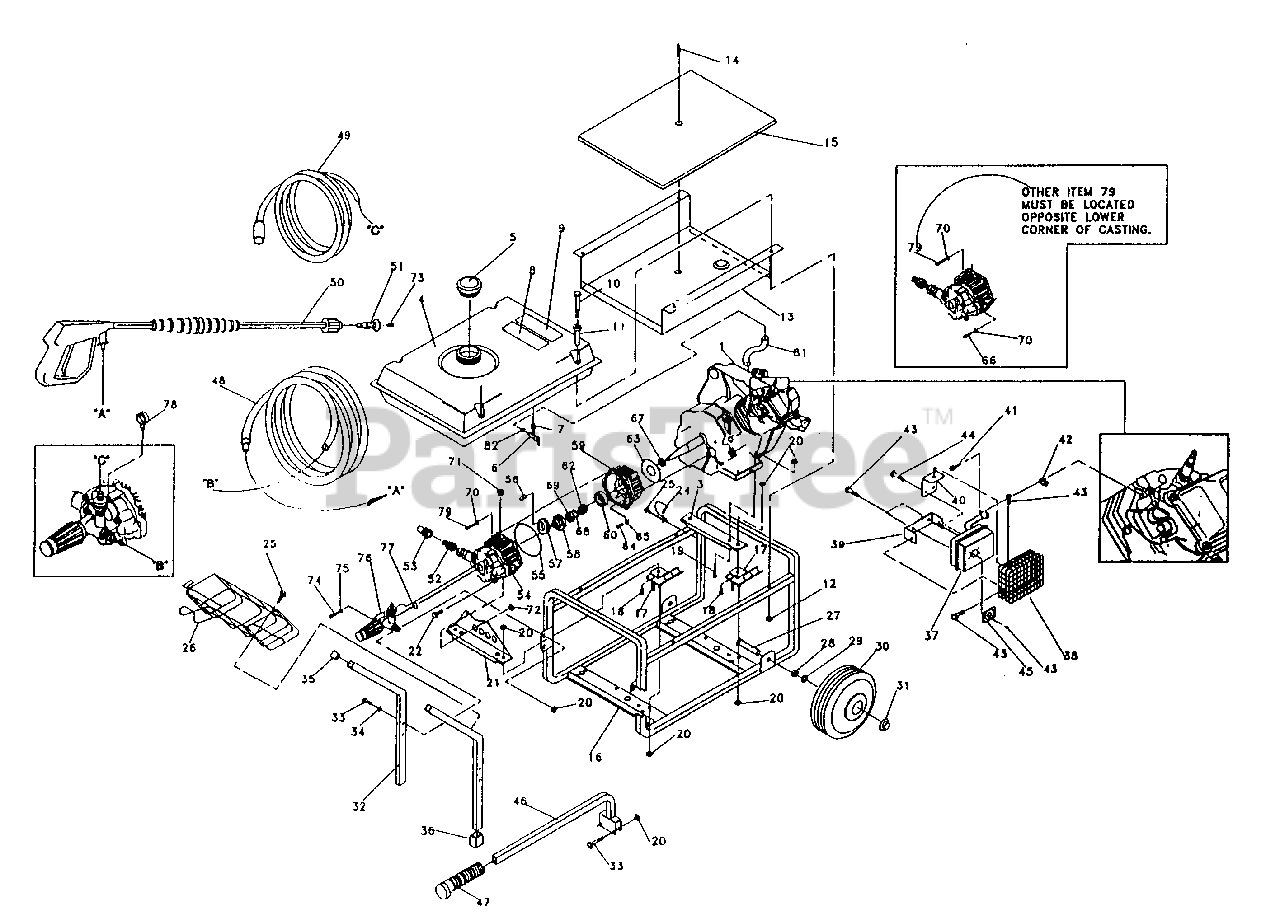

Repair Parts Drawing Number 97023 Parts Diagram

  • Title

1

Briggs & Stratton 90508

7.8 HP Engine

$1.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 84021

Engine Support
(Superseded to B84021GS)

$20.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 88325

Fuel Tank
(Superseded to 195617GS)

$

$

Not available

5

Briggs & Stratton 90878

Fuel Cap
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

6

Briggs & Stratton 78298

Tank Valve
(Superseded to 7078298YP)

$192.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 96404

Starting Instructions Decal

$

$

Currently unavailable

9

Briggs & Stratton 96405

Danger Decal

$

$

Not available

10

Briggs & Stratton 788318

M6-1.0 x 60mm Capscrew

$

$

Currently unavailable

11

Briggs & Stratton 83465

Tank Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 77395

M6 Flange Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 87840

Tank Heat Shield
(Superseded to 87840GS)

$47.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 85000

Insulation Clip
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84687

#2-1/4" thick Insulation
(Superseded to 84687GS)

$22.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 95203

Cradle
(Superseded to 95203GS)

$264.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84508

45-degree Vibration Mount
(Superseded to 84508GS)

$22.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 70644

M8-1.25 x 20mm Screw
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84346

M8-1.25 x 35mm Capscrew
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 52858

M8-1.25 Flange Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 95635

Pump Support Bracket

$

$

Currently unavailable

22

Briggs & Stratton 38750

M6-1.0 x 30mm Capscrew
(Superseded to 38750GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 87985

Rear Wand Holder
(Superseded to 87985GS)

$9.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 86292

#10-16 Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 87836

Wire Basket

$

$

Not available

27

Briggs & Stratton 93728A

Axle Pin
(Superseded to 93728AGS)

$5.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 94222Q

5/8" JAM Nut
(Superseded to 94222QGS)

$3.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 49808

M12 Flat Washer
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 88521

Wheel Assembly
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 75402

1/2" Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

32

Briggs & Stratton 95189

Support Leg
(Superseded to 95189GS)

$47.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 39287

M8-1.25 x 45mm Capscrew
(Superseded to 39287GS)

$3.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 50190

5/16" Flat Washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 46476

1" square Cap Plug
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 94135

Rubber Foot Pad
(Superseded to 692328)

$7.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 88688

Muffler Assembly
(Superseded to 195002GS)

$86.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 89712

Wire Muffler Guard

$

$

Currently unavailable

39

Briggs & Stratton 90300

Muffler Support Bracket
(Superseded to 90300GS)

$11.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 92535

Muffler Support Bracket

$

$

Currently unavailable

41

Briggs & Stratton 40976

M8-1.25 x 20mm Capscrew

$

$

Not available

42

Briggs & Stratton 80314

Exhaust Gasket
(Superseded to 80314GS)

$9.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 90299

M5 x 10mm Screw

$

$

Not available

44

Briggs & Stratton 56893

#10-24 Crimptite Screw
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

45

Briggs & Stratton 83083

Spark Arrestor Screen
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

46

Briggs & Stratton 95194

Guide Handle

$

$

Not available

47

Briggs & Stratton 77584

Handle Grip
(Superseded to 77584GS)

$5.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 89634

3/8" I.D. Hose Assembly

$

$

Currently unavailable

49

Briggs & Stratton 96168

Chemical Injector Hose Assembly
(Superseded to 96168GS)

$11.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 95567

Gun Assembly
(Superseded to 95567GS)

$115.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 95587B

Adjustable Nozzle
(Superseded to 95587BGS)

$44.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 95456

Quick-Connect, male
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

53

Briggs & Stratton 96016

Quick-Connect, female
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 95319C

Pump Head Assembly

$

$

Currently unavailable

55

Briggs & Stratton 93790

O-ring 2.62 x 113.97
(Superseded to 93790GS)

$6.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 94944

Piston Pivot Shoe
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 96542

Roller Thrust Bearing
(Superseded to 96542GS)

$100.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 96865

3.0 GPM Axial Cam

$

$

Currently unavailable

59

Briggs & Stratton 96430A

Engine Adaptor
(Superseded to 96430AGS)

$70.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 96542

Roller Thrust Bearing
(Superseded to 96542GS)

$100.99

$

In Stock, only 1 left!

0

62

Briggs & Stratton 95165

Engine Shaft Adaptor
(Superseded to 95165GS)

$30.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 93871

Engine Adaptor Gasket
(Superseded to 93871GS)

$3.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 23707

5/16"-24 x 1" Capscrew
(Superseded to 23707GS)

$3.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 92479

M8 Ribbed Lock Washer
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 40945

M6-1.0 x 20mm Screw
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

67

Briggs & Stratton 95441

Engine Adaptor Sleeve
(Superseded to 95441GS)

$8.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 94738

Belleville Washer
(Superseded to 94738GS)

$12.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 93887

M16-1.5 JAM Nut

$

$

Not available

70

Briggs & Stratton 93873

M6 Ribbed Lock Washer

$4.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton S5454

Oil Fill Cap/Breather

$

$

Currently unavailable

72

Briggs & Stratton 52857

M6-1.0 Locking Flange Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 92659

Replacement Nozzle (red)
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

74

Briggs & Stratton 40945

M6-1.0 x 20mm Capscrew
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

75

Briggs & Stratton 93873

M6 Ribbed Lock Washer

$4.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 96581F

Preset Unloader Assembly

$

$

Currently unavailable

77

Briggs & Stratton 93723

Spindle Seat O-ring
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

78

Briggs & Stratton 94197

Pressure Gauge
(Superseded to 94197GS)

Note: (Optional)

$54.99

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 51767

M6-1.0 x 45mm Capscrew
(Superseded to 51767GS)

$3.49

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 82580A

Hose

$

$

Not available

82

Briggs & Stratton 48031G

3/16" Hose Clamp
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 97019

Owner's Manual
(Superseded to 97019GS)

Note: (Not shown)

$14.99

$

Usually ships in 2-12 days

0
