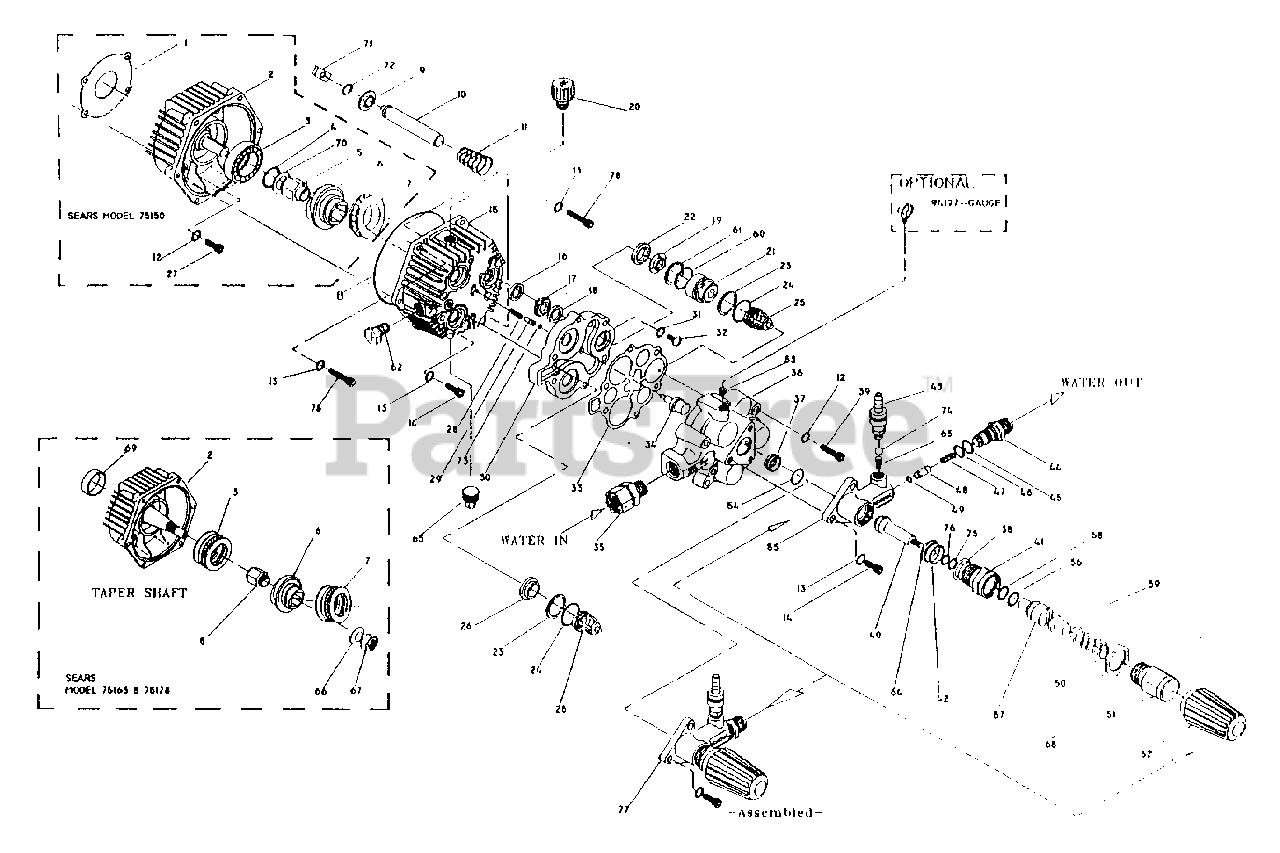

580.751651 (9897-1) - Craftsman 2,200 PSI Pressure Washer Pressure Pump (10/95) Parts Diagram

2,200 PSI Pressure Washer

Pressure Pump (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 93871

Engine Adaptor Gasket
(Superseded to 93871GS)

$3.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 96430A

Engine Adaptor
(Superseded to 96430AGS)

$70.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 93869

Thrust Ball Bearing
(Superseded to 93869GS)

$47.99

$

Usually ships in 2-12 days

0

4

UNKNOWN

$

$

Not available

5

Briggs & Stratton 95165

Engine Adaptor
(Superseded to 95165GS)

$30.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 96865

Axial Cam

$

$

Currently unavailable

7

Briggs & Stratton 96542

Thrust Roller Bearing
(Superseded to 96542GS)

$100.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 93790

114 x 119 x 2.6 O-ring
(Superseded to 93790GS)

$6.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 95386

Piston Spring Retainer
(Superseded to 95386GS)

$1.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 95217

Piston, D15 S.S.

$

$

Currently unavailable

11

Briggs & Stratton 96400

Piston Return Spring
(Superseded to 96400GS)

$

$

Not available

12

Briggs & Stratton 92479

M8 Ribbed Lock Washer
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93873

M6 Ribbed Lock Washer

$4.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 40945

M6 x 1.0 x 20mm Capscrew
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94404

Aluminum Crankcase
(Superseded to 691664)

$4.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 93680

Piston Oil Seal
(Superseded to 93680GS)

$7.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 93668

Pilot Spacer
(Superseded to 93668GS)

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 93667

Seal
(Superseded to 93667GS)

$9.99

$

In Stock, Qty 10

0

19

Briggs & Stratton 96015

Bearing Ring Seal
(Superseded to 96015GS)

$3.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 95454

Oil Filter Breather

$

$

Currently unavailable

21

Briggs & Stratton 95895

High Pressure Port Tower
(Superseded to 95895GS)

$23.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 96053

High Pressure Seal (black)
(Superseded to 96053GS)

$

$

Not available

23

Briggs & Stratton 95504

Back-up Ring
(Superseded to 95504GS)

$

$

Not available

24

Briggs & Stratton 95503

O-Ring 2.62 x 17.12mm
(Superseded to 95503GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 96005

Valve Check Kit
(Superseded to 96005GS)

$34.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 95896

Check Valve Seat Support

$

$

Not available

27

Briggs & Stratton 23707

5/16"-24 x 1" Bolt
(Superseded to 23707GS)

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 93652

Thermal By-pass Spring
(Superseded to 93652GS)

$6.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 95416

By-pass Piston
(Superseded to 95416GS)

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 94402

Spacer Plate

$

$

Currently unavailable

31

Briggs & Stratton 93673

O-ring 4.5 x 8 x 1.8
(Superseded to 93673GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 93678

M5-0.8 x 20 Truss Head Bolt
(Superseded to 93678GS)

$2.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 93645

Head Gasket

$

$

Currently unavailable

34

Briggs & Stratton 93644

Thermal By-pass Actuator
(Superseded to 93644GS)

$24.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 95320

Garden Hose Connector
(Superseded to 95320GS)

$42.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 95138

Cylinder Head

$

$

Not available

37

Briggs & Stratton 95382

Spindle Seat
(Superseded to 95382GS)

$6.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton 93722

O-Ring, 0.68 X 0.81 x 0.06
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

39

Briggs & Stratton 93874

M8-1.25 x 75mm Capscrew
(Superseded to 690346)

$7.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 95373

Unloader Assembly Spindle
(Superseded to 95373GS)

$5.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 95367

Unloader Piston Guide
(Superseded to 95367GS)

$30.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 95372

O-ring 1.78 x 14mm
(Superseded to 95372GS)

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 95378

Chemical Injector Fitting
(Superseded to 95378GS)

$22.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 95377

High Pressure Outlet Adaptor
(Superseded to 95377GS)

$18.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 93788

O-ring 1.78 x 12.4mm
(Superseded to 93788GS)

$30.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 93787

O-ring 1.78 x 15.6mm
(Superseded to 93787GS)

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 95376

Spring
(Superseded to 95376GS)

$2.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 95374

High Pressure Outlet Piston

$

$

Not available

49

Briggs & Stratton 95375

O-ring, #2.4 x 4.3
(Superseded to 95375GS)

$4.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 95384

Pressure Adjust Spring

$

$

Not available

51

Briggs & Stratton 95364B

Pressure Adjust Adaptor with groove
(Superseded to 95364BGS)

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 95381B

Pressure Adjust Handle (red)
(Superseded to 95381BGS)

$6.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 96137

1/8" NPT Pipe Plug
(Superseded to 96137GS)

$

$

Not available

54

Briggs & Stratton 93723

"O" Ring 2.6 x 20.2
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

55

Briggs & Stratton 95216

Pressure Relief Valve Body

$

$

Currently unavailable

56

Briggs & Stratton 95369

Back-up O-ring 1.1 x 12 4
(Superseded to 95369GS)

$3.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 95368

Unloader Piston

$

$

Currently unavailable

58

Briggs & Stratton 95370

O-ring 1.78 x 7 65
(Superseded to 95370GS)

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 95363

Spring Support
(Superseded to 95363GS)

$5.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 96069

Quad-Ring 0.09 x 1.06"
(Superseded to 96069GS)

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95506

Back-up Ring
(Superseded to 95506GS)

$2.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 95453

Sight Gauge Assembly
(Superseded to 95453GS)

Note: Contact Generac For Quantity Required.

$11.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 57163

3/8" NPT Magnetic Plug
(Superseded to 57163GS)

$8.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 95371

Piston Support O-ring
(Superseded to 95371GS)

$6.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 95380

Chemical Injector Spring
(Superseded to 95380GS)

$

$

Not available

66

Briggs & Stratton 94738

Belleville Washer
(Superseded to 94738GS)

$12.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 93887

M16-1.6 JAM Nut

$

$

Not available

68

Briggs & Stratton 95366

M18 x 1.0 Nut
(Superseded to 95366GS)

$17.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 95441

Engine Adaptor Sleeve
(Superseded to 95441GS)

$8.49

$

Usually ships in 2-12 days

0

70

UNKNOWN

$

$

Not available

71

Briggs & Stratton 94944

Piston Pivot Shoe
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 94284

"C" Ring Retainer

$

$

Currently unavailable

73

Briggs & Stratton 93876

O-Ring, 0.12 x 0.25 x 0.6
(Superseded to 690312)

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 95379

Ball

$

$

Not available

75

Briggs & Stratton 93656

O-Ring 1.78 x 6.07
(Superseded to 691120)

$12.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 93657

Back-up Ring 1.24 x 6.7
(Superseded to 93657GS)

$2.49

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 95212B

Unloader Assembly

$

$

Not available

78

Briggs & Stratton 51767

M6-1.0 x 45mm Capscrew
(Superseded to 51767GS)

$3.49

$

Usually ships in 2-12 days

0
