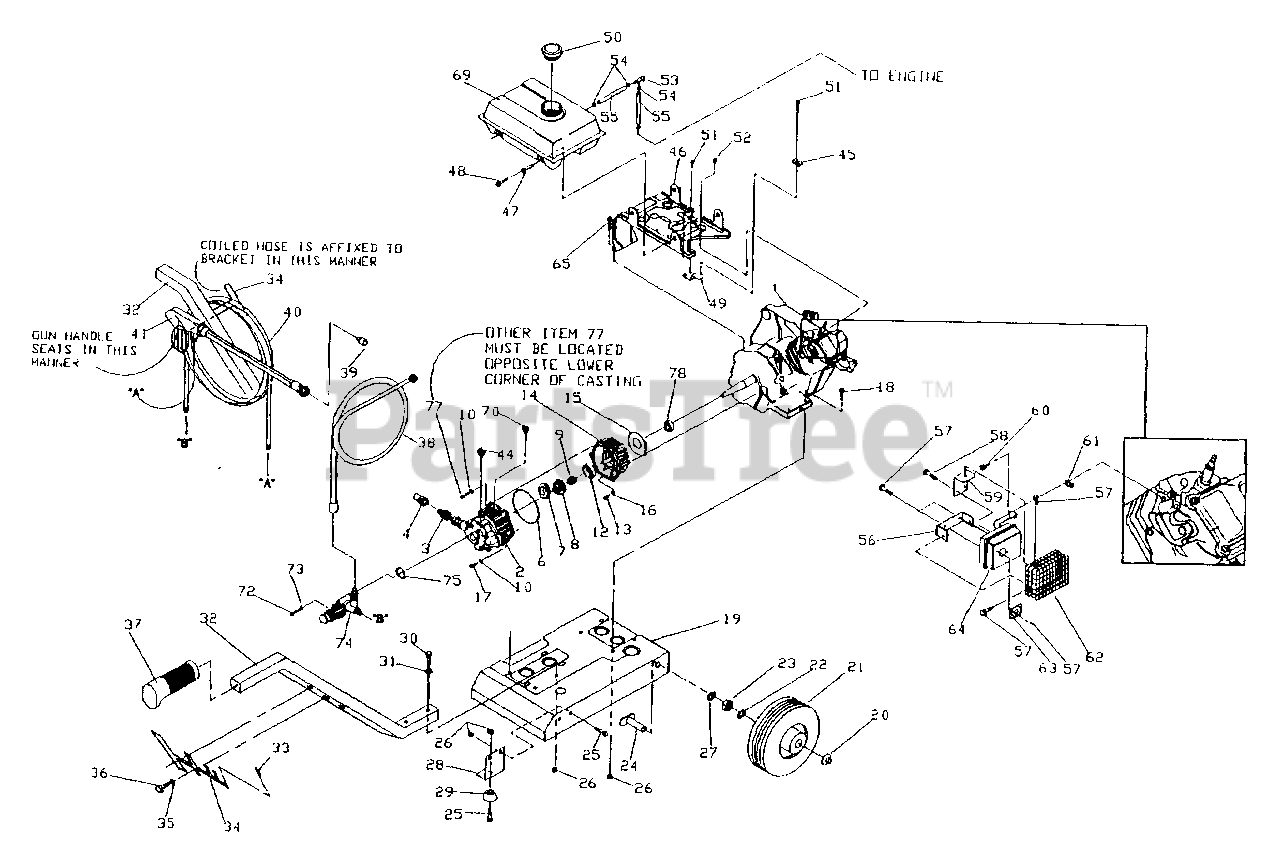

580.751650 (9897-0) - Craftsman 2,200 PSI Pressure Washer General Assembly (10/95) Parts Diagram

2,200 PSI Pressure Washer

General Assembly (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 90507

6 5 HP Engine with 70mm piston

$

$

Not available

1

Briggs & Stratton 90508

6.5 HP Engine with 75mm piston

$1.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 95319C

3.0 Gpm Pump

$

$

Currently unavailable

3

Briggs & Stratton 95456

Quick-connect, Male
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 96016

Quick-connect, Female
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 94944

Piston Pivot Shoe
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 93790

O-ring, 2.6 x 114
(Superseded to 93790GS)

$6.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 96542

Rolling Thrust Bearing
(Superseded to 96542GS)

$100.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96439

3.0 GPM Axial Cam

$

$

Currently unavailable

9

Briggs & Stratton 95165

Engine Adaptor Shaft
(Superseded to 95165GS)

$30.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 93873

M6 Ribbed Lock Washer

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 95963

Front Gun Bracket

$

$

Not available

12

Briggs & Stratton 93869

Ball Thrust Bearing
(Superseded to 93869GS)

$47.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 23707

5/16"-24 x 1" Bolt
(Superseded to 23707GS)

$3.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 96430A

Engine Adaptor
(Superseded to 96430AGS)

$70.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 93871

Engine Adaptor Gasket
(Superseded to 93871GS)

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 92479

M8 Ribbed Lock Washer
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 40945

M6-1.0 x 20mm Capscrew
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

18

Briggs & Stratton 39414

M8-1.25 x 35mm Capscrew
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 95902

Mounting Base

$

$

Not available

20

Briggs & Stratton 75402

1/2" Dia. Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

21

Briggs & Stratton 88521

2-1/4" x 4" Wheel
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 49808

M12 Flat Washer
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 25391

Jam Nut
(Superseded to 5025391)

$4.49

$

In Stock, Qty 20+

0

24

Briggs & Stratton 93728A

Axle Pin
(Superseded to 93728AGS)

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 39253

M8-1-25 x 20mm. Capscrew
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

26

Briggs & Stratton 52858

MB-1.25 Flange Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 79246

5/8" Lock Washer

$

$

Not available

28

Briggs & Stratton 92339

Support Leg
(Superseded to 92339GS)

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 87841

Shock Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 57821

M8-1.25 x 40mm Screw

$

$

Not available

31

Briggs & Stratton 50190

M8 x 25 Flat Washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 91093

Guide Handle
(Superseded to 91093GS)

$60.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 92067

Vinyl Cap

$3.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 95908

Gun And Hose Holder
(Superseded to 95908GS)

$31.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 96633

#10 Flat Washer

$

$

Not available

36

Briggs & Stratton 86292

#10 Self-drilling Screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 77584

Handle Grip
(Superseded to 77584GS)

$5.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 96168

Chemical Injector Hose
(Superseded to 96168GS)

$11.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 95587A

Adjustable Nozzle
(Superseded to 95587AGS)

$34.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 91630

3/8" x 25 Ft. Hose Assembly

$

$

Not available

41

Briggs & Stratton 95567

Gun And Wand Assembly
(Superseded to 95567GS)

$115.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 94197

Pressure Gauge
(Superseded to 94197GS)

Note: (Optional)

$54.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 65852

Spring Clip
(Superseded to 65852GS)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 95214

Cradle

$

$

Currently unavailable

47

Briggs & Stratton 96002

Tank Bushing
(Superseded to 96002GS)

$5.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 96001

M6-1.0 x 21 mm Bolt

$

$

Not available

49

Briggs & Stratton 95963

Front Gun Bracket

$

$

Not available

50

Briggs & Stratton 90878

Fuel Cap
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

51

Briggs & Stratton 45764

M4-0.7 x 8mm Taptite Screw
(Superseded to 45764GS)

$3.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 52857

M6-1.0 Locking Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 96193

Fuel Shut-off Valve
(Superseded to 698181)

$11.99

$

In Stock, Qty 20+

0

54

Briggs & Stratton 48031C

Hose Clamp

$

$

Not available

55

Briggs & Stratton 30340

1/4" I.D Fuel Hose

$3155.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 90300

Muffler Support Bracket
(Superseded to 90300GS)

$11.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 90299

M5 x 10mm Screw

$

$

Not available

58

Briggs & Stratton 56893

#10-24 Screw
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 92535

Muffler Support Bracket

$

$

Currently unavailable

60

Briggs & Stratton 40976

M8 x 20mm Screw

$

$

Not available

61

Briggs & Stratton 80314

Exhaust Gasket
(Superseded to 80314GS)

$9.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 89712

Muffler Guard

$

$

Currently unavailable

63

Briggs & Stratton 83083

Spark Arrestor Screen
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

64

Briggs & Stratton 88688

Muffler Assembly
(Superseded to 195002GS)

$86.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 83512

M8-1.25 x 15mm Screw
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 93887

M16 x 1.5 JAM Nut

$

$

Not available

68

Briggs & Stratton 94738

Bellville Washer
(Superseded to 94738GS)

$12.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 94994

Fuel Tank
(Superseded to 94994GS)

$

$

Not available

70

Briggs & Stratton 95454

Oil Cap/breather

$

$

Currently unavailable

72

Briggs & Stratton 40945

M6-1.0 x 20mm Capscrew
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

73

Briggs & Stratton 93873

M6 Ribbed Lock Washer

$4.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 96581E

Unloader Assembly

$

$

Currently unavailable

75

Briggs & Stratton 93723

Spindle Seat "C" Ring
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

76

Briggs & Stratton 92661

Nozzle (mv Blue)
(Superseded to 92661GS)

$9.49

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 51767

M6 x 1 x 45mm Capscrew
(Superseded to 51767GS)

$3.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 95441

M6 x 1 45mm Capscrew
(Superseded to 95441GS)

$8.49

$

Usually ships in 2-12 days

0
