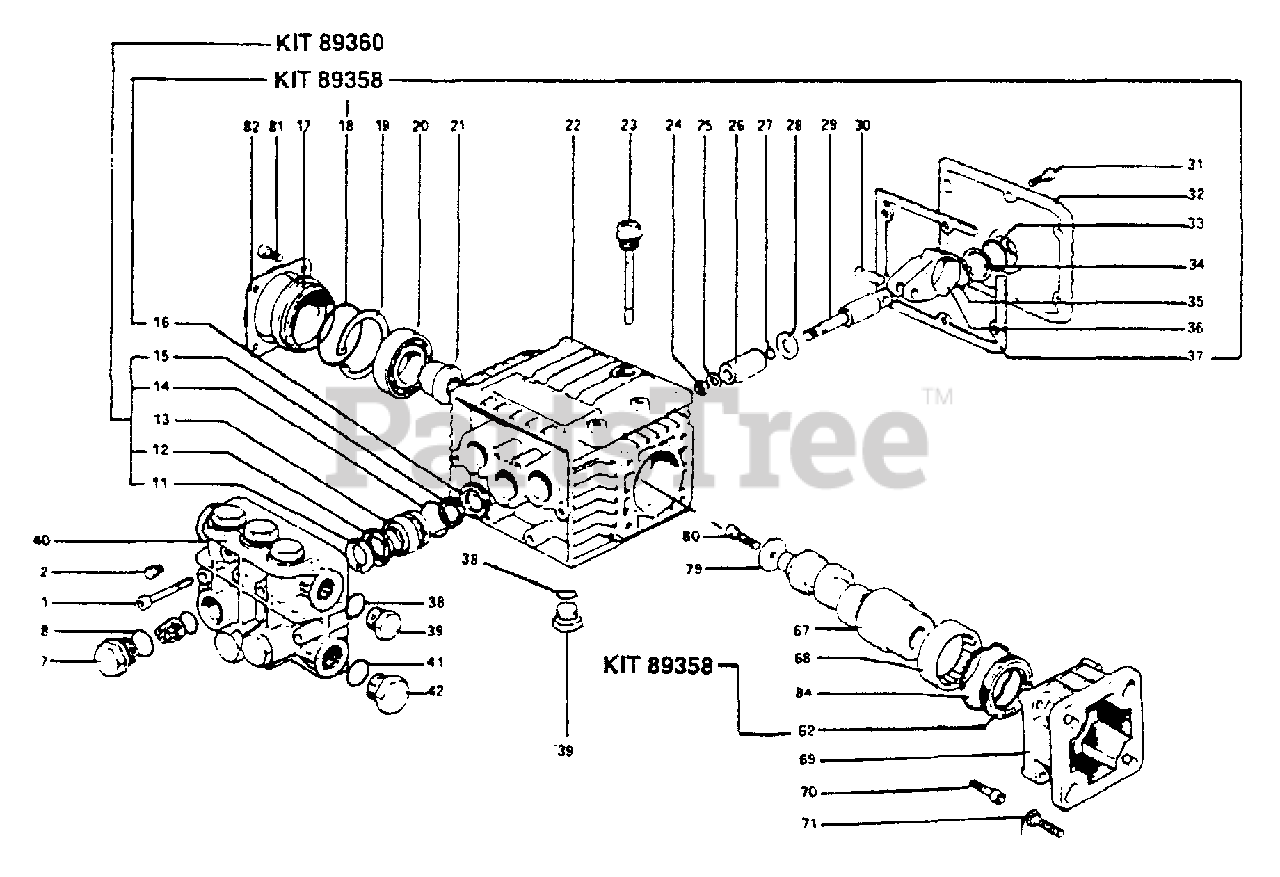

580.751510 (0457-0) - Craftsman 1,800 PSI Pressure Washer High Pressure Pump (10/95) Parts Diagram

1,800 PSI Pressure Washer

High Pressure Pump (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 96742

M6 x 60mm Head Bolt

$

$

Currently unavailable

2

1/8" Plug

Note: [Optional]

$

$

Not available

7

Inlet/outlet Valve Cap

$

$

Not available

8

Valve Cap O-ring

$

$

Not available

9

Inlet/outlet Valve

$

$

Not available

10

Inlet/outlet Valve O-ring

$

$

Not available

89360

Briggs & Stratton 89360

Water Seals - XTV Pump

$

$

Not available

11

Briggs & Stratton 89360

Water Seal

$

$

Not available

12

Briggs & Stratton 89360

Water Seal

$

$

Not available

13

Briggs & Stratton 89360

Piston Guide

$

$

Not available

14

Briggs & Stratton 89360

O-ring

$

$

Not available

15

Briggs & Stratton 89360

Water Seal

$

$

Not available

89358

Briggs & Stratton 89358

Oil Seal Kit - XTV Pump
(Superseded to 89358GS)

$94.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 89358

Oil Seal
(Superseded to 89358GS)

$94.99

$

Usually ships in 2-12 days

0

17

Crankshaft Bearing End Cap

$

$

Not available

18

Briggs & Stratton 89358

O-ring
(Superseded to 89358GS)

$94.99

$

Usually ships in 2-12 days

0

19

Snap Ring

$

$

Not available

20

Crankshaft Bearing

$

$

Not available

21

Crankshaft Spacer

$

$

Not available

22

Briggs & Stratton 96743

Pump Body

$

$

Currently unavailable

23

Briggs & Stratton 94505

Oil Dipstick

$4.99

$

Usually ships in 2-12 days

0

24

M8 Nut

$

$

Not available

25

M8 Washer

$

$

Not available

26

Piston

$

$

Not available

27

O-ring

$

$

Not available

28

Spacer

$

$

Not available

29

Connecting Rod

$

$

Not available

30

Pin

$

$

Not available

31

M5 x 20mm Cover Screw

$

$

Not available

32

Cover

$

$

Not available

33

O-ring

$

$

Not available

34

Seal

$

$

Not available

35

Seal

$

$

Not available

36

Connecting Rod Cap

$

$

Not available

37

Briggs & Stratton 89358

Cover Gasket
(Superseded to 89358GS)

$94.99

$

Usually ships in 2-12 days

0

38

O-ring

$

$

Not available

39

Drain Plug

$

$

Not available

40

Pump Head

$

$

Not available

41

O-ring

$

$

Not available

42

Cap

$

$

Not available

62

Briggs & Stratton 89358

Seal
(Superseded to 89358GS)

$94.99

$

Usually ships in 2-12 days

0

67

Crankshaft

$

$

Not available

68

Bearing

$

$

Not available

69

Pump Mounting Flange

$

$

Not available

70

M6 x 16mm Flanged Bolts

$

$

Not available

71

5/16" - 24 x 3/4" Bolts

$

$

Not available

79

Spacer

$

$

Not available

80

M6 x 25mm Screw

$

$

Not available

81

M6 x 12mm Screw

$

$

Not available

82

Cover

$

$

Not available

84

Retaining Ring

$

$

Not available
