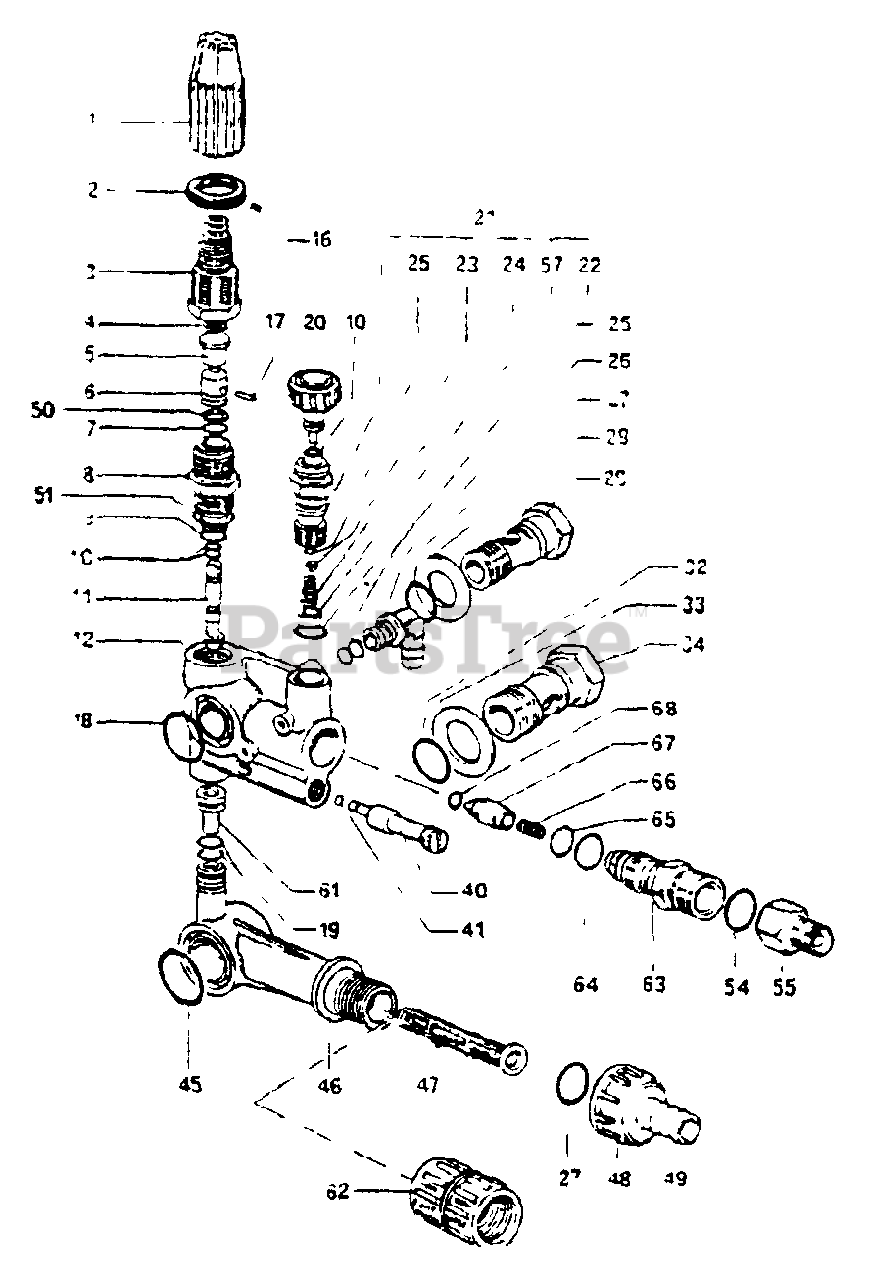

580.751510 (0457-0) - Craftsman 1,800 PSI Pressure Washer 1800 PSI High Pressure Washer (10/95) Parts Diagram

1,800 PSI Pressure Washer

1800 PSI High Pressure Washer (10/95) Parts Diagram

  • Title
1

Briggs & Stratton 96737

Pressure Regulator Knob
(Superseded to 96737GS)

$11.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 96738

Ring Nut
(Superseded to 96738GS)

$11.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96739

Spring Guide
(Superseded to 96739GS)

$45.99

$

Usually ships in 2-12 days

0

4

-----

Spring

$

$

Not available

5

-----

Plate

$

$

Not available

6

-----

Upper Piston

$

$

Not available

7

-----

O-ring

$

$

Not available

8

-----

Piston Guide

$

$

Not available

9

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

11

-----

Lower Piston

$

$

Not available

12

-----

Combiset Body

$

$

Not available

16

Briggs & Stratton 96740

Set Screw
(Superseded to 96740GS)

$3.49

$

Usually ships in 2-12 days

0

17

-----

Pin

$

$

Not available

18

-----

O-ring

$

$

Not available

19

-----

O-ring

$

$

Not available

20

Briggs & Stratton 96741

Knob
(Superseded to 96741GS)

$13.99

$

Usually ships in 2-12 days

0

21

-----

Detergent Check Valve

$

$

Not available

22

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 89361

Stainless Steel Ball
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 89361

Valve Spring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

26

-----

Detergent Fitting

$

$

Not available

27

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

28

-----

Washer

$

$

Not available

29

Briggs & Stratton 89361

3/8" Fitting
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

33

-----

Washer

$

$

Not available

34

-----

1/2" Fitting

$

$

Not available

40

-----

Pin

$

$

Not available

41

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

46

-----

Suction Connector

$

$

Not available

47

Briggs & Stratton 89361

Inlet Filter
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

48

-----

Hose Connector

$

$

Not available

49

-----

Hose Connector

$

$

Not available

50

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

54

-----

O-ring

$

$

Not available

55

Briggs & Stratton 89361

Outlet Connector
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 89361

Gauge Valve
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 89361

Valve Seat
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 89361

Connector
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

63

-----

Detergent Injector

$

$

Not available

64

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 89361

O-ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

66

-----

Spring

$

$

Not available

67

-----

Trap Valve

$

$

Not available

68

-----

O-ring

$

$

Not available
