580.751330 (9908-0) - Craftsman 1,100 PSI Pressure Washer Pump Parts Diagram

1,100 PSI Pressure Washer

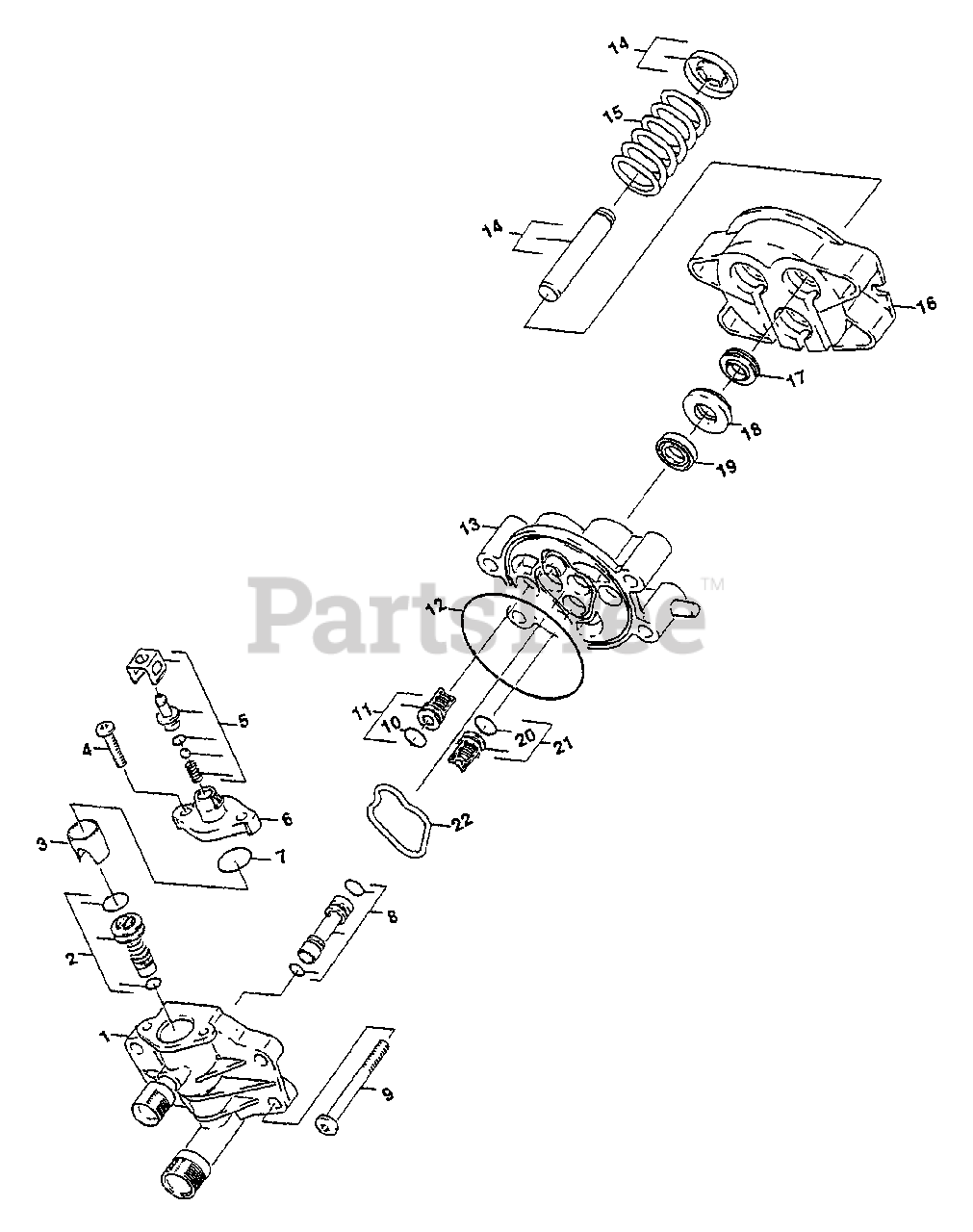

Pump Parts Diagram

  • Title

1

Briggs & Stratton 196160

HOUSING

$

$

Currently unavailable

2

SPILL VALVE

$

$

Not available

3

SLEEVE

$

$

Not available

4

Briggs & Stratton 96161

SELF TAPPING SCREW

$

$

Currently unavailable

5

Briggs & Stratton 96162

SPARE PARTS KIT
(Superseded to 96162GS)

$44.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 96163

PUMP COVER

$

$

Currently unavailable

7

19.3 x 2.4mm O-RING

$

$

Not available

8

Briggs & Stratton 94304

NOZZLE INSERT
(Superseded to 94304GS)

$36.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 96164

OVAL HEAD SCREW

$

$

Not available

10

Briggs & Stratton 94302

10 x 2.5mm O-RING

$

$

Currently unavailable

11

VALVE

$

$

Not available

12

76 x 2mm O-RING

$

$

Not available

13

Briggs & Stratton 96165

CYLINDER HEAD
(Superseded to 96165GS)

$76.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 94303

PISTON

$

$

Currently unavailable

15

Briggs & Stratton 94305

HELICAL SPRING
(Superseded to 692125)

$4.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 96166

HOUSING

$

$

Currently unavailable

17

Briggs & Stratton 94306

GROOVED RING
(Superseded to 94306GS)

$11.99

$

Usually ships in 2-12 days

0

18

WASHER

$

$

Not available

19

GROOVED RING

$

$

Not available

20

O-RING

$

$

Not available

21

PRESSURE VALVE

$

$

Not available

22

GASKET

$

$

Not available
