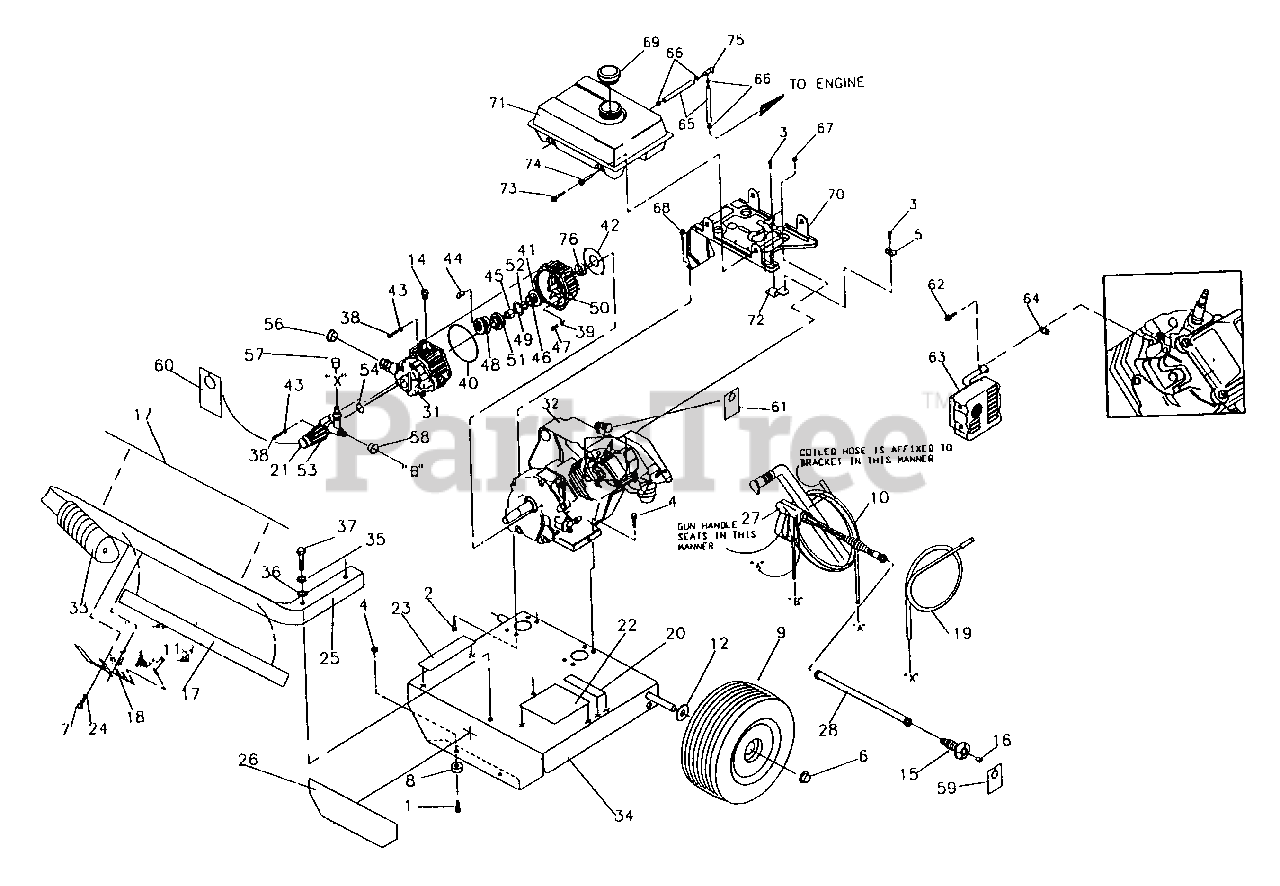

580.742650 (0503-0) - Craftsman 2,300 PSI Pressure Washer Repair Parts Drawing No.97333 Parts Diagram

2,300 PSI Pressure Washer

Repair Parts Drawing No.97333 Parts Diagram

  • Title

1

Briggs & Stratton 39253

M8-1.25 x 20mm Capscrew
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

2

Briggs & Stratton 39414

M8-1.25 x 35mm Capscrew
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 45764

M4-0.7 x 8mm
(Superseded to 45764GS)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 52858

M8-1.25 Locking Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 65852

Spring Clip
(Superseded to 65852GS)

$9.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 75402

Pushnut
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

7

Briggs & Stratton 86292

#10-Self-drilling Screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 87841

Vibration Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 88521

Pneumatic Wheel
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 91630

3/8" I.D., 3/8" NPT Hose

$

$

Not available

11

Briggs & Stratton 92067

Vinyl Cap

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 49808

M12 Flat Washer
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 95454

Oil Fill Cap and Breather

$

$

Currently unavailable

15

Briggs & Stratton 95587A

Nozzle
(Superseded to 95587AGS)

$34.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 92661

Nozzle replacement
(Superseded to 92661GS)

$9.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 95905

Water Warning Decal

$

$

Not available

18

Briggs & Stratton 95908

Gun and Hose Support
(Superseded to 95908GS)

$31.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 96168

Chem. Injection Hose Assm.
(Superseded to 96168GS)

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 96307

Decal - Sears 1-800 #
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 96312

Decal - Pressure Adjust

$

$

Currently unavailable

22

Briggs & Stratton 96414

Decal - important Inst.

$

$

Currently unavailable

23

Briggs & Stratton 96415

Decal - Caution Inst.
(Superseded to 96415GS)

$1.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 96333

Flat Washer

$

$

Currently unavailable

25

Briggs & Stratton 96894

Handle
(Superseded to B96894GS)

$48.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 97113

Decal - Sears logo
(Superseded to 97113GS)

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 97117

Spray Gun
(Superseded to 198209GS)

$85.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 97123

18" Spray Gun Extension
(Superseded to 97123GS)

$68.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 97240C

Pump Head Assembly

$

$

Currently unavailable

32

Briggs & Stratton ENG97888

Engine

$

$

Currently unavailable

33

Briggs & Stratton 97612

Fingered Handle Grip

$

$

Not available

34

Briggs & Stratton 97757B

Uni-base Plate
(Superseded to 97757BGS)

$370.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22129

5/16" M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 50190

Flat Washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 57821

M8-1.25 x 40mm Capscrew

$

$

Not available

38

Briggs & Stratton 40945

M6-1.O x 20mm
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 92479

M8 Ribbed Lock Washer
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 93790

114 x 119 x 2.6 O-ring
(Superseded to 93790GS)

$6.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 96542

Thrust Bearing
(Superseded to 96542GS)

$100.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 93871

Engine Adaptor Gasket
(Superseded to 93871GS)

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 93873

M6 Ribbed Lock Washer

$4.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 94944

Piston Pivot Shoe
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 95435

Hex Straight Shaft Adapter
(Superseded to 95435GS)

$8.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 95524

Push On Retainer
(Superseded to 95524GS)

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 23707

5/16" - 24 x 1" Capscrew
(Superseded to 23707GS)

$3.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 97606

Roller Thrust Bearing
(Superseded to 97606GS)

$88.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 97570

Thrust Washer
(Superseded to 97570GS)

$4.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 97583

Mach. Adaptor GPW

$

$

Currently unavailable

51

Briggs & Stratton 97673

Axial Cam, 3gpm
(Superseded to 97673VGS)

$50.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 97675

C-ring Cam Retainer
(Superseded to 97675GS)

$3.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 95212B

Unloader Assembly

$

$

Not available

54

Briggs & Stratton 93723

O-ring 20 x 25 x 2.6
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

56

Briggs & Stratton 97098

Garden Hose Inlet Cap
(Superseded to 97098GS)

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 97099

Chemical Injection Cap

$

$

Not available

58

Briggs & Stratton 97100

High Pressure Adaptor Cap
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 97566

Nozzle Instruction Tag
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 97054

Pressure Adjustment Tag

$

$

Not available

61

Briggs & Stratton 70453

Oil Warning Tag
(Superseded to 70453GS)

$3.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 40976

M8-1.25 x 20mm Capscrew

$

$

Not available

63

Briggs & Stratton 88688

Muffler Assembly
(Superseded to 195002GS)

$86.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 89476

Exhaust Gasket
(Superseded to 89476GS)

$2.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 30340

Fuel Hose - 1/4" I.D

$3155.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 48031G

Hose Clamp
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 77395

M6 Locking Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 83512

M8-1.25 x 15mm Screw
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 90878

Fuel Cap
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

70

Briggs & Stratton 95214

Cradle

$

$

Currently unavailable

71

Briggs & Stratton 94494

Fuel Tank

$6.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 95963

Gun Front Bracket

$

$

Not available

73

Briggs & Stratton 96001

M6-1.0 x 21mm Bolt

$

$

Not available

74

Briggs & Stratton 96002

Tank Bushing
(Superseded to 96002GS)

$5.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 96193

Fuel Shut-off Bushing
(Superseded to 698181)

$11.99

$

In Stock, Qty 20+

0

76

Briggs & Stratton 95441

Eng. Adaptor 1.5 Sleeve
(Superseded to 95441GS)

$8.49

$

Usually ships in 2-12 days

0
