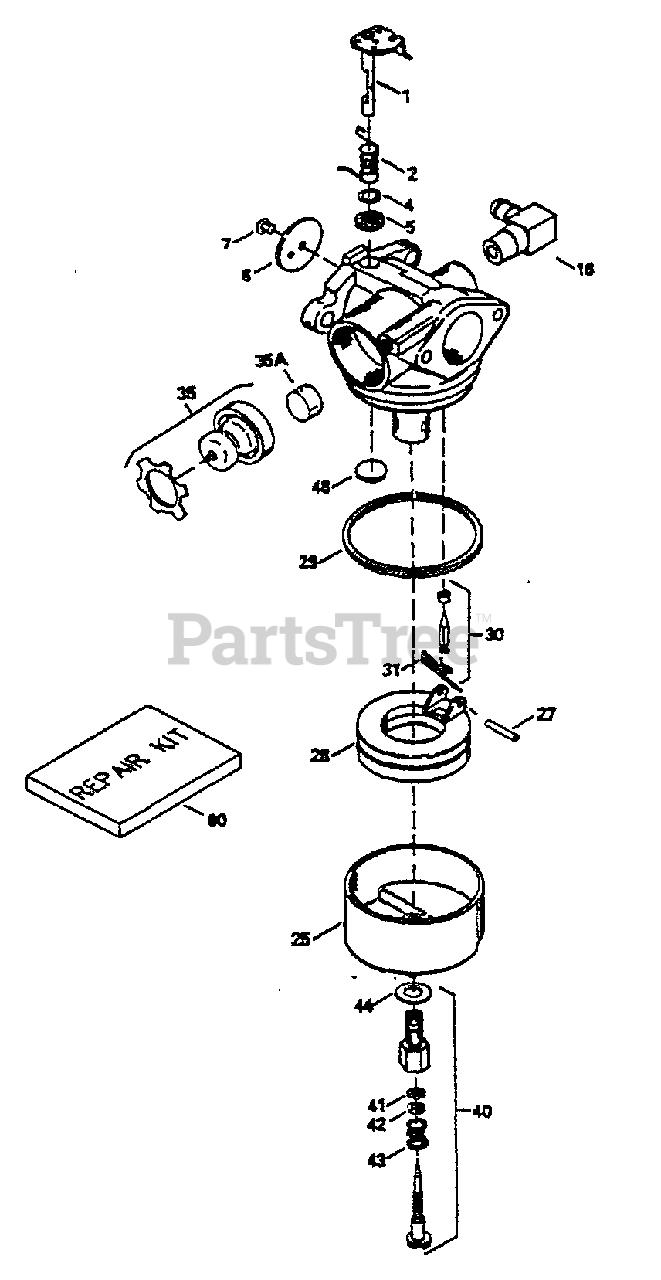

580.742380 (0501-0) - Craftsman 1,600 PSI Pressure Washer Carburetor Parts Diagram

1,600 PSI Pressure Washer

Carburetor Parts Diagram

  • Title

1

Briggs & Stratton 631615

Throttle Shaft/Lever Assembly

$

$

Currently unavailable

2

Briggs & Stratton 631617

Throttle Return Spring

$

$

Currently unavailable

4

Briggs & Stratton 631184

Dust Seal Washer

$

$

Currently unavailable

5

Briggs & Stratton 631183

Dust Seal [throttle]

$

$

Currently unavailable

6

Briggs & Stratton 632590

Throttle Shutter

$

$

Currently unavailable

7

Briggs & Stratton 650506

Shutter Screw

$

$

Currently unavailable

16

Briggs & Stratton 63187

Fuel Fitting
(Superseded to 7063187YP)

$319.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 631867

Float Bowl

$

$

Currently unavailable

27

Briggs & Stratton 631024

Float Shaft

Note: Included in Repair Kit.

$

$

Currently unavailable

28

Briggs & Stratton 632019

Float

$

$

Currently unavailable

29

Briggs & Stratton 631028

Float Bowl "O" Ring

Note: Included in Repair Kit.

$

$

Currently unavailable

30

Briggs & Stratton 631021

Inlet Needle, Seat & Clip

Note: Includes ref. #31; Included in Repair Kit.

$

$

Currently unavailable

31

Briggs & Stratton 631022

Spring Clip

$

$

Currently unavailable

35

Briggs & Stratton 36045

Primer Bulb/Retainer Ring

$

$

Currently unavailable

35A

Briggs & Stratton 632647

Primer Bulb Filter

$

$

Currently unavailable

40

Briggs & Stratton 31839

Main Adjustment Screw

Note: Includes ref. #'s 41 & 44; Included in Repair Kit.

$

$

Currently unavailable

41

Briggs & Stratton 630740

High Speed

Note: Included in Repair Kit.

$

$

Currently unavailable

42

Briggs & Stratton 630739

High Speed Mixture Screw Washer

$

$

Currently unavailable

43

Briggs & Stratton 630738

High Speed Mixture Screw Tension Spring

$

$

Currently unavailable

44

Briggs & Stratton 27110

Bowl Nut Washer
(Superseded to 7027110YP)

Note: Included in Repair Kit.

$11.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 631027

Welch Plug

Note: Included in Repair Kit.

$

$

Currently unavailable

60

Briggs & Stratton 31840

Repair Kit

Note: Includes ref. #'s 27, 29, 30 & 40.

$

$

Currently unavailable
