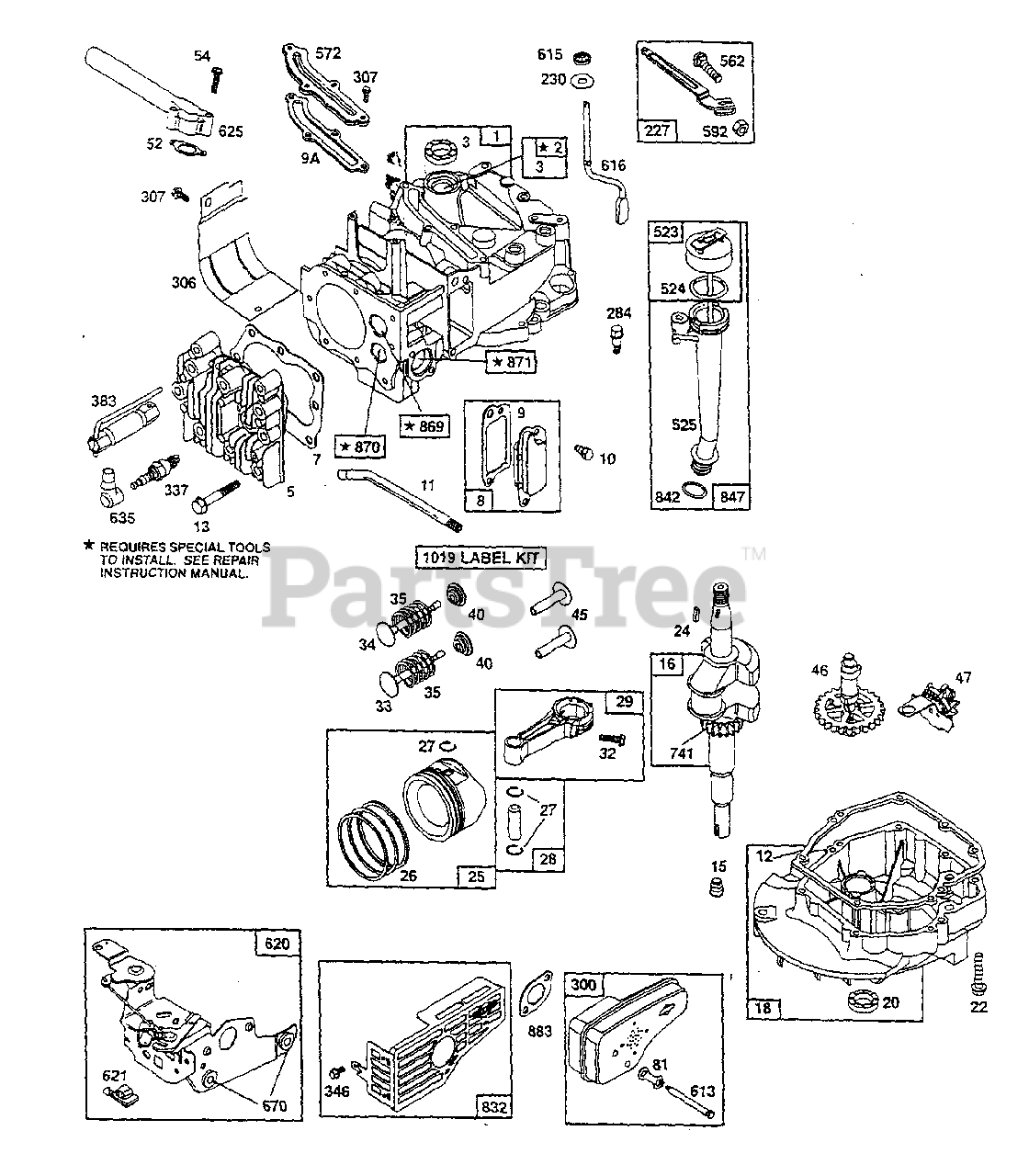

580.741380 (0505-0) - Craftsman 1,500 PSI Pressure Washer Motor Breakdown (Part 1) Parts Diagram

1,500 PSI Pressure Washer

Motor Breakdown (Part 1) Parts Diagram

  • Title

1

Briggs & Stratton 493260

Cylinder Assembly
(Superseded to 592645)

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Oil Seal
(Superseded to 299819S)

Note: Included in Gasket Set P/N 497316

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 214349

Cylinder Head
(Superseded to 594989)

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272916

Cylinder Head Gasket
(Superseded to 692249)

Note: Included in Gasket Set P/N 497316 & Valve Overhaul Gasket Set P/N 498528

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495786

Breather Assembly
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Breather Gasket
(Superseded to 699833)

Note: Included in Gasket Set P/N 497316 & Valve Overhaul Gasket Set P/N 498528

$5.49

$

Usually ships in 2-12 days

0

9A

Briggs & Stratton 272481

Breather Gasket
(Superseded to 699833)

Note: Included in Gasket Set P/N 497316

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 94650

Hex Screw

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 231933

Breather Tube
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 272198

Crankcase Gasket
(Superseded to 692232)

Note: Included in Gasket Set P/N 497316

$5.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 94547

Hex Screw
(Superseded to 690912)

$3.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94720

Oil Drain Plug
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 493362

Crankshaft
(Superseded to 797018)

Note: Timing Gear Key order Part No. 94388

$179.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 493279

Engine Sump

$120.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 399781

Oil Seal
(Superseded to 399781S)

Note: Included in Gasket Set P/N 497316

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

Hex Screw
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Flywheel Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 493262

Piston Assembly (Standard)

$74.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 493385

Piston Assembly (.010" O.S.)

$62.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 493386

Piston Assembly (.020" O.S.)

$

$

Not available

25

Briggs & Stratton 493387

Piston Assembly (.030" O.S.)

$62.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 493261

Ring Set (Standard)

$41.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 493388

Ring Set (.010" O.S.)

$31.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 493389

Ring Set (.020" O.S.)

$

$

Not available

26

Briggs & Stratton 493390

Ring Set (.030" O.S.)

$29.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Piston Pin Lock
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Piston Pin (Standard)

$8.99

$

In Stock, only 3 left!

0

28

Briggs & Stratton 298908

Piston Pin (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490566

Connecting Rod

$39.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

Hex Screw
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

Exhaust Valve
(Superseded to 590394)

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

Intake Valve
(Superseded to 590393)

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262224

Valve Spring
(Superseded to 691270)

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 93312

Valve Retainer
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 262204

Valve Tappet
(Superseded to 690548)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 492828

Cam Gear

$51.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 493737

Oil Slinger
(Superseded to 691997)

$25.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 272199

Intake Gasket
(Superseded to 272199S)

Note: Included in Gasket Set P/N 497316

$4.99

$

In Stock, only 2 left!

0

54

Briggs & Stratton 94526

Hex. Screw
(Superseded to 691650)

$2.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 223664

Muffler Screw Lock
(Superseded to 691740)

$5.49

$

In Stock, Qty 7

0

227

Briggs & Stratton 492349

Governor Lever
(Superseded to 690783)

$15.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 67072

Washer
(Superseded to 690272)

$3.99

$

In Stock, only 2 left!

0

284

Briggs & Stratton 94511

Shoulder Screw
(Superseded to 690940)

$3.99

$

In Stock, Qty 14

0

300

Briggs & Stratton 496106

Exhaust Muffler
(Superseded to 692038)

$29.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 224324

Cylinder Shield
(Superseded to 690450)

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

Hex. Screw
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93602

Hex Screw

$

$

Not available

383

Briggs & Stratton 89838

Spark Plug Wrench
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

523

Briggs & Stratton 495264

Oil Fill Cap
(Superseded to 499621)

$17.99

$

In Stock, only 4 left!

0

524

Briggs & Stratton 280393

Fill Tube Seal
(Superseded to 691031)

Note: Included in Gasket Set P/N 497316

$5.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 495265

Oil Fill Tube

$

$

Not available

562

Briggs & Stratton 94852

Carriage Bolt
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

572

Briggs & Stratton 224328

Cylinder Baffle
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 231082

Hex. Nut
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

613

Briggs & Stratton 94231

Hex Screw
(Superseded to 691340)

$4.99

$

In Stock, Qty 9

0

615

Briggs & Stratton 94474

Push Nut
(Superseded to 690340)

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 262578

Governor Crank
(Superseded to 698801)

$10.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 497203

Control Bracket
(Superseded to 790143)

$44.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Stop Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

625

Briggs & Stratton 281085

Intake Manifold
(Superseded to 794305)

$

$

Not available

635

Briggs & Stratton 66538

Spark Plug Boot
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

670

Briggs & Stratton 493823

Spacer

Note: (Includes 2); Included in Gasket Set P/N 497316

$6.49

$

In Stock, only 1 left!

0

741

Briggs & Stratton 262596

Timing Gear

$

$

Currently unavailable

832

Briggs & Stratton 494224

Muffler Guard

$40.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set P/N 497316

$4.99

$

In Stock, Qty 8

0

847

Briggs & Stratton 495263

Oil Fill Tube
(Superseded to 692047)

$

$

Not available

869

Briggs & Stratton 211172

Intake Valve Seat
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 213513

Exhaust Valve Seat
(Superseded to 690380)

$

$

Not available

883

Briggs & Stratton 272253

Exhaust Gasket
(Superseded to 691881)

Note: Included in Gasket Set P/N 497316 & Valve Overhaul Gasket Set P/N 498528

$8.99

$

In Stock, only 1 left!

0

1019

Briggs & Stratton 494256

Label Kit

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 498528

Valve Overhaul Gasket Set

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 94388

Timing Gear Key
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

Briggs & Stratton 497316

Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 2 left!

0
