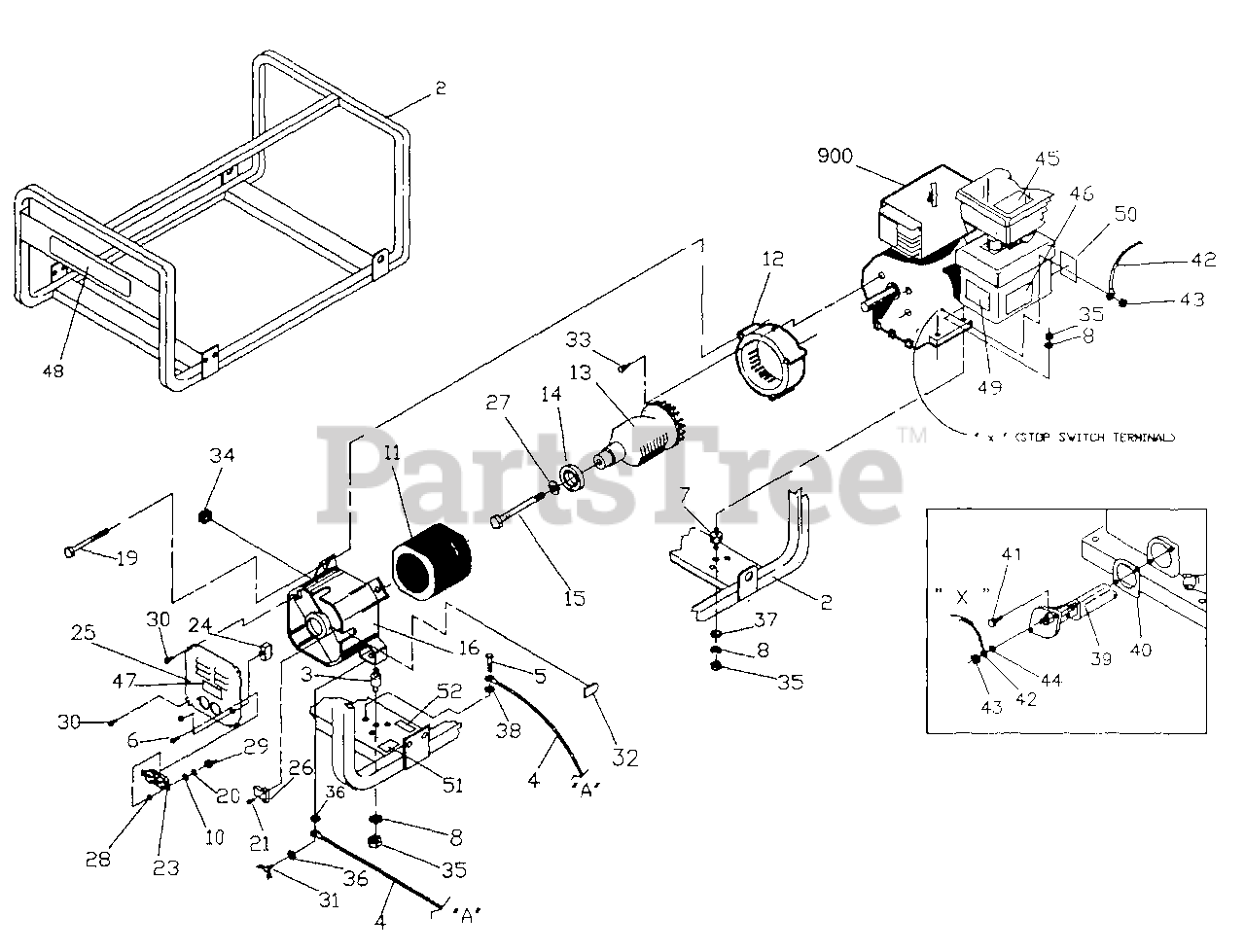

580.678240 (1134-0) - Craftsman 2,400 Watt Portable Generator Main Unit Parts Diagram

2,400 Watt Portable Generator

Main Unit Parts Diagram

  • Title

2

Briggs & Stratton 91018A

ASSEMBLY, Cradle

$

$

Not available

3

Briggs & Stratton 85652

MOUNT, Vibration Alt.
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

4

14353621

WIRE, Ground

$

$

Not available

5

Briggs & Stratton 86292

CAPSCREW, Self Driller #10
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 75475

SCREW, PHM M4 - 0.7 x 10

$

$

Not available

7

Briggs & Stratton 85651

MOUNT, Vibration Engine
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

WASHER, M8 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 38150

WASHER, #8 Flat
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 91824

ASSEMBLY, Stator
(Superseded to 7091824YP)

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66365F

HOUSING, Engine Adaptor
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 91820

ASSEMBLY, Rotor

$

$

Not available

14

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24420

BOLT, Rotor 5/16" - 24 x 6.25

$

$

Not available

16

Briggs & Stratton 66825B

CARRIER, Rear Bearing

$

$

Currently unavailable

19

Briggs & Stratton 86308D

BOLT, Stator M6 1.00 x 85mm
(Superseded to 86308DGS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

WASHER, No. 8 Lock

$

$

Not available

21

Briggs & Stratton 66849

SCREW, M5 - .80 x 16mm Taptite
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 63025

RECEPTACLE, 120V AC, 15AMP
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 94396A

BREAKER, Circuit - 15AMP
(Superseded to 94396AGS)

$35.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 96386

PANEL, Receptacle

$

$

Currently unavailable

26

Briggs & Stratton 91825

RECTIFIER, Brush & Bridge

$

$

Not available

27

Briggs & Stratton 67451

WASHER, Flat

Note: (Special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

WASHER, Shakeproof No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

NUT, M4 - 0.7 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

SCREW, M5 0.80 x 10mm Taptite
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 86494

SCREW, M6 - 1.0 x 16 Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84242

GROMMET, Rubber
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

CAPSCREW, Hx Hd 5/16 - 24 x 3/4
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 67022

COVER, Bearing Carrier
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 45771

NUT, M8 1.25 Hex

$

$

Not available

36

Briggs & Stratton 26850

WASHER, M6 1/4 Shakeproof

$

$

Not available

37

UNKNOWN

$

$

Not available

38

Briggs & Stratton 22769

WASHER, #10 Shakeproof
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 88977

Low Oil Shut Down

$

$

Currently unavailable

40

Briggs & Stratton 91841

GASKET, Low Oil Shut Down

$

$

Not available

41

Briggs & Stratton 24679

SCREW, Hx Hd #10 - 32 x 3/4" Lg
(Superseded to 24679GS)

$3.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 91842A

WIRE, Low Oil Shut Down
(Superseded to 91842AGS)

$6.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22471

NUT, #8 - 32
(Superseded to 22471GS)

Note: (Los Wire Assembly)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 23365

WASHER, #8 Shakeproof
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 93639

DECAL, Danger

Note: (English)

$2.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 96182

DECAL, Danger
(Superseded to 96182GS)

Note: (French)

$7.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 98319

DECAL, Control Panel
(Superseded to 98319GS)

$8.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 98246

DECAL, Sears 2400

$

$

Currently unavailable

49

Briggs & Stratton 96409

DECAL, 1-800 Number
(Superseded to 96409GS)

$8.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 25717

DECAL, CSA

$

$

Currently unavailable

51

Briggs & Stratton 74728

DECAL, Neutral Ground
(Superseded to 74728GS)

Note: (English)

$5.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 76247

DECAL, Neutral Ground
(Superseded to 76247GS)

Note: (French)

$9.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 96297

ENGINE, Briggs & Stratton 5HP #135212-0752-A1

$

$

Currently unavailable
