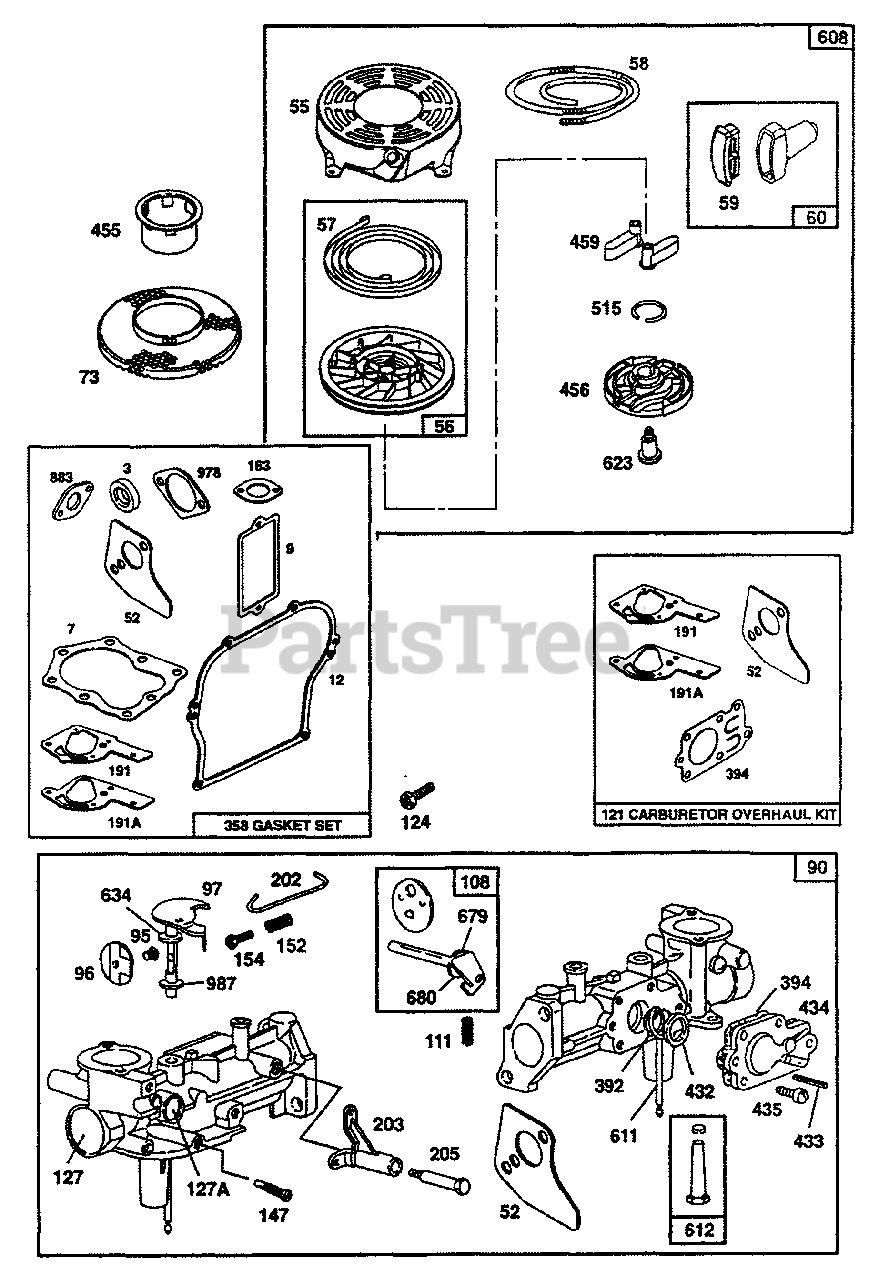

580.678240 (1134-0) - Craftsman 2,400 Watt Portable Generator Carburetor Assembly And Gasket Set Parts Diagram

2,400 Watt Portable Generator

Carburetor Assembly And Gasket Set Parts Diagram

  • Title
3

Briggs & Stratton 299819

Oil Seal
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 272157

Cylinder Head Gasket
(Superseded to 272157S)

Note: (Included in Gasket Set - Part No. 397145)

$6.49

$

In Stock, Qty 6

0

9

Briggs & Stratton 27549

Valve Cover Gasket
(Superseded to 27549S)

Note: (Included in Gasket Set - Part No. 397145)

$3.99

$

In Stock, Qty 12

0

12

Briggs & Stratton 270080

Crankcase Gasket
(Superseded to 692213)

Note: (Included in Gasket Set - Part No. 397145)

$3.99

$

In Stock, only 4 left!

0

52

Briggs & Stratton 273113

Intake Gasket
(Superseded to 273113S)

Note: (Included in Gasket Set - Part No. 397145)

$4.49

$

In Stock, Qty 17

0

55

Briggs & Stratton 497440

Rewind Starting Housing
(Superseded to 691421)

$64.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 498144

Rewind Starter Pulley

Note: (Includes 63" rope. If longer rope is needed, order rope No. 66984 and cut to length.)

$19.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 263074

Rewind Starter Spring
(Superseded to 498144)

$19.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 280399

Rewind Starter Rope
(Superseded to 280399S)

Note: (Cut to length)

$5.99

$

In Stock, Qty 9

0

59

Briggs & Stratton 396892

Starter Grip Pin

$5.49

$

In Stock, only 1 left!

0

60

$4.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 225176

Starter Pulley Screen
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 498298

Carburetor Assembly

$149.99

$

In Stock, Qty 19

0

95

Briggs & Stratton 93499

Throttle-Valve-to-Shaft Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 223793

Carburetor Lever
(Superseded to 691743)

$7.49

$

In Stock, only 1 left!

0

97

Briggs & Stratton 490048

Throttle Shaft and Lever
(Superseded to 692325)

$16.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 497230

Choke Valve Group

$15.99

$

In Stock, only 4 left!

0

111

Briggs & Stratton 262715

Choke Spring
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

121

UNKNOWN

$

$

Not available

124

Briggs & Stratton 94616

Screw-Torx
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 220352

Welch Plug
(Superseded to 691718)

$13.99

$

In Stock, only 4 left!

0

127A

Briggs & Stratton 223789

Welch Plug (Mixing Chamber)
(Superseded to 691742)

$4.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231955

Pilot Jet
(Superseded to 691250)

$14.99

$

In Stock, only 1 left!

0

152

Briggs & Stratton 260575

Throttle Adjustment Spring
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

154

Briggs & Stratton 93527

Round Head Screw 5-40 x 5/8"
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271935

Air Cleaner Mounting Gasket
(Superseded to 271935S)

Note: (Included in Gasket Set - Part No. 397145)

$6.49

$

In Stock, Qty 12

0

180

Briggs & Stratton 495045

Fuel Tank Assembly

$

$

Currently unavailable

191

Briggs & Stratton 272489

Fuel Tank Mounting Gasket
(Superseded to 692241)

Note: (Included in Gasket Set - Part No. 397145)

$4.49

$

In Stock, Qty 20+

0

191A

UNKNOWN

$

$

Not available

202

Briggs & Stratton 262270

Throttle Link
(Superseded to 691812)

$8.99

$

In Stock, only 1 left!

0

203

Briggs & Stratton 280720

Bell Crank
(Superseded to 691906)

$7.99

$

In Stock, only 1 left!

0

205

Briggs & Stratton 231520

Shoulder Screw
(Superseded to 691776)

$

$

Not available

358

$32.99

$

In Stock, Qty 20+

0

373

Briggs & Stratton 92987

Hex Nut
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

392

Briggs & Stratton 262328

Fuel Pump Spring
(Superseded to 691823)

$4.99

$

In Stock, only 2 left!

0

394

Briggs & Stratton 272538

Diaphragm - carburetor
(Superseded to 272538S)

$3.99

$

In Stock, Qty 20+

0

432

Briggs & Stratton 221377

Spring Cap
(Superseded to 690766)

$4.99

$

In Stock, only 3 left!

0

433

Briggs & Stratton 93265

Spring Cap
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 213963

Diaphragm Cover
(Superseded to 691713)

$10.99

$

In Stock, only 1 left!

0

435

Briggs & Stratton 93141

Diaphragm Cover Screw
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 225121

Flywheel Cup
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 281503

Spring Retainer
(Superseded to 692299)

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505

Rachet Pawl
(Superseded to 281505S)

$3.49

$

In Stock, Qty 13

0

467

Briggs & Stratton 280715

Control Knob
(Superseded to 692295)

$9.49

$

In Stock, only 4 left!

0

515

Briggs & Stratton 263073

Friction Spring
(Superseded to 691855)

$4.49

$

In Stock, only 3 left!

0

Briggs & Stratton 397145

Gasket Set
(Superseded to 495603)

$32.99

$

In Stock, Qty 20+

0

Briggs & Stratton 397090

Crankshaft Pin

$110.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable
