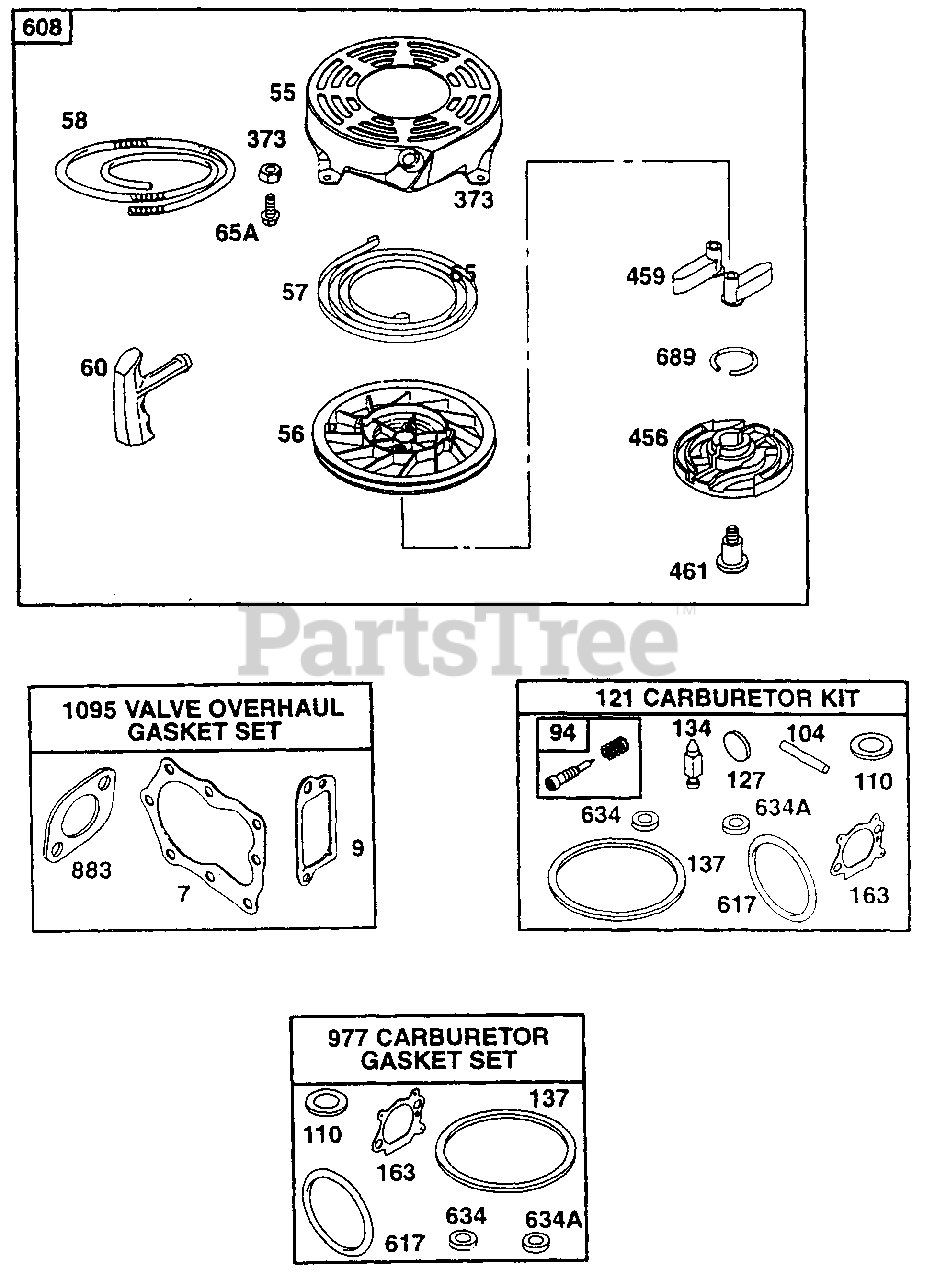

580.678200 (1133-0) - Craftsman 2,000 Watt Portable Generator Rewind Starter And Carburetor Kit Parts Diagram

2,000 Watt Portable Generator

Rewind Starter And Carburetor Kit Parts Diagram

  • Title

7

Briggs & Stratton 272916

Cylinder Head Gasket
(Superseded to 692249)

Note: (Included in Gasket Set #497316 & Valve Overhaul Gasket Set #498528)

$8.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 272481

Breather Gasket
(Superseded to 699833)

Note: (Included in Gasket Set #497316 & Valve Overhaul Gasket Set #498528)

$5.49

$

In Stock, only 1 left!

0

55

Briggs & Stratton 497440

Rewind Starter Housing
(Superseded to 691421)

$64.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 281504

Starter Pulley
(Superseded to 498144)

$19.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 263074

Rewind Starter Spring
(Superseded to 498144)

$19.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 280399

Starter Rope
(Superseded to 280399S)

Note: (Cut to Required Length)

$5.99

$

In Stock, Qty 8

0

60

Briggs & Stratton 281434

Starter Rope Grip
(Superseded to 281434S)

$3.99

$

In Stock, only 4 left!

0

65A

Briggs & Stratton 94904

Hex Screw
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

94

Briggs & Stratton 493765

Idle Adjust Valve

Note: (Included in Carburetor Kit #498260)

$14.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Float Hinge Pin
(Superseded to 797622)

Note: (Included in Carburetor Kit #498260)

$3.99

$

In Stock, Qty 10

0

110

Bowl Washer

Note: (Included in Carburetor Kit #498260 & Carburetor Gasket Set #498261)

$

$

Not available

121

Briggs & Stratton 498260

Carburetor Kit

$16.99

$

In Stock, Qty 20+

0

127

Welch Plug

Note: (Included in Carburetor Kit #498260)

$

$

Not available

134

Briggs & Stratton 398188

Needle Valve

Note: (Includes Seat) (Included in Carburetor Kit #498260)

$6.49

$

In Stock, Qty 20+

0

137

Float Bowl Gasket

Note: (Included in Carburetor Kit #498260 & Carburetor Gasket Set #498261)

$

$

Not available

163

Briggs & Stratton 272653

Air Cleaner Gasket
(Superseded to 795629)

Note: (Included in Carburetor Kit #498260, Carburetor Gasket Set #498261 & Gasket Set #497316)

$3.49

$

In Stock, Qty 20+

0

373

Briggs & Stratton 94908

Hex. Nut
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

456

Briggs & Stratton 281503

Spring Retainer
(Superseded to 692299)

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505

Rachet Pawl
(Superseded to 281505S)

$3.49

$

In Stock, Qty 13

0

461

Briggs & Stratton 94943

Shoulder Screw
(Superseded to 691696)

$11.99

$

In Stock, Qty 5

0

608

Briggs & Stratton 497680

Rewind Starter

$49.99

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270334

Intake Manifold Seal

Note: (Included in Carburetor Kit #498260 & Carburetor Gasket Set #498261)

$

$

Currently unavailable

634

Choke Shaft Seal

Note: (Included in Carburetor Kit #498260 & Carburetor Gasket Set #498261)

$

$

Not available

634A

Foam Washer

Note: (Included in Carburetor Kit #498260 & Carburetor Gasket Set #498261)

$

$

Not available

689

Briggs & Stratton 263073

Friction Spring
(Superseded to 691855)

$4.49

$

In Stock, only 2 left!

0

883

Briggs & Stratton 272253

Exhaust Gasket
(Superseded to 691881)

Note: (Included in Gasket Set #497316 & Valve Overhaul Gasket Set #498528)

$8.99

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 498261

Carburetor Gasket Set
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1095

Briggs & Stratton 498528

Valve Overhaul Gasket Set

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 497316

Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 2 left!

0

Briggs & Stratton 498261

Carburetor Gasket Set
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

Briggs & Stratton 498260

Carburetor Kit

$16.99

$

In Stock, Qty 20+

0

Briggs & Stratton 498528

Valve Overhaul Gasket Set

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 497466

Main Jet (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 63709

Guide Bushing (Intake)

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 94612

Hex Screw
(Superseded to 691092)

Note: (Used in hole nearest breather.)

$3.99

$

Usually ships in 2-12 days

0
