580.678200 (1133-0) - Craftsman 2,000 Watt Portable Generator Exhaust Muffler And Gasket Set Parts Diagram

2,000 Watt Portable Generator

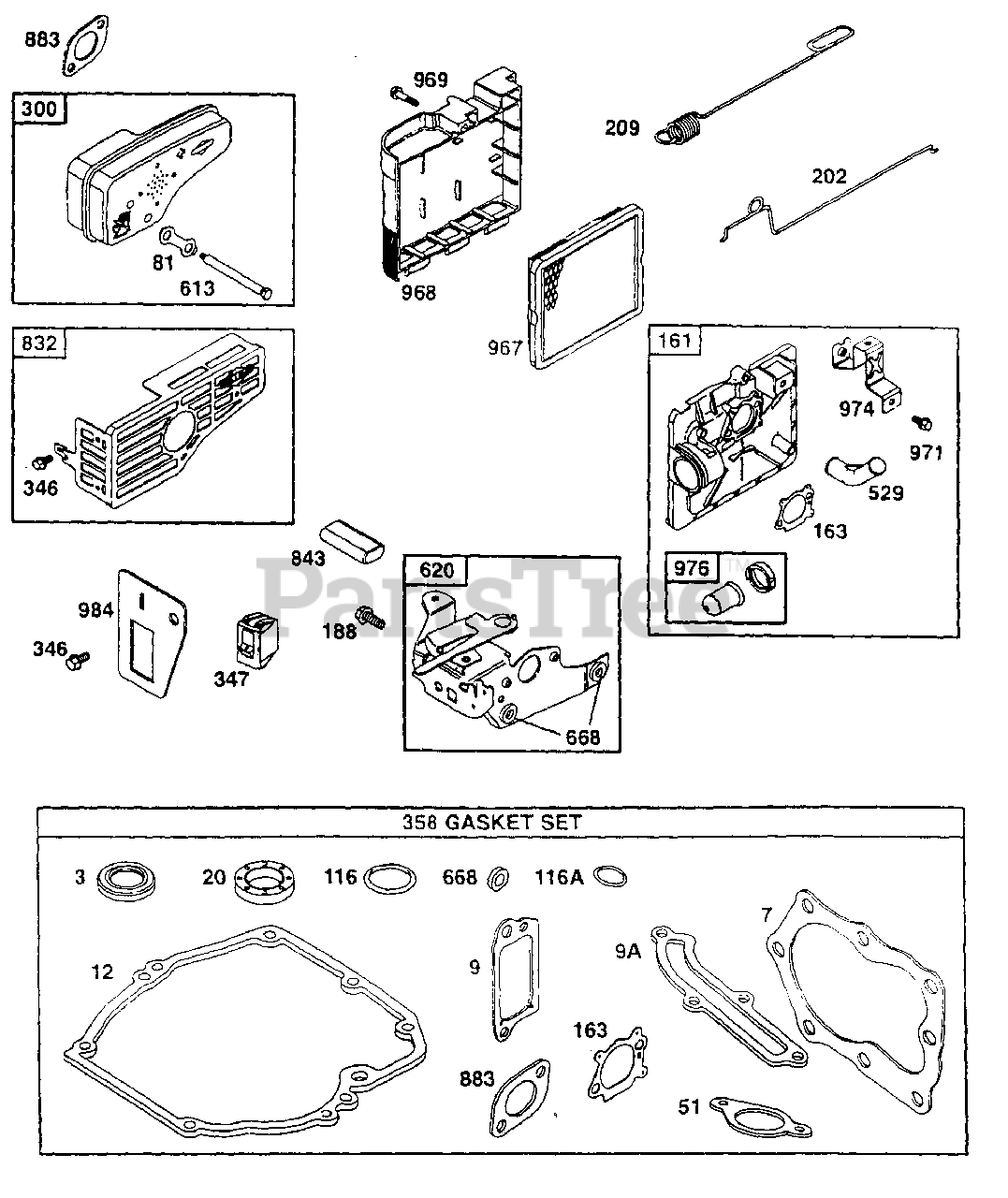

Exhaust Muffler And Gasket Set Parts Diagram

  • Title

3

Briggs & Stratton 299819

Oil Seal
(Superseded to 299819S)

Note: (Included in Gasket Set #497316)

$5.49

$

In Stock, Qty 13

0

7

Briggs & Stratton 272916

Cylinder Head Gasket
(Superseded to 692249)

Note: (Included in Gasket Set #497316 & Valve Overhaul Gasket Set #498528)

$8.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 272481

Breather Gasket
(Superseded to 699833)

Note: (Included in Gasket Set #497316 & Valve Overhaul Gasket Set #498528)

$5.49

$

Usually ships in 2-12 days

0

9A

Briggs & Stratton 272238

Breather Gasket
(Superseded to 691879)

Note: (Included in Gasket Set #497316)

$6.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 272198

Crankcase Gasket
(Superseded to 692232)

Note: (Included in Gasket Set #497316)

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Oil Seal
(Superseded to 399781S)

Note: (Included in Gasket Set #497316)

$7.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 272199

Intake Gasket
(Superseded to 272199S)

Note: (Included in Gasket Set #497316)

$4.99

$

In Stock, only 1 left!

0

81

Briggs & Stratton 223664

Muffler Screw Lock
(Superseded to 691740)

$5.49

$

In Stock, Qty 5

0

116

Briggs & Stratton 280393

Cap Seal
(Superseded to 691031)

Note: (Included in Gasket Set #497316)

$5.49

$

In Stock, Qty 20+

0

116A

Briggs & Stratton 280966

O-ring Seal
(Superseded to 692296)

Note: (Included in Gasket Set #497316)

$4.99

$

In Stock, only 1 left!

0

161

Briggs & Stratton 496116

Air Cleaner Base
(Superseded to 795259)

$32.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 272653

Air Cleaner Gasket
(Superseded to 795629)

Note: (Included in Carburetor Kit #498260, Carburetor Gasket Set #498261 & Gasket Set #497316)

$3.49

$

In Stock, Qty 20+

0

188

Briggs & Stratton 94644

Hex. Screw
(Superseded to 690877)

$3.99

$

In Stock, only 3 left!

0

202

Briggs & Stratton 262579

Mechanical Governor Link
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263144

Governor Spring
(Superseded to 691864)

$7.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 496106

Exhaust Muffler
(Superseded to 692038)

$29.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 94602

Hex Screw
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

347

Briggs & Stratton 495984

Rocker Switch
(Superseded to 691396)

$17.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 497316

Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 1 left!

0

529

Briggs & Stratton 281299

Grommet
(Superseded to 691923)

$9.49

$

In Stock, only 1 left!

0

613

Briggs & Stratton 94231

Shoulder Screw
(Superseded to 691340)

$4.99

$

In Stock, Qty 7

0

620

Briggs & Stratton 498581

Choke Bracket
(Superseded to 692982)

$45.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 493823

Spacer

Note: (Includes 2) (Included in Gasket Set #497316)

$6.49

$

In Stock, only 1 left!

0

832

Briggs & Stratton 494224

Muffler Guard

$40.99

$

In Stock, only 1 left!

0

843

Briggs & Stratton 280149

Lever Sleeve
(Superseded to 691895)

$4.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 272253

Exhaust Gasket
(Superseded to 691881)

Note: (Included in Gasket Set #497316 & Valve Overhaul Gasket Set #498528)

$8.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 491588

Air Filter
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 281340

Air Cleaner Cover
(Superseded to 692298)

$27.99

$

In Stock, only 1 left!

0

969

Briggs & Stratton 94120

Slotted Hex Screw
(Superseded to 690670)

$5.99

$

In Stock, only 4 left!

0

971

Briggs & Stratton 94749

Hex Screw
(Superseded to 691669)

$3.99

$

In Stock, only 1 left!

0

974

Briggs & Stratton 224815

Support Bracket
(Superseded to 795259)

$32.99

$

In Stock, only 3 left!

0

976

Briggs & Stratton 496115

Carburetor Primer
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

984

Briggs & Stratton 225323

Light Bracket
(Superseded to 792565)

$7.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 497316

Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 1 left!

0

Briggs & Stratton 498261

Carburetor Gasket Set
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

Briggs & Stratton 498260

Carburetor Kit

$16.99

$

In Stock, Qty 20+

0

Briggs & Stratton 498528

Valve Overhaul Gasket Set

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 497466

Main Jet (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 63709

Guide Bushing (Intake)

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 94612

Hex Screw
(Superseded to 691092)

Note: (Used in hole nearest breather.)

$3.99

$

Usually ships in 2-12 days

0
