580.678200 (1133-0) - Craftsman 2,000 Watt Portable Generator Control Panel Parts Diagram

2,000 Watt Portable Generator

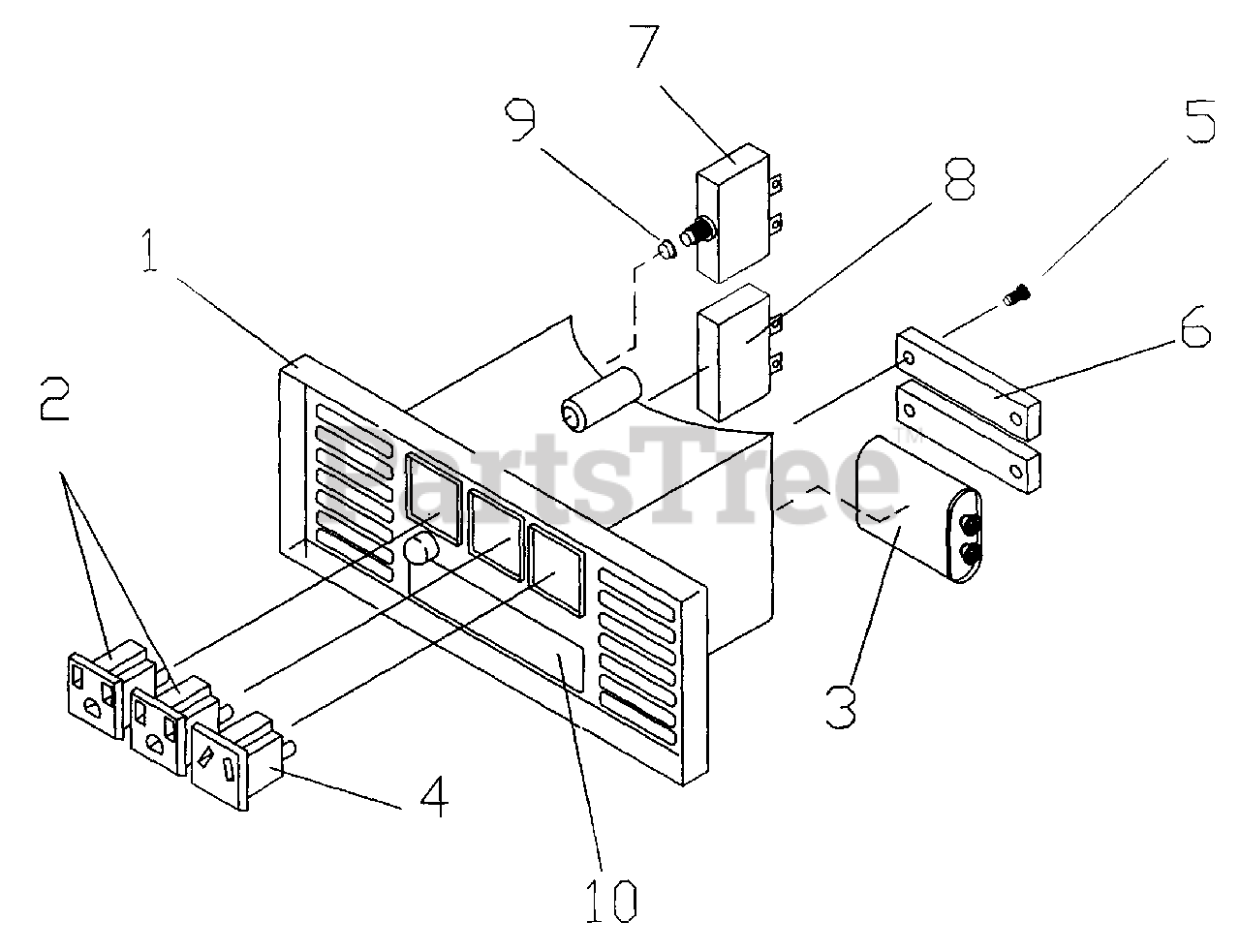

Control Panel Parts Diagram

  • Title
1

Briggs & Stratton 99837

CONTROL PANEL

$

$

Currently unavailable

2

Briggs & Stratton 66818

120V 15A OUTLET
(Superseded to 66818GS)

$

$

Not available

3

Briggs & Stratton 99887

CAPACITOR 12.5 MFD
(Superseded to 99887GS)

$29.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 90418

12V DC OUTLET
(Superseded to 90418GS)

$

$

Not available

5

Briggs & Stratton 84543C

PHILLIPS HEAD SCREW 3.5 X 18MM LG.
(Superseded to 84543CGS)

$2.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 99860

BAR, RETAINING
(Superseded to 99860GS)

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 75207D

15A AC CIRCUIT BREAKER - MAN. RESET
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 83514

10A DC CIRCUIT BREAKER - AUTO RESET
(Superseded to 83514GS)

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 84198

CAP, CIRCUIT BREAKER
(Superseded to 84198GS)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 99852

DECAL, CONTROL PANEL

$

$

Not available
