580.677553 (0567-3) - Craftsman 5,500 Watt Portable Generator Main Unit Parts Diagram

5,500 Watt Portable Generator

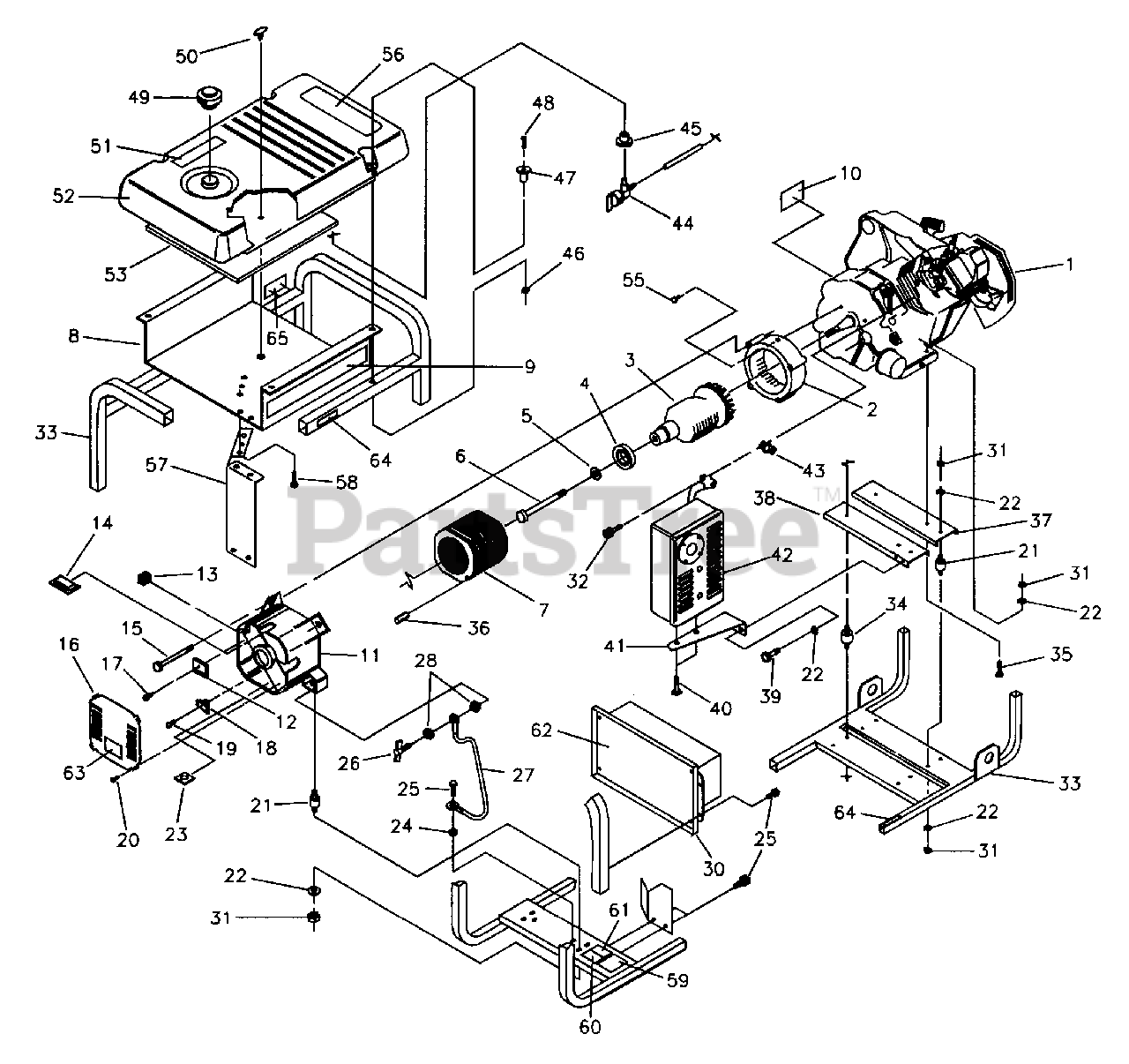

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton ENGA1391

ENGINE, GN320

$

$

Currently unavailable

2

Briggs & Stratton 92247

HOUSING, Engine Adaptor
(Superseded to 92247GS)

$122.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 92678G

ASSEMBLY, Rotor
(Superseded to 92678GGS)

$

$

Not available

4

Briggs & Stratton 65791

BEARING, Shaft
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 67451

WASHER, M8 Flat

$

$

Currently unavailable

6

Briggs & Stratton 28092

HHCS, 5/16-24 x 9-1/4" Lg.
(Superseded to 28092GS)

$15.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 92680G

ASSEMBLY, Stator
(Superseded to 92680GGS)

$

$

Not available

8

Briggs & Stratton 92039

SHIELD

$

$

Currently unavailable

9

Briggs & Stratton 92666

DECAL, Heat Shield
(Superseded to 92666GS)

$12.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 77026

DECAL, Data

$

$

Currently unavailable

11

Briggs & Stratton 66825C

CARRIER, Rear Bearing
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

13

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84132

MODULE, Power
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 86308A

SCREW, M6 - 1.0 x 145 mm Lg.
(Superseded to 86308AGS)

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 67025

COVER, Rear Bearing Carrier

$

$

Currently unavailable

17

Briggs & Stratton 66849A

TAPTITE, M5 - 0.7 x 20 mm Lg.
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66386

ASSEMBLY, Brush Holder
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 66849

TAPTITE, M5 - 0.8 x 16 mm Lg.
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 74908

TAPTITE, M5 - 0.8 x 10 mm Lg.
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 82857

MOUNT, Vibration
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22129

WASHER, M8-5/16 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 57593

MOUNT, Cable Tie
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22769

WASHER, #10 Shakeproof Int.
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 86292

HHCS, #10 Self Driller
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 86494

SCRW, M6-1.0 x 16mm Lg. Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

27

14353621

WIRE, Ground

$

$

Not available

28

Briggs & Stratton 26850

WASHER, M6 Shakeproof Ext.

$

$

Not available

30

Briggs & Stratton 98545

ASSEMBLY, Control Box
(Superseded to 98545GS)

$827.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 25244

NUT,5/16-18 Hex
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 40976

SCREW, M8 - 1.25 x 20

$

$

Not available

33

Briggs & Stratton 92432

CRADLE

$

$

Currently unavailable

34

Briggs & Stratton 92609

MOUNT, Vibration
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22531

HHCS,5/16-18 x 1-3/4" Lg.
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 81917

PIN, 4 mm x 10 Roll
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 92531

SUPPORT, Engine

$

$

Currently unavailable

38

Briggs & Stratton 92731

SUPPORT, Engine & Muffler
(Superseded to N92731GS)

$24.99

$

Usually ships in 2-12 days

0

39

UNKNOWN

$

$

Not available

40

Briggs & Stratton 66476

CAPSCREW, M6-1.0 x 12mm
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 92532

BRACKET, Muffler
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 91153

MUFFLER
(Superseded to A7433GS)

$

$

Not available

43

Briggs & Stratton 90239

GASKET, Muffler
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 80270

VALVE, Fuel Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 78299

BUSHING, Tank Plastic
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 77395

NUT, M6 Flange Lock
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 83465

GROMMET, Tank MTG.
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

48

Briggs & Stratton 78831B

HHMS, M6 - 1.00 x 60 mm Lg.
(Superseded to 78831BGS)

$

$

Not available

49

Briggs & Stratton 94834

CAP, Fuel
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

50

Briggs & Stratton 85000

CLIP, Insulation
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 94479

DECAL, Instruction / Danger
(Superseded to 194984GS)

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 92035

TANK, Fuel

$

$

Not available

53

Briggs & Stratton 92665

INSULATION, 2 - 1/4" Thick
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 86307

HHMS, 5/16 - 24 x 3/4" Lg. SEMS
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

56

Briggs & Stratton 94480

DECAL, Start Instructions
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

57

Briggs & Stratton 96068

SHIELD, Heat

$

$

Currently unavailable

58

Briggs & Stratton 56893

CRIMPTITE, 10 - 24 x 1/2
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 96049

DECAL, Sears 1-800 Number
(Superseded to 96049GS)

$7.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 74728

DECAL, Ground English
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 76247

DECAL, Ground French
(Superseded to 76247GS)

$9.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 98446

DECAL, Control Panel
(Superseded to 98446GS)

$26.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 25717

DECAL, CSA

$

$

Currently unavailable

64

Briggs & Stratton 77816

DECAL, Muffler Warning
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 73054

DECAL, Fuel Shut - Off

$

$

Not available
