580.677220 (0795-0) - Craftsman 2,250 PSI Pressure Washer Recoil Starter Parts Diagram

2,250 PSI Pressure Washer

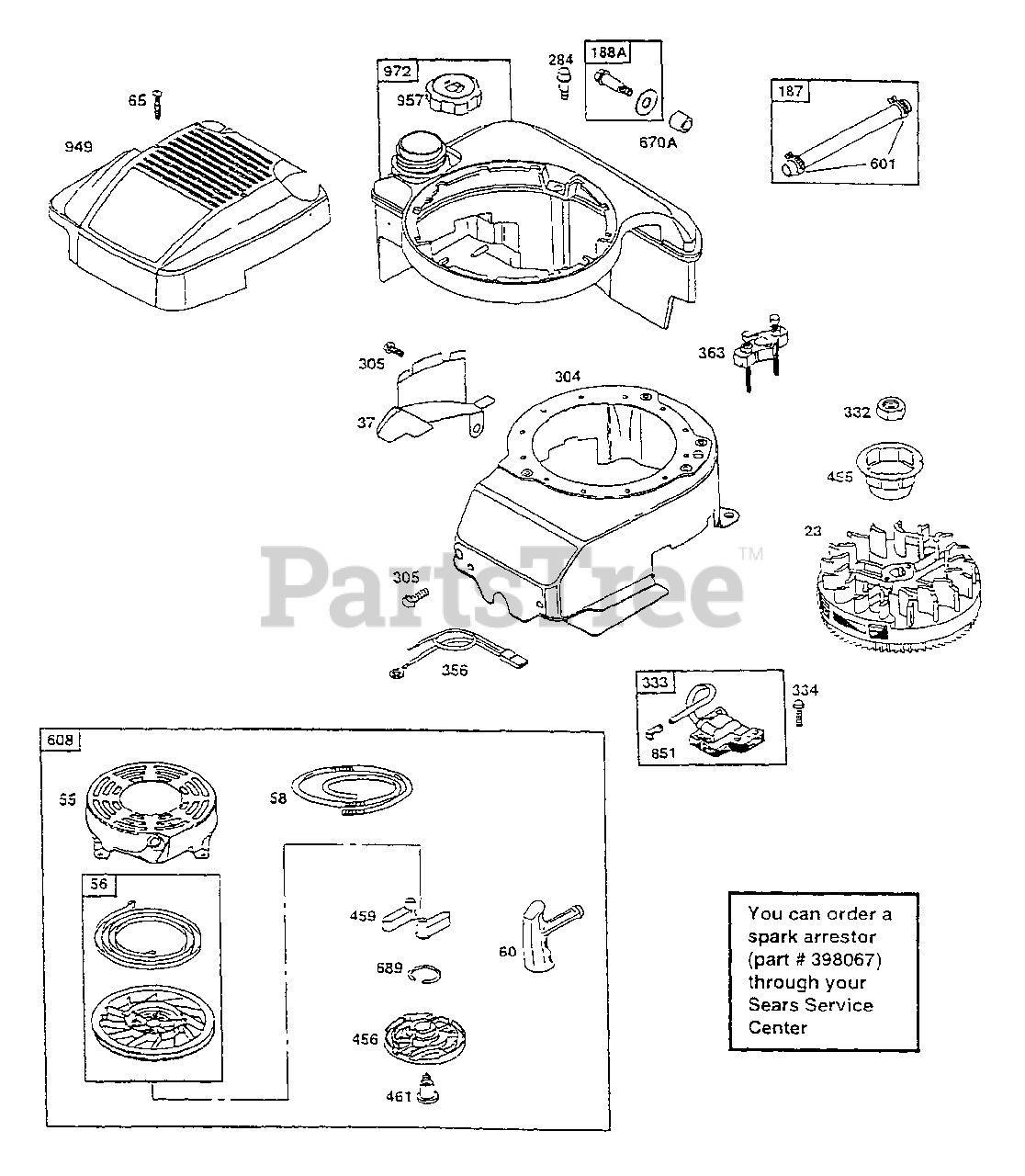

Recoil Starter Parts Diagram

  • Title

23

Briggs & Stratton 492893

Flywheel
(Superseded to 591282)

$120.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 224511

Flywheel Guard
(Superseded to 793756)

$10.99

$

In Stock, only 4 left!

0

55

Briggs & Stratton 497440

Rewind Starter Housing
(Superseded to 691421)

$64.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 498144

Starter Pulley

$19.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 280399

Starter Rope
(Superseded to 280399S)

Note: Cut to Required Length

$5.99

$

In Stock, Qty 9

0

60

Briggs & Stratton 281434

Starter Rope Grip
(Superseded to 281434S)

$3.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 94696

Phillips Screw
(Superseded to 690700)

$3.99

$

In Stock, only 2 left!

0

187

Briggs & Stratton 492790

Fuel Pipe
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188A

Briggs & Stratton 398540

Shoulder Screw
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

284

Briggs & Stratton 94511

Hex Screw
(Superseded to 690940)

$3.99

$

In Stock, Qty 14

0

304

Briggs & Stratton 493294

Blower Housing

$102.99

$

In Stock, only 4 left!

0

305

Briggs & Stratton 94744

Hex Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 94877

Flywheel Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Magneto Armature
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Hex Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

Stop Wire

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 225121

Flywheel Cup
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 281503

Spring Retainer
(Superseded to 692299)

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505

Rachet Pawl
(Superseded to 281505S)

$3.49

$

In Stock, Qty 20+

0

461

Briggs & Stratton 94943

Shoulder Screw
(Superseded to 691696)

$11.99

$

In Stock, Qty 6

0

601

Briggs & Stratton 93053

Fuel Line Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

608

Briggs & Stratton 497680

Rewind Starter

$49.99

$

In Stock, Qty 20+

0

670A

Briggs & Stratton 280512

Spacer (fuel tank)
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

689

Briggs & Stratton 263073

Friction Spring
(Superseded to 691855)

$4.49

$

In Stock, only 3 left!

0

851

Briggs & Stratton 493880

Cable Terminal
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

949

Briggs & Stratton 497233

Rewind Guard

$60.99

$

In Stock, only 1 left!

0

957

Briggs & Stratton 397974

Fuel Tank Cap
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 495224

Fuel Tank
(Superseded to 699374)

$64.99

$

In Stock, Qty 20+

0
