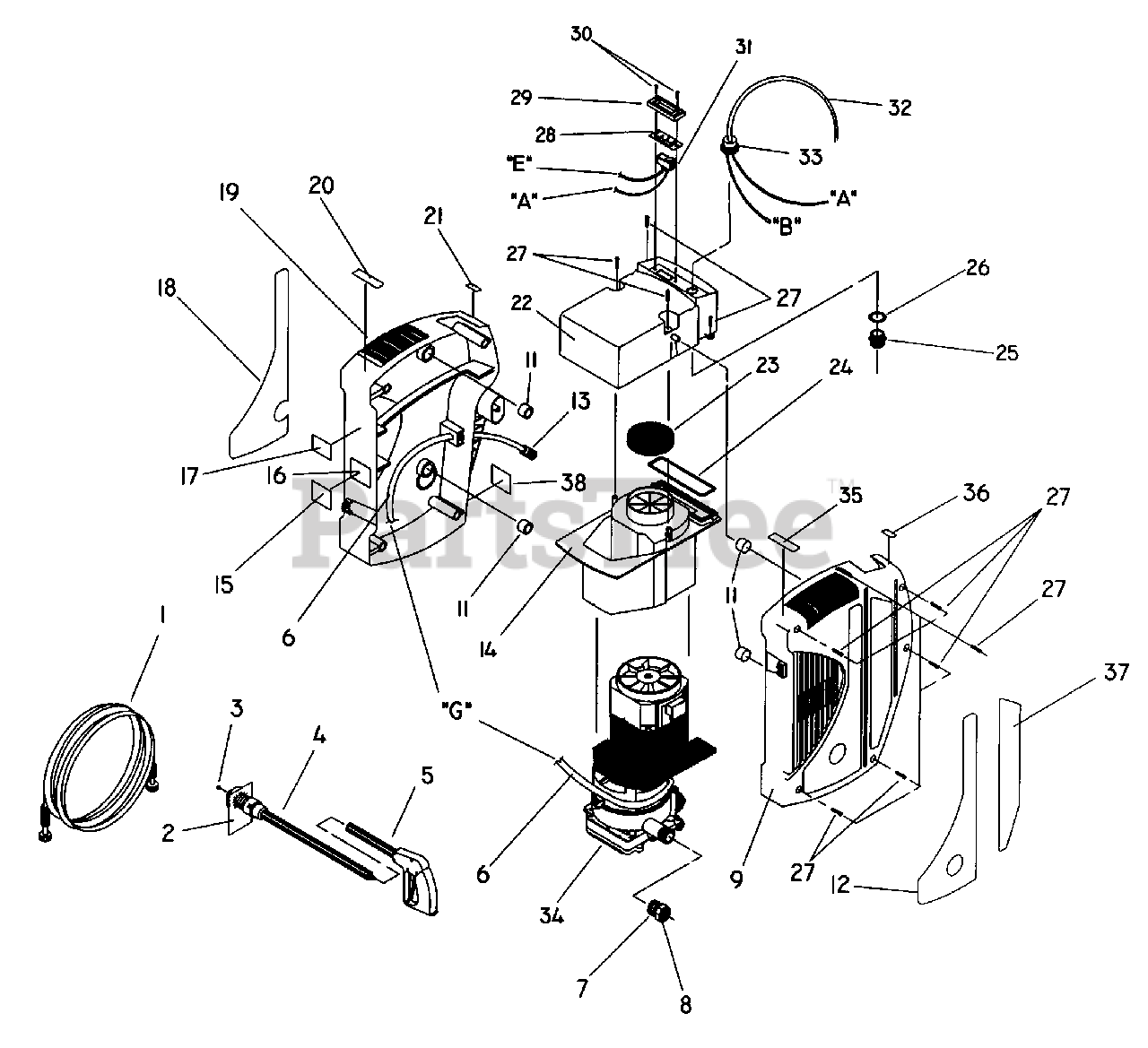

580.677131 (0793-1) - Craftsman 1,300 PSI Pressure Washer Main Unit Parts Diagram

1,300 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B1263

HOSE, High Pressure
(Superseded to B1263GS)

$

$

Not available

2

Briggs & Stratton 98904

HANG TAG CSA, Nozzle
(Superseded to 98904GS)

$

$

Not available

3

Briggs & Stratton B1236D

NOZZLE, 1.15
(Superseded to B1236DGS)

$19.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 95602F

ASSY., Nozzle and Wand Extension
(Superseded to 95602BGS)

$55.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 97809

GUN, Spray
(Superseded to 97809GS)

$102.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton A1040A

HOSE, Chem
(Superseded to A1040AGS)

$

$

Not available

7

Briggs & Stratton 21782

QUICK DISCONNECT, Female

$

$

Not available

8

Briggs & Stratton 21781

QUICK DISCONNECT, Male

$

$

Not available

9

Briggs & Stratton 97694

HOUSING, Inlet
(Superseded to 97694GS)

$

$

Not available

11

Briggs & Stratton 98801

MOUNT, Rubber
(Superseded to 98801GS)

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B1277

DECAL, Instructions
(Superseded to B1277GS)

$

$

Not available

13

Briggs & Stratton B1060

FILTER, Chem Hose
(Superseded to B1060GS)

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B1566

COVER, Motor

$

$

Not available

15

Briggs & Stratton 79552

OVERLAMINATE

$

$

Not available

16

Briggs & Stratton B1714

DECAL, Data

$

$

Currently unavailable

17

Briggs & Stratton B1053

DECAL, ETL
(Superseded to B1053GS)

$

$

Not available

18

Briggs & Stratton A1128

DECAL, Unit
(Superseded to A1128GS)

$

$

Not available

19

Briggs & Stratton 97695

HOUSING, Outlet

$

$

Not available

20

Briggs & Stratton 96307

DECAL, 1-800 #
(Superseded to 96307GS)

$

$

Not available

21

Briggs & Stratton B1415

DECAL, Branch Circuit
(Superseded to B1415GS)

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 97893

HOUSING, Switch and Cord
(Superseded to B1650GS)

$91.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 98806

FOAM, Air In, Fan-end
(Superseded to 98806GS)

$

$

Not available

24

Briggs & Stratton 97835

"O" RING, Hsg Seal, dia. 82.2 x 2.62mm
(Superseded to 97835GS)

$3.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton A1484

NUT, Strain Relief Lock
(Superseded to A1484GS)

$

$

Not available

26

Briggs & Stratton A1485

SEAL RING, Strain Relief

$

$

Not available

27

Briggs & Stratton 84358

SCREW, #6-19 x .75 Plastite
(Superseded to 84358GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 20986

BOOT, Rocker Switch
(Superseded to 5020986)

$32.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 20985

ENCLOSURE, Rocker Switch Boot
(Superseded to 5020985)

$

$

Not available

30

Briggs & Stratton 84543B

SCREW, 35mm x 12mm Plastite
(Superseded to 84543BGS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 20984

SWITCH, Rocker

$

$

Not available

32

Briggs & Stratton 98805

CORD, Power

$

$

Not available

33

Briggs & Stratton 99349

STRAIN RELIEF, Cold
(Superseded to 99349GS)

$

$

Not available

34

ASSY., Motor and Pump

Note: N/A, (See "Pump & Motor" illustration and parts list)

$

$

Not available

35

Briggs & Stratton 98893

DECAL, 1-800 #
(Superseded to 98893GS)

Note: (French)

$

$

Not available

36

Briggs & Stratton B1257

DECAL, CSA Branch Circuit
(Superseded to B1257GS)

$

$

Not available

37

Briggs & Stratton B1285

DECAL, CSA Instructions
(Superseded to B1285GS)

$

$

Not available

38

Briggs & Stratton B2214

DECAL, Potable Water
(Superseded to B2214GS)

$

$

Not available

Briggs & Stratton B1701

Manual
(Superseded to B1701GS)

Note: (Not shown)

$

$

Not available
