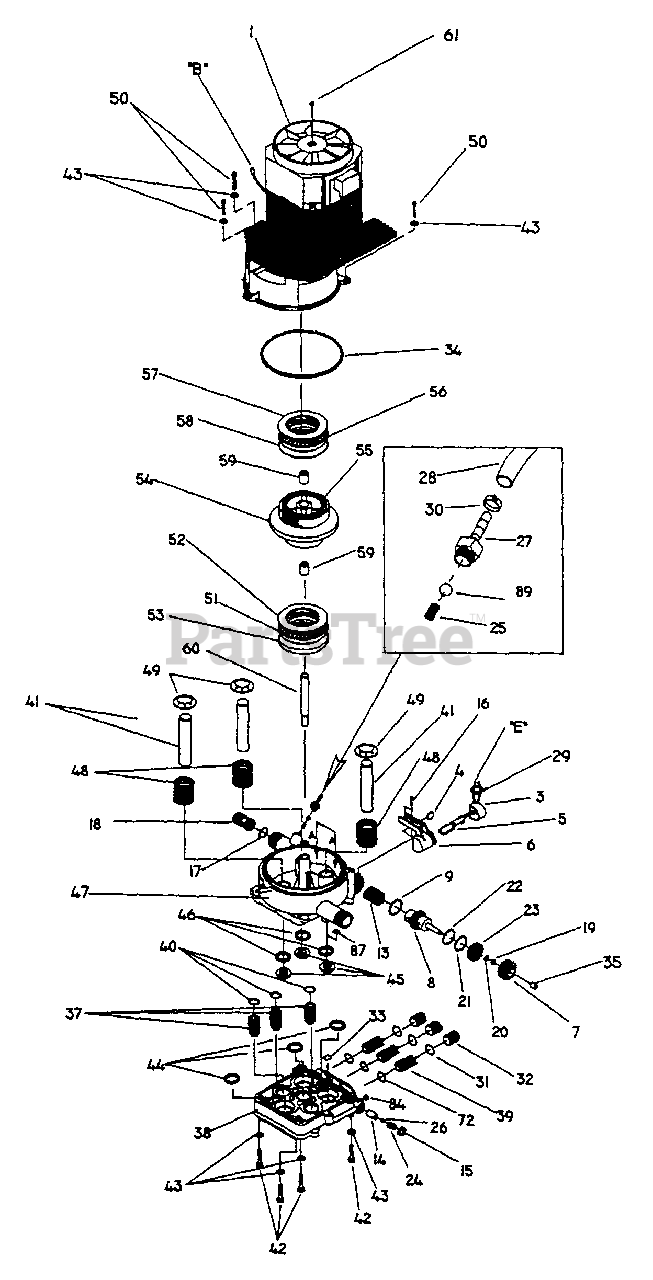

580.677130 (0793-0) - Craftsman 1,250 PSI Pressure Washer Motor Parts Diagram

1,250 PSI Pressure Washer

Motor Parts Diagram

  • Title

1

Briggs & Stratton 21144

Assy, Motor Complete

$

$

Currently unavailable

3

Briggs & Stratton 21054

Boot, Rubber
(Superseded to 21054GS)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 21055

Grommet, Rubber

$

$

Not available

5

Briggs & Stratton 20138

Switch, Auto
(Superseded to 20138GS)

$8.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 20928

Housing, Auto-switch
(Superseded to 5020928)

$6.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 20218

Cap, Retainer
(Superseded to 20218GS)

$9.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 21342

Ass'y, Piston

$

$

Currently unavailable

9

Briggs & Stratton 21525

Wiper, Piston Bore
(Superseded to 21525GS)

$

$

Not available

13

Briggs & Stratton 20212

Spring 15.08 x dia. 1.62CS x 22.3mm
(Superseded to 20212GS)

$1.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton A1132

Seat, Ball
(Superseded to A1132GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton A1131

Plug, Expansion
(Superseded to A1131GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1495

Taptite M4-0.7 x 10mm, Switch Mounting
(Superseded to A1495GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B1077

"O" Ring, Venturi
(Superseded to B1077GS)

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B1060

Venturi, Chem. Injector
(Superseded to B1060GS)

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 21124

Ring, Backup dia. 4.34 Id x 1.24
(Superseded to 5021124)

$37.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 21123

"O" Ring dia. 3.68 Id x 1.78 CS [.070"]

$

$

Not available

21

Briggs & Stratton 21126

Ring, Backup dia. 26.0 ID
(Superseded to 5021126)

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 21125

"O" Ring dia. 25.07 ID x 2.62 CS [.103"]
(Superseded to 21125GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 20217

Stop, Piston Return
(Superseded to 20217GS)

$5.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1130

Spring, Pop-off Valve
(Superseded to A1130GS)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 95380

Spring, Chem. Injector
(Superseded to 95380GS)

$

$

Not available

26

Briggs & Stratton 97852

Ball, dia. 3/16" Pop-off Valve
(Superseded to 97852GS)

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton A1575

Barb, Hose, Brass with nylon Insert
(Superseded to A1575GS)

$

$

Not available

28

Briggs & Stratton A1040A

Hose, Chem
(Superseded to A1040AGS)

$10.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 28739A

Tie Wrap
(Superseded to 28739AGS)

$1.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 48031G

Hose Clamp, 3/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 97840

"O" Ring, Hi-press Port dia. 15.6 x 1.78mm
(Superseded to 97840GS)

$5.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 97841

Cap, Check Valve
(Superseded to 97841GS)

$

$

Not available

33

Briggs & Stratton 97837

"O" Ring, Hi-press Trans dia. 9.2 x 2.62mm
(Superseded to 97837GS)

$3.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 97835

"O" Ring, Hsg Seal, dia. 82.2 x 2.62mm
(Superseded to 97835GS)

$3.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton B1026

Vinyl Cap

$

$

Not available

37

Briggs & Stratton 97838

Assy., Check Valve, Inlet

$

$

Currently unavailable

38

Briggs & Stratton A1111A

Head Pump
(Superseded to A1111AGS)

$60.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 97839

Assy., Check Valve, Outlet
(Superseded to 97839GS)

$5.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 97851

"O" Ring, Piston dia. 10.82 x 1.78mm
(Superseded to 97851GS)

$3.99

$

In Stock, only 2 left!

0

41

Briggs & Stratton 97832

Piston. dia. 15 x 65mm
(Superseded to 97832GS)

$39.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 40946

Bolt, SHCS M6-1.0 x 35mm

$

$

Not available

43

Briggs & Stratton 93873

Lockwasher, M6 Ribbed

$4.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 93667

Seal, Piston "U" Cup
(Superseded to 93667GS)

$9.99

$

In Stock, Qty 10

0

45

Briggs & Stratton 97831

Spacer, Pilot
(Superseded to 97831GS)

$5.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 93680

Seal, Oil-piston dia. 15 TC4
(Superseded to 93680GS)

$7.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 20140

Housing, Piston
(Superseded to 20140GS)

$78.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 99503

Spring. Piston Return
(Superseded to 99503GS)

$3.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 97830

Retainer, Piston Spring
(Superseded to 97830GS)

$10.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 97962

Bolt, SHCS M6-1.0 x 25mm
(Superseded to 97962GS)

$3.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 97824A

Bearing, Needle dia. 40 x 60mm
(Superseded to 97824AGS)

$14.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 97826

Washer, Brg dia. 40 x 60 x 1mm
(Superseded to 97826GS)

$6.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 97825

Washer, Brg dia. 36 x 60 x 6mm
(Superseded to 97825GS)

$15.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 97716

Cam, Axial 4.3 Mm Stroke
(Superseded to 97716GS)

$23.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 97829

Gear, Axial Cam
(Superseded to 97829GS)

$26.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 97822

Brg Needle Thrust dia. 35 x 52mm
(Superseded to 97822GS)

$14.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 20610

Washer, Brg dia. 35 x 55 x 3mm
(Superseded to 20610GS)

$6.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 97823

Washer, Brg dia. 35 x 52 x 1mm
(Superseded to 97823GS)

$7.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 97834

Bearing, Needle dia. 8 x 12 x 10mm
(Superseded to 97834GS)

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 97833

Shaft, Idler Axial Cam
(Superseded to 97833GS)

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B1125

Nut. M5-0.8 LH Thread

$

$

Not available

72

Briggs & Stratton 97934

"O" Ring, Chk Valve dia. 12.4 x 1.78mm
(Superseded to 97934GS)

$3.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 76353A

Plug, Taper dia. 5.4

$

$

Not available

87

Briggs & Stratton 97855

"O" Ring dia. 6.5 x 2.01 mm
(Superseded to 97855GS)

$3.49

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 95379

Ball, Chemical Injector

$

$

Not available

Briggs & Stratton B1245

Owner's Manual
(Superseded to B1245GS)

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199

Rotating Brush Kit
(Superseded to 7175199GS)

Note: Optional Accessories, Not Shown

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175189

Utility Brush Kit
(Superseded to 7175189GS)

Note: Optional Accessories, Not Shown

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175190

Broom Brush Kit
(Superseded to 7175190GS)

Note: Optional Accessories, Not Shown

$89.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175184

Electric Turbo Nozzle
(Superseded to 7175184GS)

Note: Optional Accessories, Not Shown

$64.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187

Garden Hose Quick-connect Kit
(Superseded to 7175187GS)

Note: Optional Accessories, Not Shown

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175100

Multipurpose Cleaner

Note: Optional Accessories, Not Shown

$

$

Currently unavailable

Briggs & Stratton 7175101

Deck Wash
(Superseded to 100524GS)

Note: Optional Accessories, Not Shown

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175102

Vehicle Wash

Note: Optional Accessories, Not Shown

$

$

Currently unavailable

Briggs & Stratton 7175103

Degreaser

Note: Optional Accessories, Not Shown

$

$

Currently unavailable

Briggs & Stratton 7175104

Spray Wax

Note: Optional Accessories, Not Shown

$

$

Currently unavailable

Briggs & Stratton 7175183

Multipurpose Storage Bracket
(Superseded to 7175183GS)

Note: Optional Accessories, Not Shown

$22.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7176477

Electric Cart
(Superseded to 7176477GS)

Note: Optional Accessories, Not Shown

$47.99

$

Usually ships in 2-12 days
