580.676660 (020249-0) - Craftsman 2,200 PSI Pressure Washer, Canada Pump Parts Diagram

2,200 PSI Pressure Washer, Canada

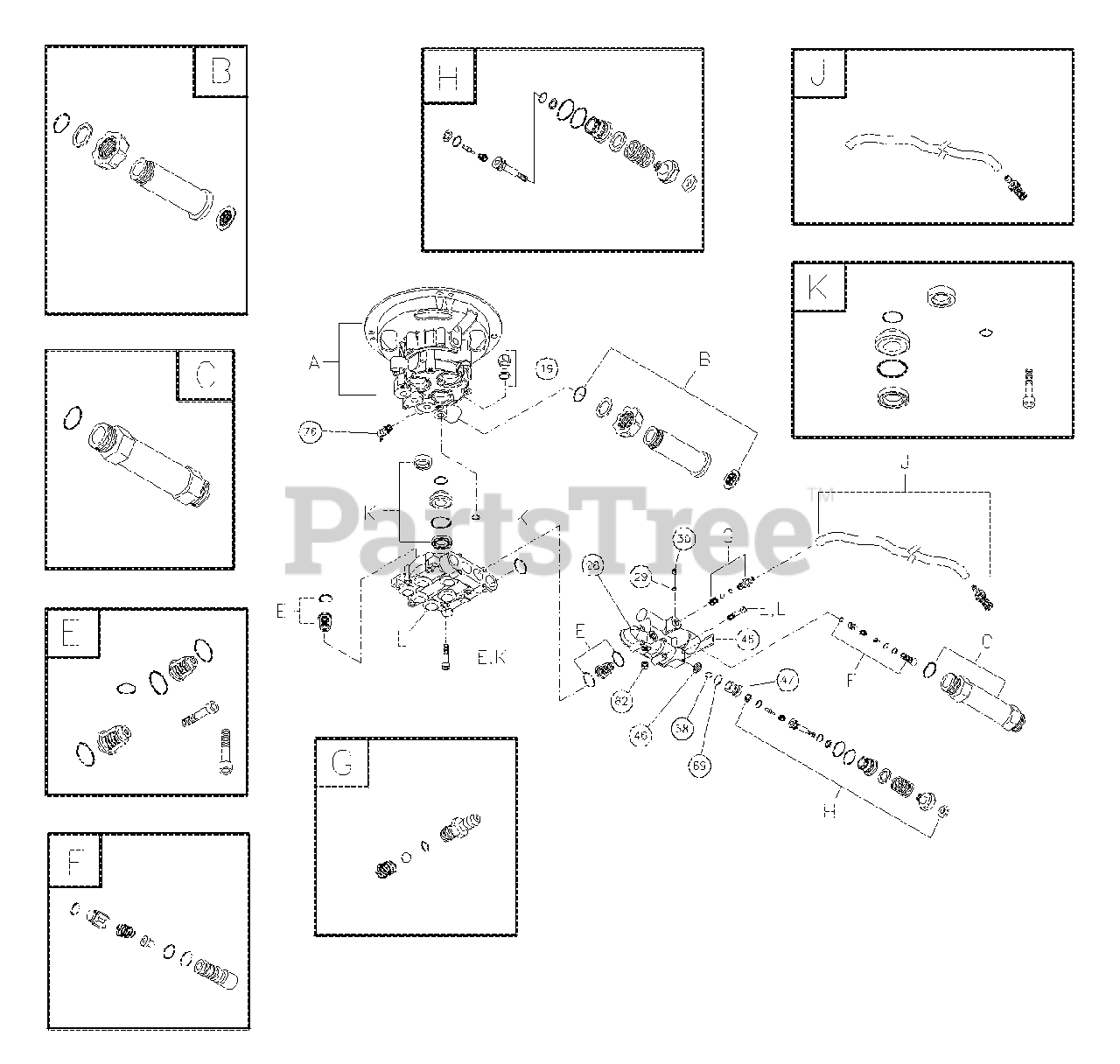

Pump Parts Diagram

  • Title

19

Briggs & Stratton 190571GS

CAP, Oil

$

$

Not available

28

Briggs & Stratton 190627GS

MANIFOLD

$100.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 190575GS

O-RING
(Superseded to 193971GS)

$7.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 190576GS

SCREW
(Superseded to 193971GS)

$7.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 190578GS

PIN

$

$

Not available

46

Briggs & Stratton 190629GS

VALVE, Seat Plate, Plastic

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 190630GS

VALVE, Seat, Plastic

$4.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 190581GS

CAP

$7.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 190582GS

BALL, SS
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

69

Briggs & Stratton 190584GS

O-RING
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

76

Briggs & Stratton 194298GS

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

A

NSP

ASSY, CASE, PISTON (order complete pump assy, 191693GS)

Note: Service kit includes all parts shown within the box.

$

$

Not available

B

Briggs & Stratton 190632GS

KIT, WATER INLET, ALUM

Note: Service kit includes all parts shown within the box.

$

$

Not available

C

Briggs & Stratton 190634GS

KIT, OUTLET, ALUM
(Superseded to 201497GS)

Note: Service kit includes all parts shown within the box.

$28.99

$

In Stock, Qty 20+

0

E

Briggs & Stratton 190591GS

KIT,CHECK VALVES

Note: Service kit includes all parts shown within the box.

$40.99

$

In Stock, Qty 5

0

F

Briggs & Stratton 190592GS

KIT, INLET CHECK

Note: Service kit includes all parts shown within the box.

$20.99

$

In Stock, Qty 6

0

G

Briggs & Stratton 190593GS

KIT, CHEMICAL INJECTION

Note: Service kit includes all parts shown within the box.

$

$

Not available

H

Briggs & Stratton 190628GS

KIT, UNLOADER STEM

Note: Service kit includes all parts shown within the box.

$

$

Not available

J

Briggs & Stratton 189971GS

KIT, CHEMICAL HOSE

Note: Service kit includes all parts shown within the box.

$

$

Not available

K

Briggs & Stratton 190636GS

KIT, SEAL SET

Note: Service kit includes all parts shown within the box.

$

$

Not available

L

NSP

KIT, HEAD, ALUM

Note: Service kit includes all parts shown within the box.

$

$

Not available
