580.676641 (020248-1) - Craftsman 2,000 PSI Pressure Washer, Canada Main Unit Parts Diagram

2,000 PSI Pressure Washer, Canada

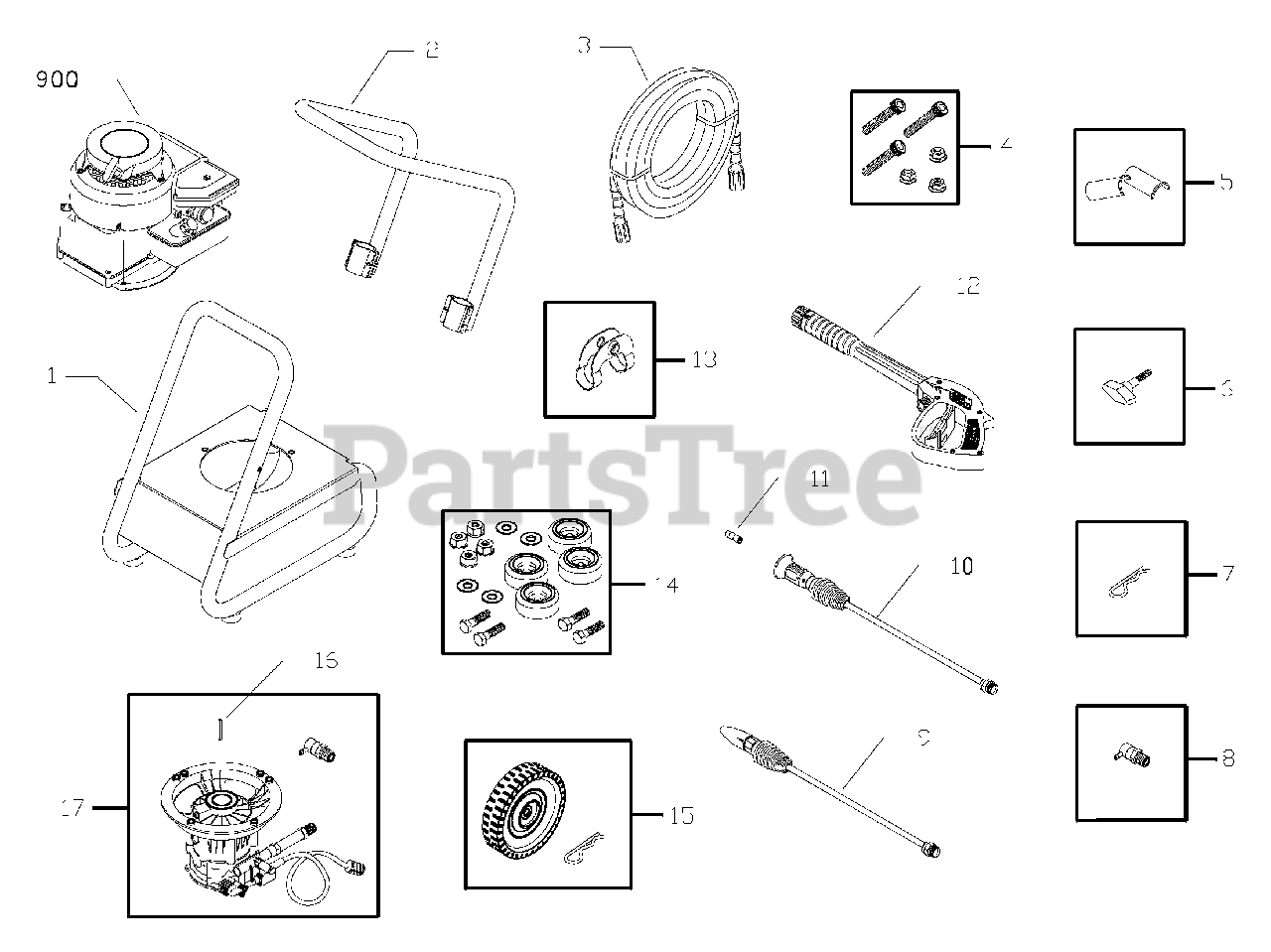

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 196519GS

BASE

$192.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton R197175GS

HANDLE

$63.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton 192525GS

KIT, Pump/Engine Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 196899GS

KIT, Insert Plastic

$7.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 196630GS

KNOB

$7.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 87005AGS

PIN, Quick Release
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 194298GS

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 194343BGS

WAND, Turbo
(Superseded to 209318GS)

$64.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 194344DGS

WAND, Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 193609DGS

ORIFICE

$40.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 196037GS

FOOT, Mounting

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 198766GS

KIT, Vibration Mount

$12.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 196895GS

KIT, Wheel

$20.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 197300GS

ASSY, Pump
(Superseded to 206383GS)

Note: (see "Pump")

$

$

Not available

900

NSP

ENGINE

Note: (see pages 27-29); (9L902-0132-E1)

$

$

Not available

Briggs & Stratton 197195GS

MANUAL, Operator's

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 196859GS

KIT, Decals

Note: Items Not Illustrated

$27.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL, Bottle, Engine

Note: Items Not Illustrated

$

$

Not available

Briggs & Stratton 196038GS

AXLE

Note: Items Not Illustrated

$16.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 196905GS

DECAL, Clean/Carry

Note: Items Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193581GS

DECAL, Engine, Muffler

Note: Items Not Illustrated

$7.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 191922GS

KIT, Maintenance, O-Ring

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 7167300GS

House Wash Concentrate (makes 4 gallons)

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167301GS

Deck Wash Concentrate (makes 2 gallons)

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167303GS

Degreaser Concentrate (makes 4 gallons)

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable
