580.676551 (0567-1) - Craftsman 5,500 Watt Portable Generator Repair Parts Drawing No. 98466 Parts Diagram

5,500 Watt Portable Generator

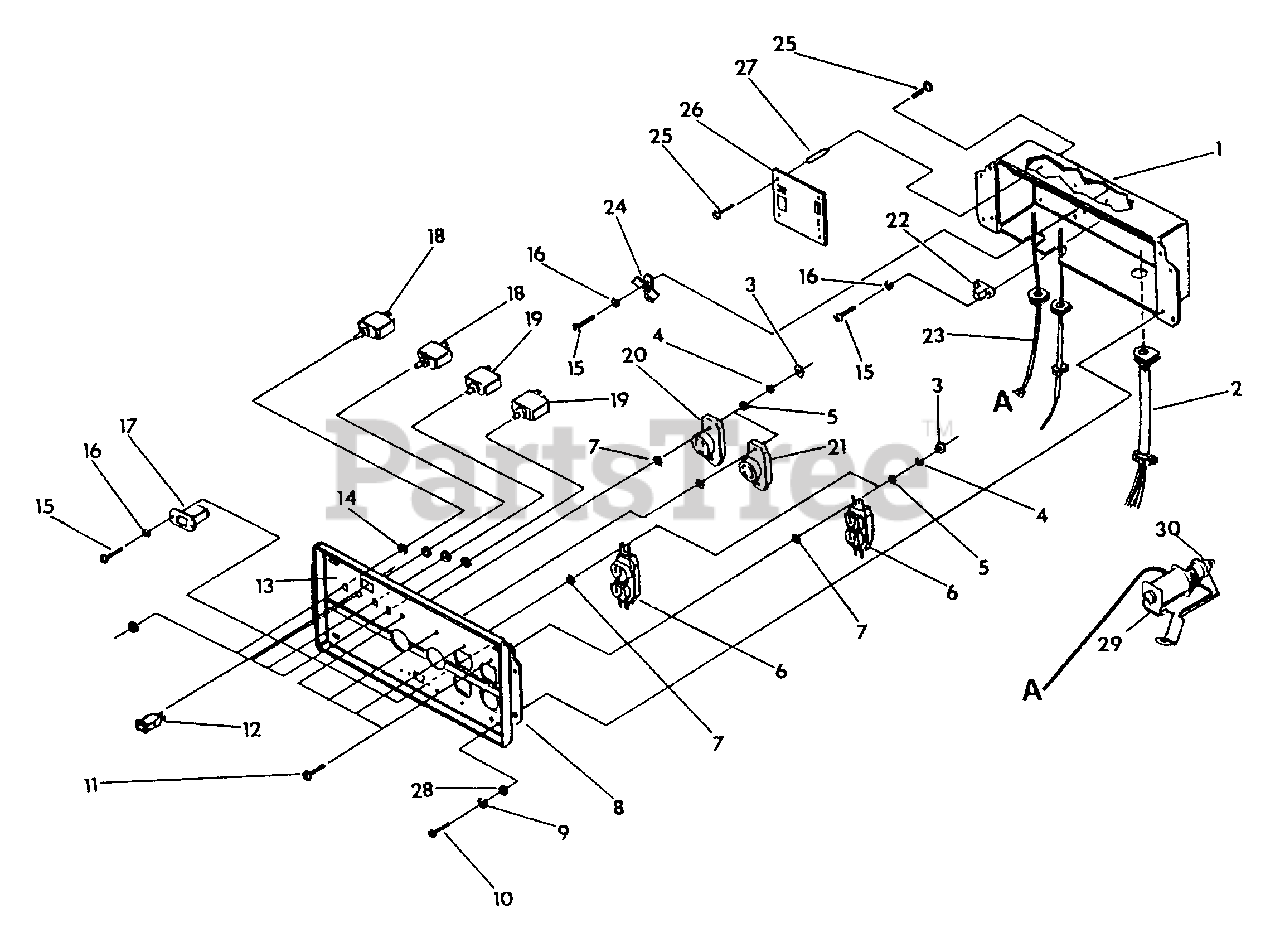

Repair Parts Drawing No. 98466 Parts Diagram

  • Title

1

Briggs & Stratton 92069

Control Panel Box

$

$

Not available

2

Briggs & Stratton 84134

Rubber Connector Grommet
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 22264

No. 8 (M4) Lock Washer

$

$

Not available

5

Briggs & Stratton 43180

M4 Flat Washer
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 63025

120 Volts, 15 amp Duplex Outlet
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23365

No. 8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 92569

Control Panel

$

$

Not available

9

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 91526

M5-0.8 x 12mm Screw

$

$

Not available

11

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

12

Briggs & Stratton 82538

Idle Control Switch
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 98446

Control Panel Decal
(Superseded to 98446GS)

$26.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 82881

7/16" Int. Lock Washer
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 66822

12 Volts Outlet & Retaining Bracket
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

18

75207A

30 Amp Circuit Breaker

$

$

Not available

19

Briggs & Stratton 75207D

15 Amp Circuit Breaker
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 43437

120/240 Volts, 30 Ampere Locking Type Outlet

$

$

Not available

21

Briggs & Stratton 68868

120 Volts 30 Amp Locking Type Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87962

12 volts, 10 amp Automatic Circuit Breaker
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84335

Wire Harness Assembly
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84028

Idle Control Transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 64526

No. 6-32 x 3/8" Screw

$

$

Not available

26

Briggs & Stratton 83970

System Control Board
(Superseded to 83970GS)

$

$

Not available

27

Briggs & Stratton 64525

3/4" Hex Stand-off

$

$

Currently unavailable

28

Briggs & Stratton 23897

#10 (M5) Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 73101

Gov. Adjustment Bracket

$

$

Currently unavailable

30

Briggs & Stratton 66311

M8-1.25 Hex JAM Nut

$

$

Currently unavailable
