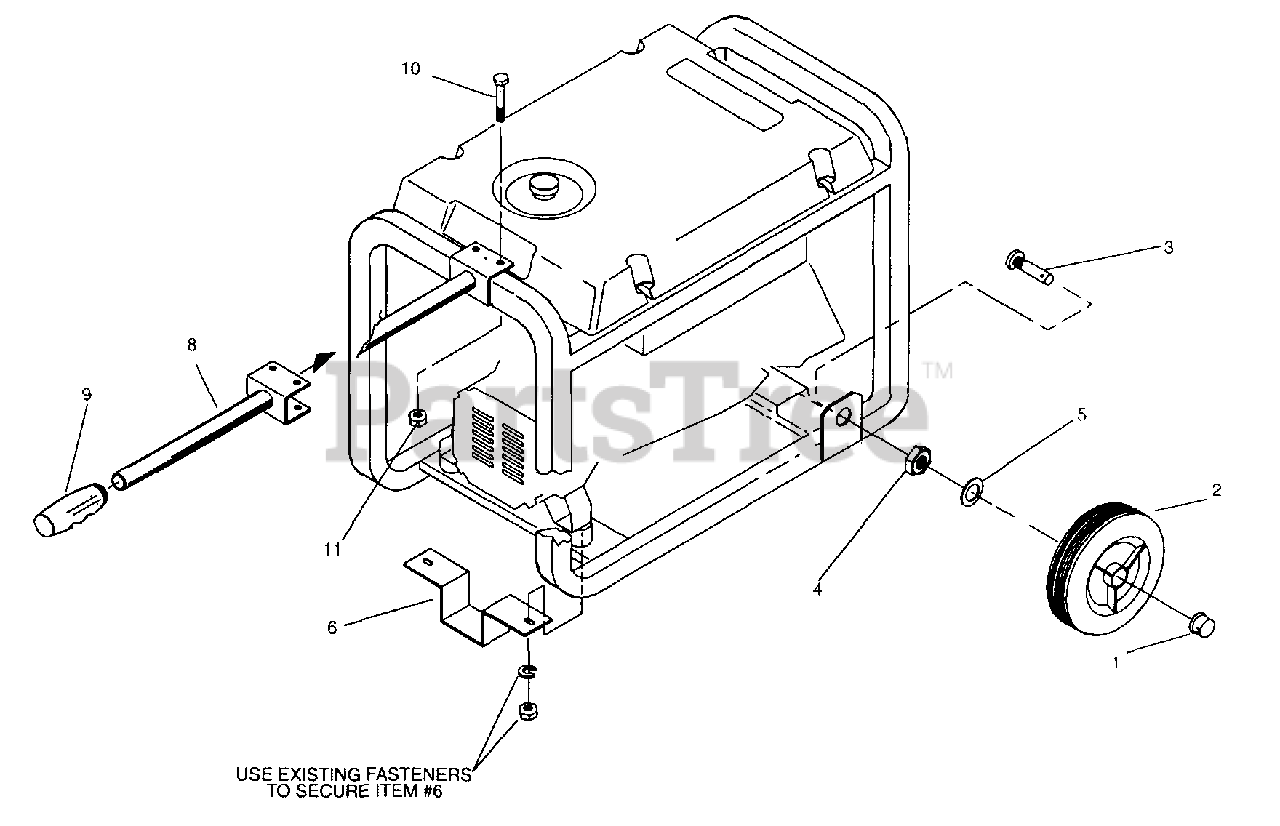

580.676351 (0562-1) - Craftsman 3,500 Watt Portable Generator Wheel Kit Parts Diagram

3,500 Watt Portable Generator

Wheel Kit Parts Diagram

  • Title
1

Briggs & Stratton 75402

Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

2

Briggs & Stratton 91904

Wheel, 8" Dia
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

3

Briggs & Stratton 93728

Stud, Axle
(Superseded to 93728GS)

$7.49

$

In Stock, Qty 13

0

4

Briggs & Stratton 94222Q

Jam Nut, 5/8"-18 Locking
(Superseded to 94222QGS)

$3.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 49808

Washer, Flat
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 94034

Leg, Mounting

$

$

Not available

8

Briggs & Stratton 84910

Handle, Lifting
(Superseded to 189715GS)

$54.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 75928

Grip, Handle
(Superseded to 75928GS)

$

$

Not available

10

Briggs & Stratton 39287

Cap Screw, M8-1.25
(Superseded to 39287GS)

$3.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 52858

Hex Nut, M8-1.25 Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0
