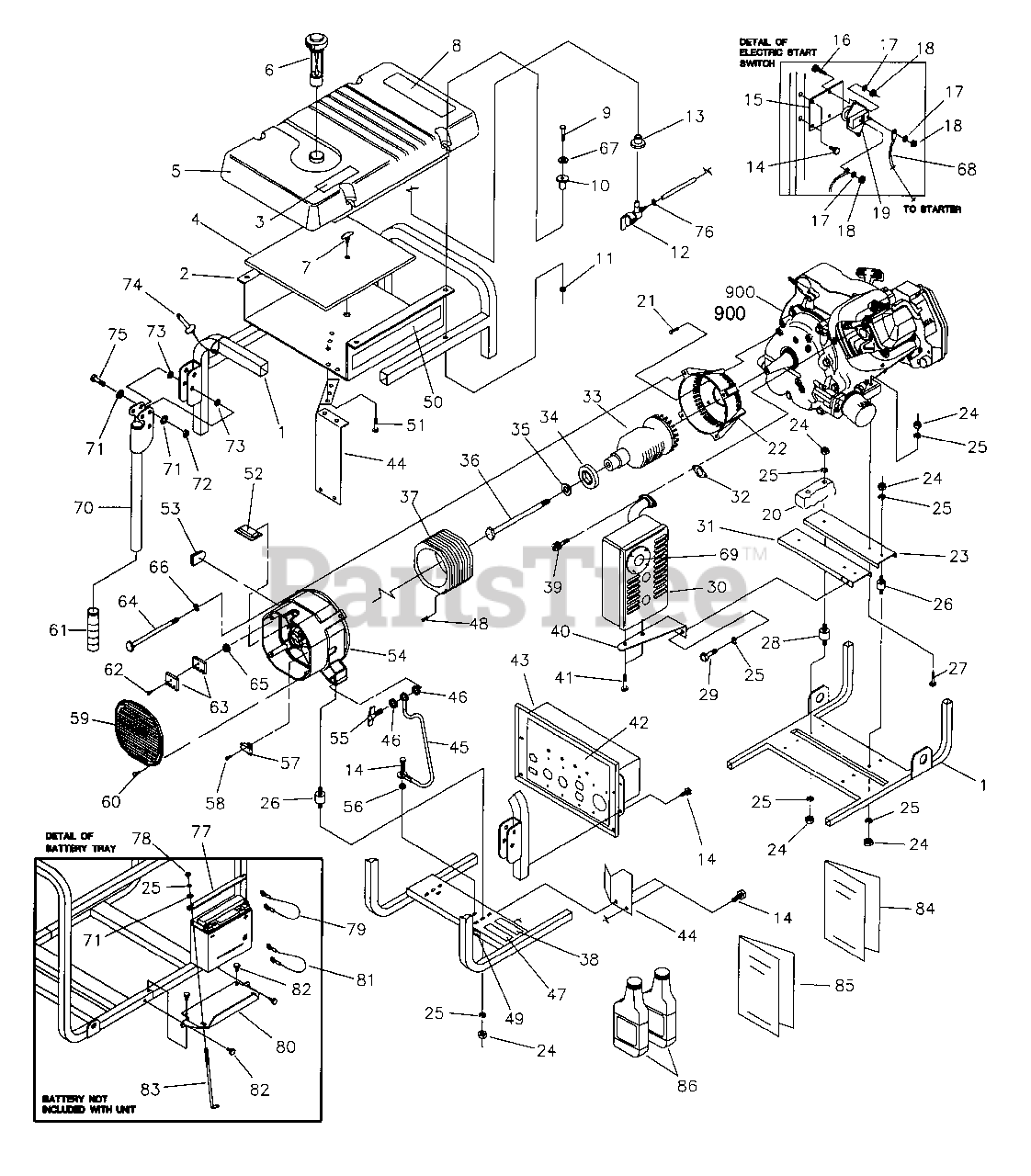

580.329180 (1527-0) - Craftsman 7,500 Watt Portable Generator Main Unit Parts Diagram

7,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title
1

Briggs & Stratton B187024

CRADLE
(Superseded to B187024GS)

$

$

Not available

2

Briggs & Stratton B92039

SHIELD, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92665

INSULATION, #2-1/4" Thick
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B1998

TANK, Fuel
(Superseded to 193500GS)

$

$

Not available

6

Briggs & Stratton B4363

CAP, with Gauge, Fuel
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 85000

CLIP, Insulation
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 93826

DECAL, Start Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 57058

HHMS, M6-1.0 x 55
(Superseded to 57058GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 83465

GROMMET, Tank
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

11

Briggs & Stratton 77395

NUT, Flange Lock - M6
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 80270

VALVE, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 78299

BUSHING, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton B2153

SCREW, 12-14 x 7/8, Self Drilling
(Superseded to B2153GS)

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 78289

BRACKET, Starter Switch
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22287

SCREW, 1/4 - 20 x 3/4
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22097

LOCKWASHER, M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22127

NUT, 1/4 - 20 Hex

$

$

Not available

19

Briggs & Stratton 77282

SWITCH, Starter

$

$

Not available

20

UNKNOWN

$

$

Not available

21

Briggs & Stratton 86307

HHMS, 5/16-24 x 3/4 SEMS
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 92247

HOUSING, Engine Adapter
(Superseded to 92247GS)

$122.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B92531

SUPPORT, Engine
(Superseded to B92531GS)

$30.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 25244

NUT, 5/16-18 Jam
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 22129

WASHER, Lock - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 82857

MOUNT, Vibration
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 22531

HHCS, 5/16-18 x 1-3/4"
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 92609

MOUNT, Vibration
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 22142

SCREW, 5/16 - 18 x 3/4
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton A7433

MUFFLER
(Superseded to A7433GS)

$

$

Not available

31

Briggs & Stratton B92731

SUPPORT, Engine & Muffler
(Superseded to B92731GS)

$23.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 90239

GASKET, Muffler
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B1342G

ASSEMBLY, Rotor
(Superseded to B1342GGS)

$521.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 96796

WASHER, Special Flat - M8
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 47481

HHCS, 5/16-24 x 10.625
(Superseded to 47481GS)

$12.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B1897G

ASSEMBLY, Stator
(Superseded to B1897AGS)

$969.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 96409

DECAL, 1-800
(Superseded to 96409GS)

$8.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 40976

SCREW, M8 - 1.25 x 20

$

$

Not available

40

Briggs & Stratton 92532

BRACKET, Muffler
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 66476

CAPSCREW, M6 - 1.0 x 12mm
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 186940

DECAL, Control Panel
(Superseded to 186940GS)

$10.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton B4366B

ASSEMBLY, Control Box
(Superseded to B4366BGS)

$

$

Not available

44

Briggs & Stratton B96068

SHIELD, Heat
(Superseded to 192983GS)

$38.99

$

Usually ships in 2-12 days

0

45

14353621

WIRE, Ground

$

$

Not available

46

Briggs & Stratton 26850

LW, EXT, Shakeproof M6

$

$

Not available

47

Briggs & Stratton B4901

DECAL, 1-800-4-My Home

$

$

Currently unavailable

48

Briggs & Stratton 81917

PIN, Roll 4mm x 10
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton B4986

DECAL, Ground
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton B1899

DECAL, Heat Shield
(Superseded to B1899GS)

$13.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 56893

CRIMPTITE, 10-24 x 1/2
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

52

Briggs & Stratton 84132

ASSEMBLY, Power Regulator
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 66825C

CARRIER, Rear Bearing
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 86494

SCREW, M6-1.0 x 16 Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 22769

WASHER, Shakeproof Int. #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 66386

ASSEMBLY, Brush Holder
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 66849

TAPTITE, M5-0.8 x 16
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

59

Briggs & Stratton B4871

COVER, Bearing Carrier
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 74908

TAPTITE, M5-0.8 x 10
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

62

Briggs & Stratton 66849C

TAPTITE, M5-0.8 x 30
(Superseded to 66849CGS)

$4.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

64

Briggs & Stratton 66449L

BOLT, Stator M6-1 x 190mm
(Superseded to 66449LGS)

$30.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 23762

SHAKEPROOF, Ext. #10
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 22097

LOCKWASHER, 1/4" - M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

67

22473

WASHER, M6 Flat

$

$

Not available

68

Briggs & Stratton 96113

WIRE ASSY., Start
(Superseded to 96113GS)

$26.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 83083

SCREEN, Spark Arrester
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

$

$

Currently unavailable

71

Briggs & Stratton 22145

WASHER, Flat, 5/16 - M8

$

$

Not available

72

Briggs & Stratton 49820

NUT, M8 Nylok

$

$

Not available

73

Briggs & Stratton 187104

WASHER, Nylon
(Superseded to 187104GS)

$4.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton B4135

PIN, with Lanyard
(Superseded to B4135GS)

$

$

Not available

75

Briggs & Stratton 51731

HHCS, M8 - 1.25 x 50

$

$

Not available

76

Briggs & Stratton 48031C

CLAMP, 1/2" Hose

$

$

Not available

77

Briggs & Stratton B96925

BRACKET, Battery Hold Down
(Superseded to B96925GS)

$10.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 45771

NUT, M8 - 1.25

$

$

Not available

79

Briggs & Stratton 15453621

WIRE, 6 AWG, Red
(Superseded to 15453621GS)

$

$

Not available

80

Briggs & Stratton B96923

TRAY, Battery
(Superseded to B96923GS)

$32.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 15553621

WIRE, 8 AWG, Black
(Superseded to 15553621GS)

$

$

Not available

82

Briggs & Stratton 58443

CRIMPTITE, 1/4 - 20 x 5/8
(Superseded to 58443GS)

$3.49

$

In Stock, Qty 6

0

83

Briggs & Stratton 96924

J-BOLT, Battery Hold Down
(Superseded to 96924GS)

$7.49

$

Usually ships in 2-12 days

0

84

$

$

Not available

85

Briggs & Stratton 187205

MANUAL, Transfer Switch

$

$

Not available

86

Briggs & Stratton AB3061

BOTTLE, Oil
(Superseded to BB3061GS)

$13.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE, 15 HP

$

$

Not available

Briggs & Stratton 37806

125V 30A Locking plug
(Superseded to 100523GS)

Note: Parts Not Illustrated:

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438

240V 30A Locking plug
(Superseded to 43438GS)

Note: Parts Not Illustrated:

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787

Battery charge cable

Note: Parts Not Illustrated:

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 0932688

Cord Wrap Kit

Note: Optional Accessories:

$

$

Currently unavailable

Briggs & Stratton 0932684

Storage Cover

Note: Optional Accessories:

$

$

Currently unavailable
