580.329180 (1527-0) - Craftsman 7,500 Watt Portable Generator Low Oil Shutdown And Governor (Part 1) Parts Diagram

7,500 Watt Portable Generator

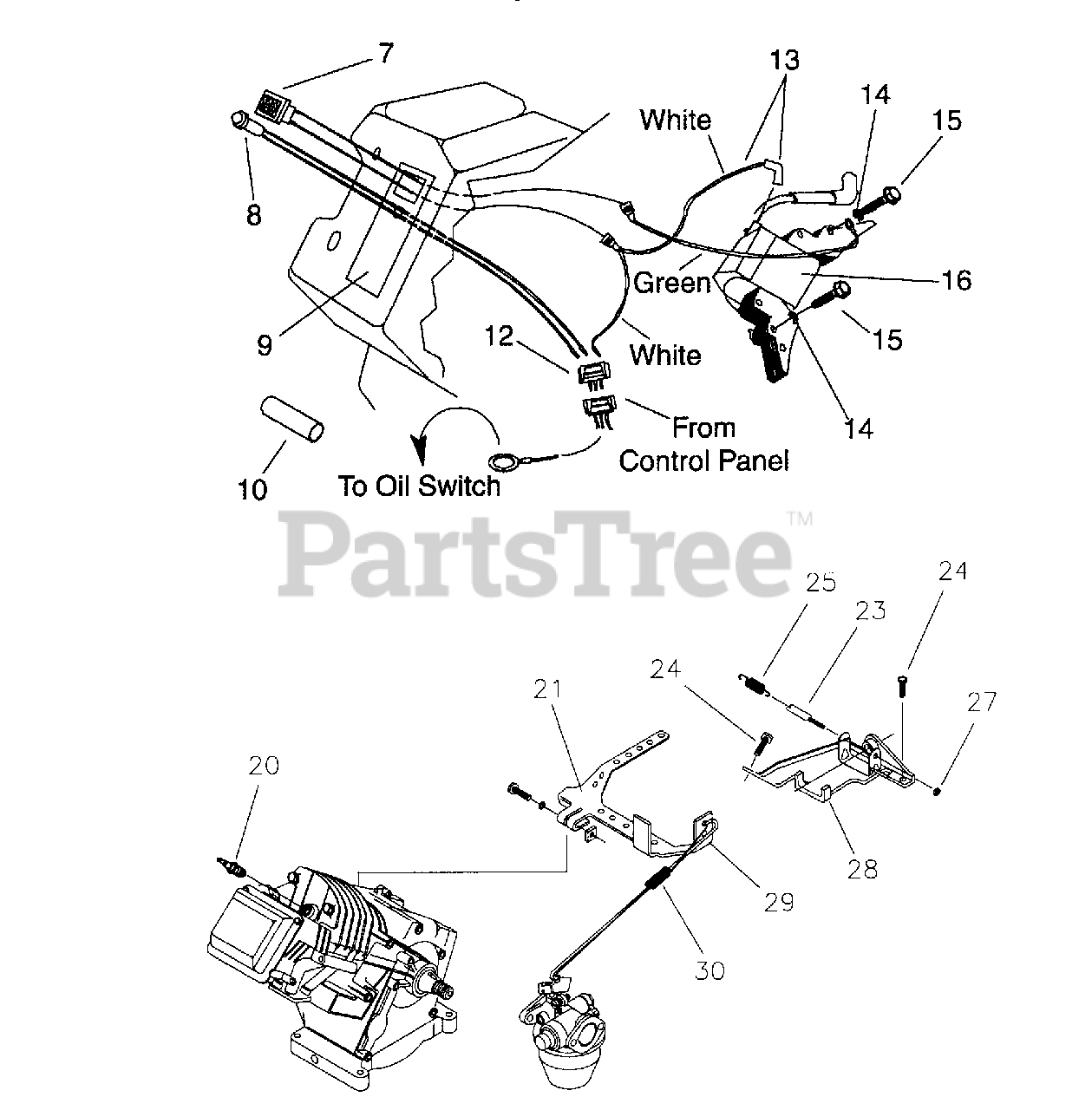

Low Oil Shutdown And Governor (Part 1) Parts Diagram

  • Title
7

Briggs & Stratton 78653

Run/Stop Switch
(Superseded to 78653GS)

$

$

Not available

8

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Briggs & Stratton 93611

Black Sleeving

$

$

Not available

12

Briggs & Stratton 84329

3 Pin Male Hsg.

$

$

Currently unavailable

$

$

Currently unavailable

14

Briggs & Stratton 22097

M6 Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 92079

M6 x 30 Taptite
(Superseded to 7092079YP)

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84542

Ignition Coil

$

$

Currently unavailable

20

Briggs & Stratton 72347

Spark plug
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

21

Briggs & Stratton 72734

Governor Lever

$

$

Not available

23

$

$

Not available

24

Briggs & Stratton 83512

M8 x 15 Taptite
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 73100

60Hz Gov. Spring
(Superseded to 7073100SM)

$9.99

$

Usually ships in 2-12 days

0

27

$

$

Currently unavailable

28

Briggs & Stratton 73101

Governor Bracket

$

$

Currently unavailable

29

$

$

Not available

30

Briggs & Stratton 72789

Anti-Lash Spring

$

$

Currently unavailable
