580.328450 (9024-0) - Craftsman 5,000 Watt Portable Generator Rewind Starter No. 590633 (10/95) Parts Diagram

5,000 Watt Portable Generator

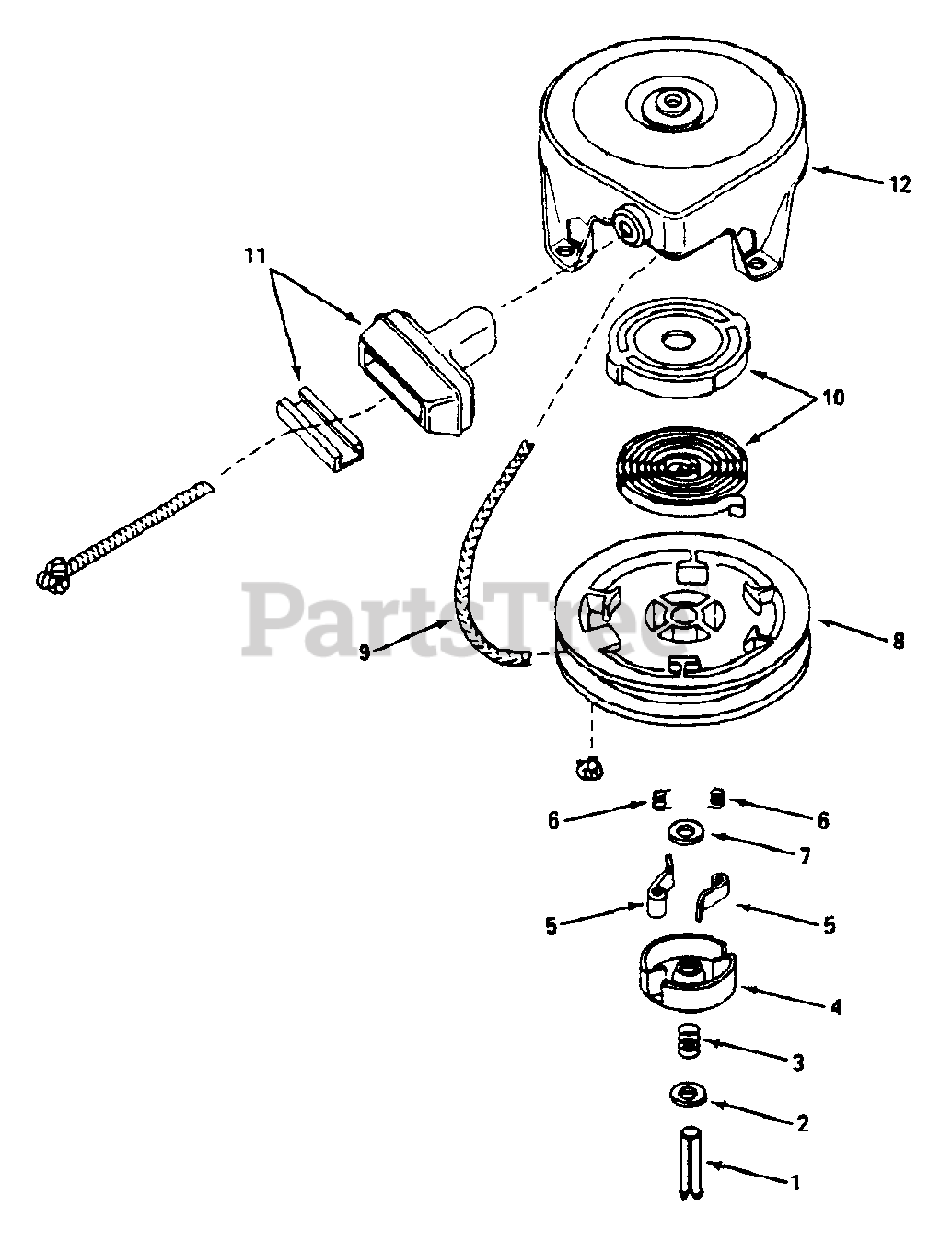

Rewind Starter No. 590633 (10/95) Parts Diagram

  • Title

Briggs & Stratton 590633

Starter, Rewind

$3.99

$

In Stock, only 2 left!

0

1

Briggs & Stratton 590599A

Pin, Spring

Note: (Incl. No. 7)

$

$

Currently unavailable

2

Briggs & Stratton 590600

Washer

$

$

Currently unavailable

3

Briggs & Stratton 590598

Spring, Brake

$

$

Currently unavailable

4

Briggs & Stratton 590627

Retainer

$5.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 590641

Dog, Starter

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 590617

Spring, Dog

$145.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 590601

Washer

$18.99

$

In Stock, Qty 10

0

8

Briggs & Stratton 590632

Pulley

$3.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 590451A

Rope, Starter

$

$

Currently unavailable

10

Briggs & Stratton 590629

Spring & Keeper Assy.

$

$

Currently unavailable

11

Briggs & Stratton 590387

Handle Assy., Starter

$

$

Currently unavailable

12

Briggs & Stratton 590634

Housing Assy., Starter

$

$

Currently unavailable
