580.328392 (9374-2) - Craftsman 8,000 Watt Portable Generator Gasket Sets Parts Diagram

8,000 Watt Portable Generator

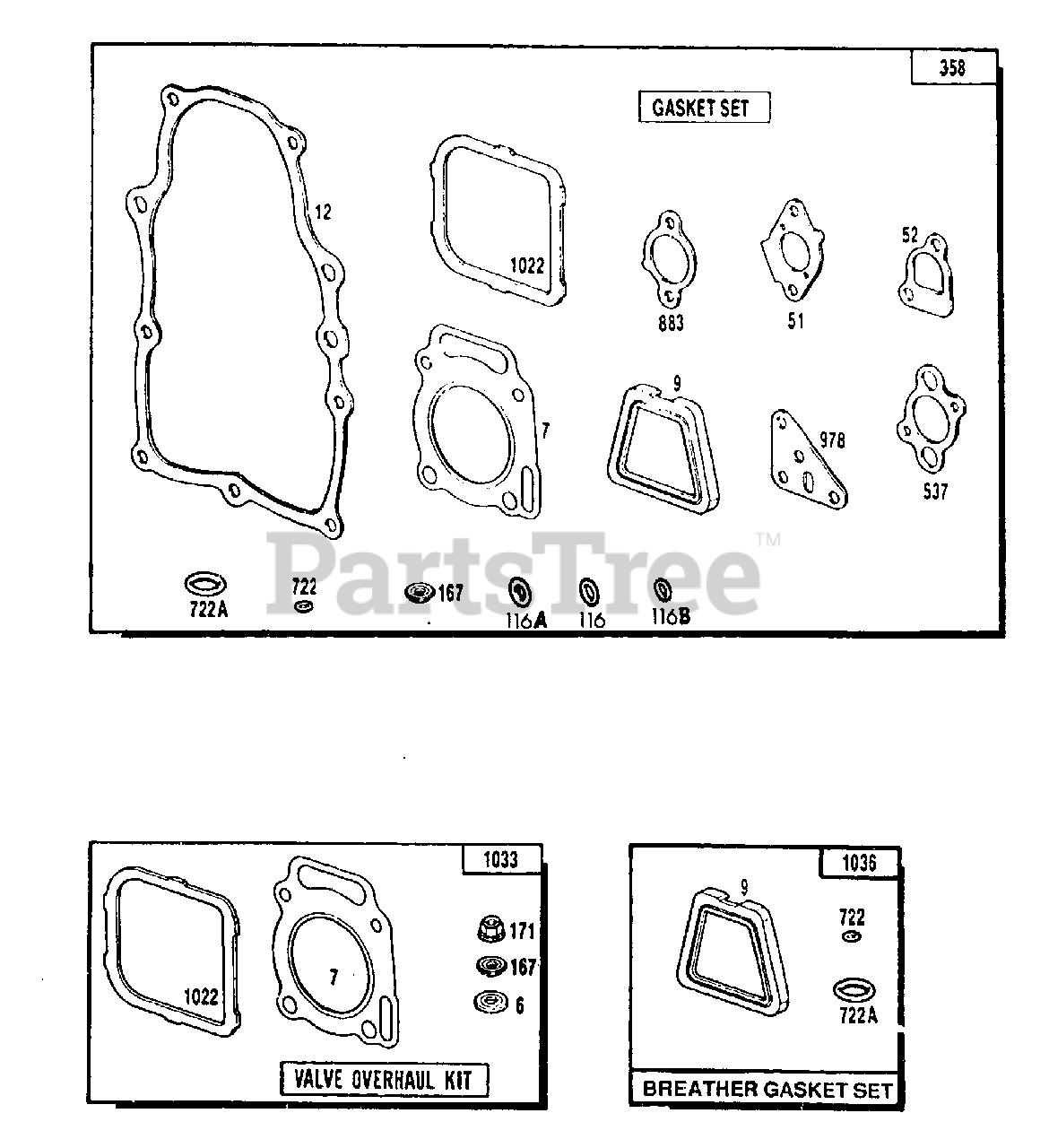

Gasket Sets Parts Diagram

  • Title

6

Briggs & Stratton 70169

805193 -- Cylinder Hd. Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 69332

805111 -- Cylinder Hd. Gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 72315

805379 -- Breather Gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 69336

805112 -- Crankcase Cover Gskt

Note: Contact Generac for quantity required

$

$

Not available

51

Briggs & Stratton 67290

805264 -- Carburetor Mtg Gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

52

Briggs & Stratton 67895

805023 -- Intake Manifold Gasket
(Superseded to 692035)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 16

0

116

Briggs & Stratton 68573

805058 -- O-ring (oil Pump)

Note: Contact Generac for quantity required

$

$

Currently unavailable

116A

Briggs & Stratton 70506

805198 -- O-ring (crankcase)

Note: Contact Generac for quantity required

$

$

Currently unavailable

116B

Briggs & Stratton 70541

805316 -- O-ring (pick-up Tube)

Note: Contact Generac for quantity required

$

$

Currently unavailable

167

Briggs & Stratton 75253

805420 -- Valve Cover Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

171

Briggs & Stratton 67885

805019 -- Nut
(Superseded to 67885GS)

Note: Contact Generac for quantity required

$6.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 80055

807640 -- Gasket Set

Note: Contact Generac for quantity required

$

$

Currently unavailable

537

Briggs & Stratton 66480

805003 -- Air Cleaner Gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

722

Briggs & Stratton 75262

805482 -- Breather Screw Seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

722A

Briggs & Stratton 75263

805483 -- Breather Screw Seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

883

Briggs & Stratton 67897

805024 -- Exhaust Manifold Gasket
(Superseded to 691613)

Note: Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 68548

805250 -- Oil Filter Adapter Gasket

Note: Contact Generac for quantity required

$

$

Not available

1022

Briggs & Stratton 67920

805028 -- Valve Cover Gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

1033

Briggs & Stratton 75271

807668 -- Valve Overhaul Kit

Note: Contact Generac for quantity required

$

$

Currently unavailable

1036

Briggs & Stratton 80012

808688 -- Breather Gasket Set

Note: Contact Generac for quantity required

$

$

Currently unavailable
