580.328391 (9374-1) - Craftsman 8,000 Watt Portable Generator Axle Assembly Parts Diagram

8,000 Watt Portable Generator

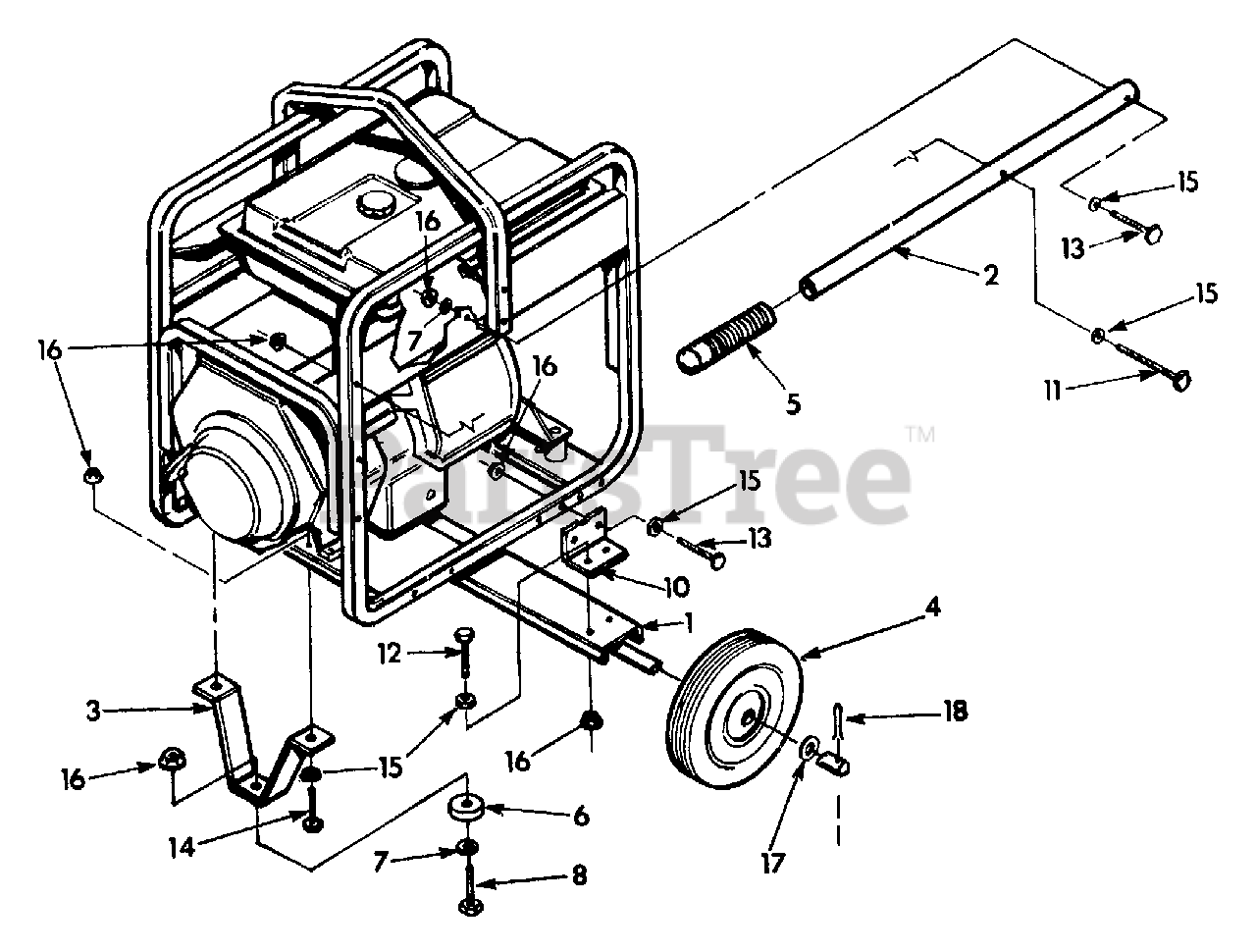

Axle Assembly Parts Diagram

  • Title

1

Briggs & Stratton 80953

Axle Assembly
(Superseded to 80953GS)

$194.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 80955

Transport Handle
(Superseded to 80955GS)

$34.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 45131

Mounting Leg

$

$

Not available

4

Briggs & Stratton 52555

Wheel Assembly
(Superseded to 7600147YP)

$122.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 77584

Handle Grip
(Superseded to 77584GS)

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 27007

Vibration Mount
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 9

0

7

Briggs & Stratton 50190

Special Washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 42909

M8-1.25 x 30mm Hex Head Capscrew
(Superseded to 42909GS)

$

$

Not available

10

Briggs & Stratton 80954

Axle Bracket
(Superseded to 80954GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 45771

M8-1.25 Hex Nut

$

$

Not available

12

UNKNOWN

$

$

Not available

13

Briggs & Stratton 57821

M8-1.25 x 40mm Hex Head Capscrew

$

$

Not available

14

Briggs & Stratton 43107

M8-1.25 x 25mm Hex Head Capscrew
(Superseded to 43107GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

16

Briggs & Stratton 52858

M8-1.25 Hex lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 45900

3/4" Flat Washer

$

$

Currently unavailable

18

Briggs & Stratton 22268

Cotter Pin
(Superseded to 22268GS)

$3.99

$

Usually ships in 2-12 days

0
