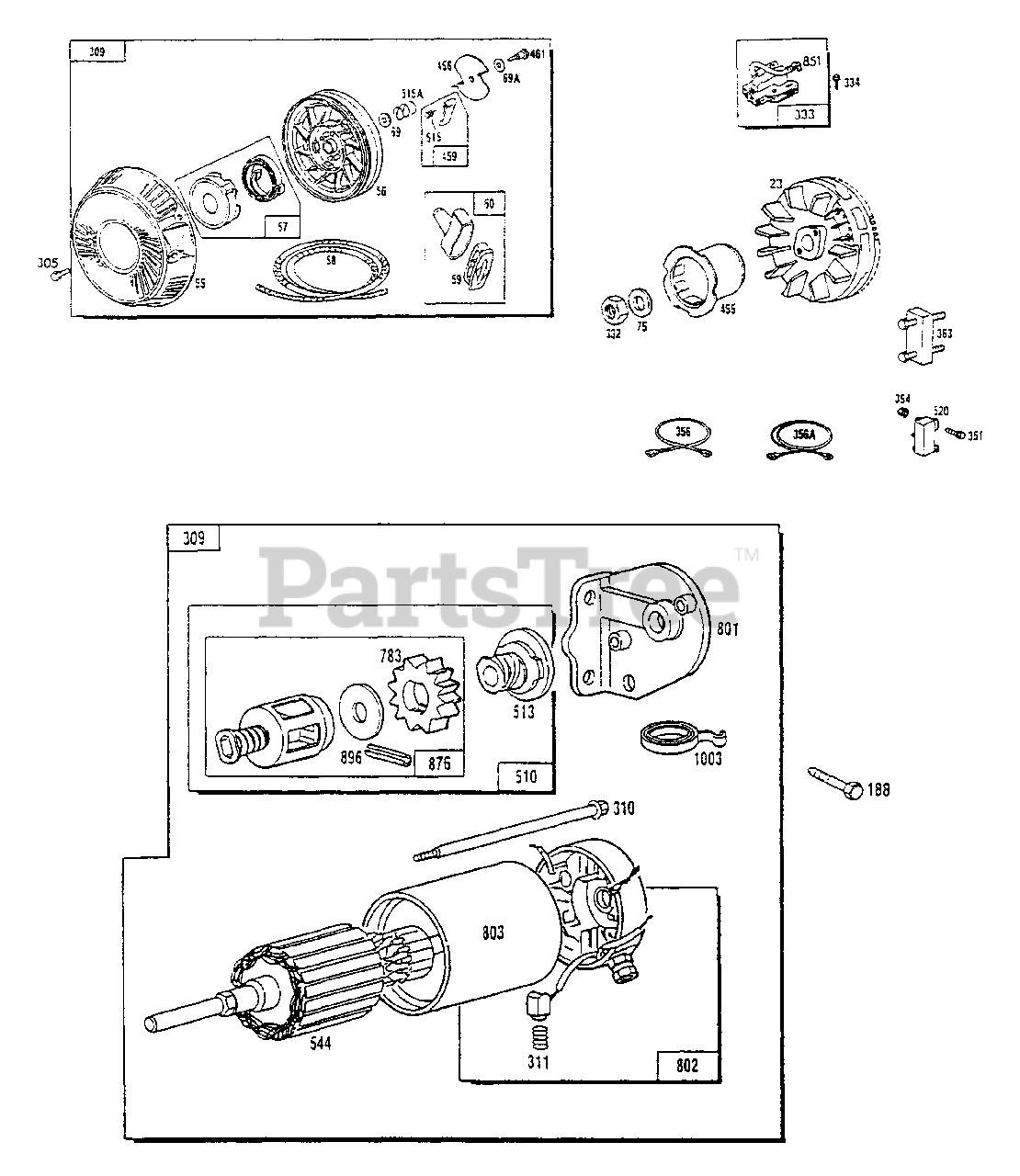

580.328390 (9785-0) - Craftsman 8,000 Watt Portable Generator Engine Part 3 Parts Diagram

8,000 Watt Portable Generator

Engine Part 3 Parts Diagram

  • Title
23

Briggs & Stratton 70166

807531 - Magneto Flywheel & Ring Gear Assembly

$

$

Currently unavailable

55

Briggs & Stratton 79252

492193 - Starter Housing

$

$

Currently unavailable

56

Briggs & Stratton 79253

280918 - Rewind Starter Pulley

$

$

Currently unavailable

57

Briggs & Stratton 79254

492194 - Rewind Starter Spring

$

$

Currently unavailable

58

Briggs & Stratton 79255

66894 - Rope Starter

$

$

Currently unavailable

59

Briggs & Stratton 79256

490653 - Starter Handle Insert

$

$

Currently unavailable

60

Briggs & Stratton 79257

490652 - Rewind Starter Handle

$

$

Currently unavailable

69

Briggs & Stratton 79258

94464 - Pulley Washer

$

$

Currently unavailable

69A

Briggs & Stratton 79259

94462 - Washer Retainer

$

$

Currently unavailable

75

Briggs & Stratton 67198N

805007 - Spring Washer

$

$

Currently unavailable

188

Briggs & Stratton 39253

805247 - Screw
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

305

Briggs & Stratton 66886

805406 - Screw

$

$

Currently unavailable

309

Briggs & Stratton 75255

399169 - Starter Motor

$

$

Currently unavailable

310

$

$

Currently unavailable

311

Briggs & Stratton 75257

490311 - Brush Assembly

$

$

Currently unavailable

332

Briggs & Stratton 67890

805021 - Hex Nut

$

$

Not available

333

Briggs & Stratton 67891

492341 - Magneto Armature

$

$

Currently unavailable

334

Unknown

$

$

Not available

351

Briggs & Stratton 70116

805169 - Hex Head Screw
(Superseded to 70116GS)

$6.99

$

Usually ships in 2-12 days

0

354

Briggs & Stratton 79289

805496 - Nylock Nut

$

$

Currently unavailable

356

Briggs & Stratton 79290

807594 - Ground Wire

Note: (Cyl. #1)

$

$

Not available

356A

Briggs & Stratton 79291

807593 - Ground Wire
(Superseded to 703355)

Note: (Cyl. #2)

$3.99

$

In Stock, Qty 14

0

363

Briggs & Stratton 79292

19203 - Flywheel Puller

$

$

Currently unavailable

455

Briggs & Stratton 70198A

805153 - Starter Hub

$

$

Currently unavailable

456

Briggs & Stratton 79293

224228 - Retainer

$

$

Currently unavailable

459

Briggs & Stratton 79294

492341 - Starter Dog
(Superseded to 7079294YP)

$2.99

$

In Stock, only 1 left!

0

461

Briggs & Stratton 79295

94463 - Retainer Screw
(Superseded to 7079295YP)

$3.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 75250

490421 - Drive Assembly

$

$

Currently unavailable

513

Briggs & Stratton 75261

398003 - Clutch Assembly

$

$

Currently unavailable

515

Briggs & Stratton 79298

262565 - Dog Spring

$

$

Not available

515A

Briggs & Stratton 79299

262564 - Torsion Spring

$

$

Currently unavailable

520

Briggs & Stratton 70520

807527 - Ground Terminal

$

$

Currently unavailable

544

Briggs & Stratton 75269

490309 - Armature Assembly

$

$

Currently unavailable

783

Briggs & Stratton 75264

280104 - Gear
(Superseded to 7075264YP)

$100.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 75265

394856 - Drive End Cap Assembly
(Superseded to 7075265YP)

$95.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 75266

490310 - Commutator End Assm.

$

$

Currently unavailable

803

Briggs & Stratton 75267

399172 - Housing Assembly
(Superseded to 7075267YP)

$76.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 75272

493880 - Ignition Cable Terminal
(Superseded to 7075272YP)

$39.99

$

Usually ships in 2-12 days

0

876

Briggs & Stratton 75268

490467 - Gear Kit
(Superseded to 7075268YP)

$44.99

$

Usually ships in 2-12 days

0

896

Briggs & Stratton 75270

94288 - Roll Pin
(Superseded to 7075270YP)

$50.99

$

Usually ships in 2-12 days

0

1003

Briggs & Stratton 80011

490316 - Brush Spring Set

$

$

Currently unavailable
