580.328390 (9374-0) - Craftsman 8,000 Watt Portable Generator Control Panel Parts Diagram

8,000 Watt Portable Generator

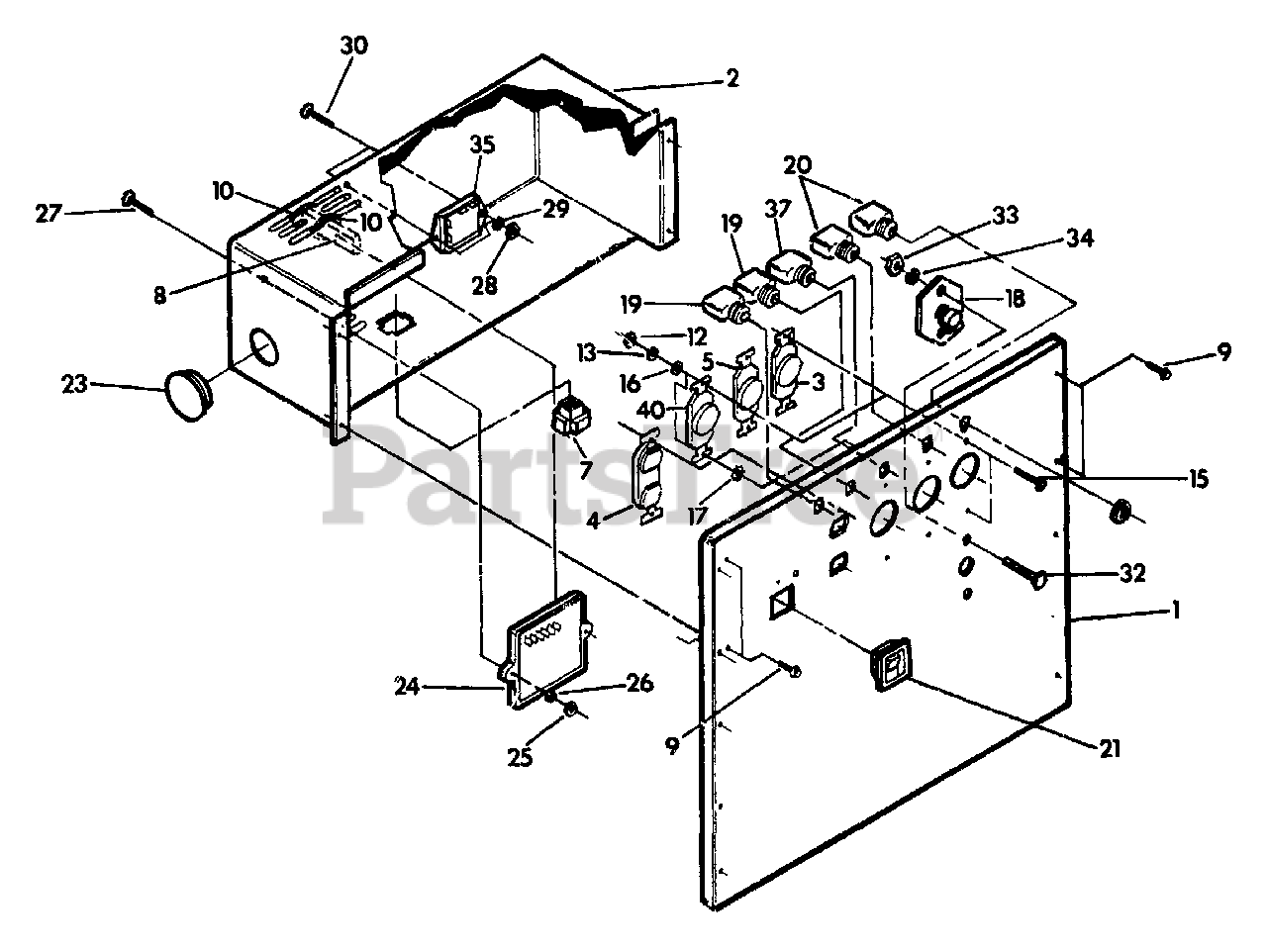

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 79735

Panel, Control -- Silkscreened 8 kW
(Superseded to 7079645YP)

$5.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 77315

Cover, Control Panel

$

$

Currently unavailable

3

Briggs & Stratton 43437

Outlet, 120/240v., 30-amp Twistlock

$

$

Not available

4

Briggs & Stratton 63025

Outlet, 120v., 15-amp Duplex
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68868

Outlet, 120v., 30-amp Twistlock
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 63993

Connector

$

$

Currently unavailable

8

Briggs & Stratton 77244

Field Boost Assembly

$

$

Currently unavailable

9

Briggs & Stratton 63036

Crimptite -- No. 8-18 X 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 29333A

Tie-wrap
(Superseded to 29333AGS)

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

Hex Nut, M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

Lock Washer, No. 8

$

$

Not available

15

Briggs & Stratton 75475

Screw, M4-0.7 X 10mm

$

$

Not available

16

Briggs & Stratton 38150

Flat Washer, No. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

Shakeproof Washer, No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 77282

Starter Switch

$

$

Not available

19

Briggs & Stratton 75207D

Circuit Breaker, 15-amp
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

20

75207A

Circuit Breaker, 30-amp

$

$

Not available

21

Briggs & Stratton 66817

Switch, Engine Control
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 58221

Plug -- 1-3/4" Diameter

$

$

Not available

24

Briggs & Stratton 74074

A/C Voltage Regulator

$

$

Currently unavailable

25

Briggs & Stratton 22158

Hex Nut, No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 22152

Lock Washer, No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 33534

Screw, No. 10-32 X 1-1/8"

$

$

Currently unavailable

28

Briggs & Stratton 22188

Hex Nut, No. 6-32

$

$

Currently unavailable

29

Briggs & Stratton 22155

Lock Washer, No. 6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 36902

Screw, No. 6-32 X 1/2"
(Superseded to 36902GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 42568

Screw -- M6-1.0 X 20mm
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 49813

Hex Nut, M6-1.0
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 22097

Lockwasher, M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 77314

Thermal Relay

$

$

Not available

37

Briggs & Stratton 75207

Circuit Breaker, 20-amp
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

40

Briggs & Stratton 74190

Outlet, 120v., 20-amp Twistlock

$

$

Not available
