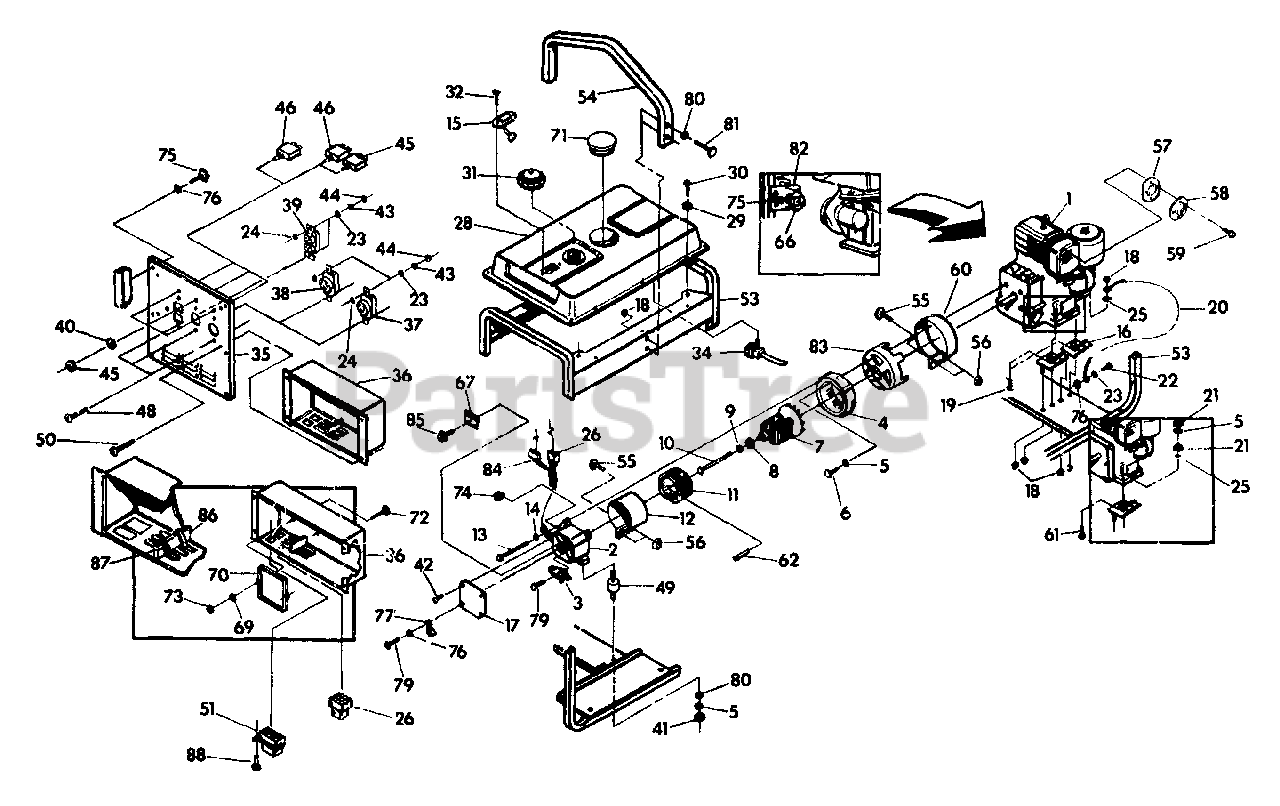

580.328350 (9451-0) - Craftsman 5,000 Watt Portable Generator Generator Parts Diagram

5,000 Watt Portable Generator

Generator Parts Diagram

  • Title

1

Briggs & Stratton 78849

11 HP E.S. BRIGGS & STRATTON ENGINE

$

$

Currently unavailable

2

Briggs & Stratton 66825A

REAR BEARING CARRIER

$

$

Currently unavailable

3

Briggs & Stratton 66386

BRUSH HOLDER ASSY
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton 66365D

ADAPTOR HOUSING
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22129

M8 LOCK WASHER
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 23451

5/16-24 x 2-1/2" SCREW
(Superseded to 5023451)

$48.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 81870

ROTOR ASSEMBLY

$

$

Not available

8

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 67451

SPECIAL WASHER

$

$

Currently unavailable

10

Briggs & Stratton 29024

ROTOR BOLT

$

$

Not available

11

Briggs & Stratton 83260

STATOR ASSEMBLY
(Superseded to 83260GS)

$998.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 81887E

ALTERNATOR WRAP

$

$

Currently unavailable

13

Briggs & Stratton 66449F

STATOR BOLT

$

$

Not available

14

Briggs & Stratton 22097

LOCK WASHER
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66391B

FUEL LEVEL GAUGE

$

$

Not available

16

Briggs & Stratton 70642

45ø VIBRATION MOUNT
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 67025

BEARING CARRIER COVER

$

$

Currently unavailable

18

Briggs & Stratton 52858

M8-1.25 LOCK NUT
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 76222

M8-1.25 x 40mm SCREW
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 10953621

4" LONG GROUND WIRE

$

$

Currently unavailable

21

Briggs & Stratton 22259

5/16-18 HEX NUT
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 24911

TAPTITE SCREW
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 38150

No. 8 FLAT WASHER
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 23365

No. 8 LOCK WASHER (SERRATED)
(Superseded to 5023365)

Note: Contact Generac for quantity required

$462.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 27482

5/16" SHAKEPROOF WASHER
(Superseded to 27482GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 63993

9-PIN CONNECTOR

$

$

Currently unavailable

28

Briggs & Stratton 73715

METAL GAS TANK
(Superseded to 7073715YP)

$

$

Not available

29

22473

1/4" FLAT WASHER

$

$

Not available

30

Briggs & Stratton 42568

M6-1.0 x 20mm CAPSCREW
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 76280

FUEL TANK CAP
(Superseded to 76280GS)

$

$

Not available

32

Briggs & Stratton 52749

M5 PAN HEAD SCREW

$

$

Currently unavailable

34

Briggs & Stratton 75938

TANK VALVE

$

$

Currently unavailable

35

Briggs & Stratton 84423

CONTROL PANEL

$

$

Currently unavailable

36

Briggs & Stratton 84424

CONTROL PANEL BACK

$

$

Currently unavailable

37

Briggs & Stratton 68868

120 VOLTS, 30 AMP OUTLET, TWISTLOCK
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68867

120/240V., TWISTLOCK OUTLET
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 68759

120V., 20A. DUPLEX OUTLET
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 82881

INTERNAL LOCKWASHER
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 25244

5/16-18 HEX NUT
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 74908

M5-0.8 x 10mm HEX SCREW
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22264

No. 8 LOCK WASHER

$

$

Not available

44

Briggs & Stratton 51715

M4-0.7 HEX NUT
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

45

75207A

30 AMP CIRCUIT BREAKER

$

$

Not available

46

Briggs & Stratton 75207

20 AMP CIRCUIT BREAKER
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 8

0

48

Briggs & Stratton 75475

M4-0.7 x 10mm SCREW

$

$

Not available

49

Briggs & Stratton 82857

RUBBER MOUNT
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 63036

No. 8-32 x 1/4" SCREW
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 22694

6-POSITION RECEPTACLE
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0

53

Briggs & Stratton 83915A

5KW CRADLE

$

$

Currently unavailable

54

Briggs & Stratton 84453

LIFTING BAR

$

$

Currently unavailable

55

Briggs & Stratton 52618

M5 x 12mm CAPSCREW
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 52856

M5 LOCK NUT
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 84202

SPARK ARRESTOR SCREW

$

$

Currently unavailable

58

Briggs & Stratton 84203

SPARK ARRESTOR DEFLECTOR

$

$

Currently unavailable

59

Briggs & Stratton 77836A

DEFLECTOR SCREW
(Superseded to 77836AGS)

$1.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 83888

FINGER GUARD

$

$

Currently unavailable

61

Briggs & Stratton 71729

MACHINE SCREW
(Superseded to 71729GS)

$6.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 81917

M4 ROLL PIN
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 77282

STARTER SWITCH

$

$

Not available

67

Briggs & Stratton 65795

BATTERY CHARGE RECTIFIER
(Superseded to 65795GS)

$

$

Not available

69

Briggs & Stratton 22152

No. 6 LOCK WASHER
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 83049

VOLTAGE REGULATOR
(Superseded to 83049GS)

$313.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 64680B

SPARK PLUG COVER
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 33534

No. 6-32 x 3/8" SCREW

$

$

Currently unavailable

73

Briggs & Stratton 22158

No. 6-32 HEX NUT
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

74

Briggs & Stratton 67022

RUBBER GROMMET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 75494

No. 10 x 5/8" SCREW

$

$

Not available

76

Briggs & Stratton 22769

No. 10 SP WASHER
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 25433

GROUND LUG

$

$

Not available

79

Briggs & Stratton 66849

M5-0.8 x 15mm SCREW
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 22145

5/16" (M8) FLAT WASHER

$

$

Not available

81

Briggs & Stratton 39287

M8-1.25 x 45mm CAPSCREW
(Superseded to 39287GS)

$3.99

$

In Stock, only 2 left!

0

82

Briggs & Stratton 78289

STARTER SW. BRACKET
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 68342

ENGINE SPACER

$

$

Currently unavailable

84

Briggs & Stratton 22695

6-PIN CONNECTOR
(Superseded to 22695GS)

$6.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 66849A

M5 x 20mm SCREW
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 77244

FIELD BOOST ASSEMBLY

$

$

Currently unavailable

87

Briggs & Stratton 28739A

4" TIE WRAP
(Superseded to 28739AGS)

$1.49

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 66855

RIVET

$

$

Currently unavailable
