580.328350 (9451-0) - Craftsman 5,000 Watt Portable Generator Electric Starter Parts Diagram

5,000 Watt Portable Generator

Electric Starter Parts Diagram

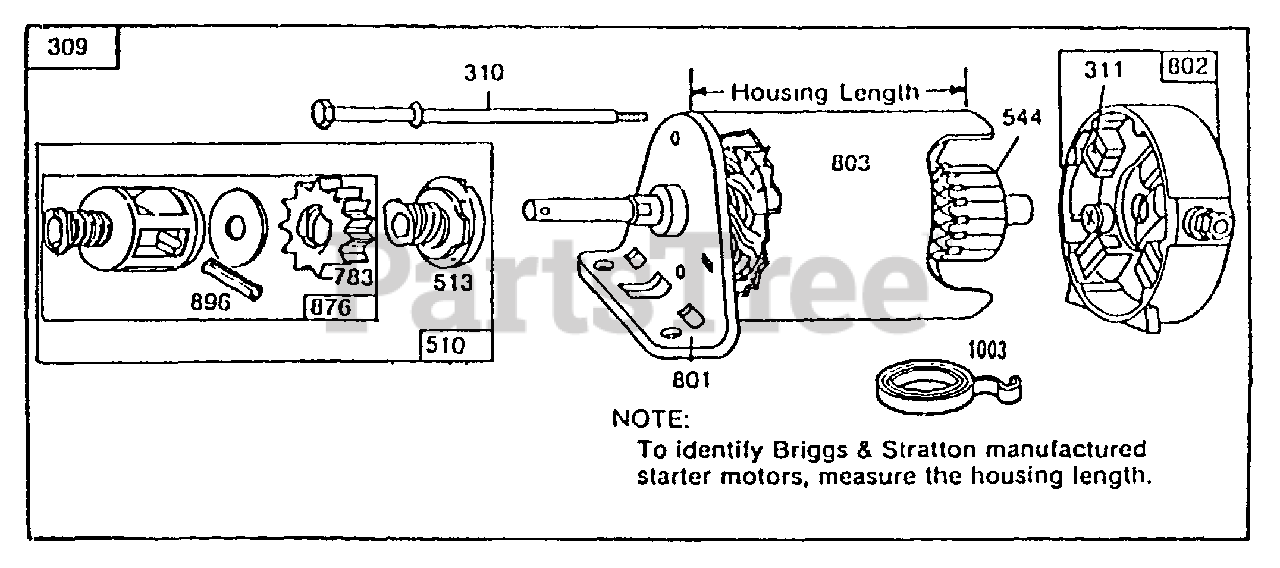

  • Title

309

Briggs & Stratton 394805

Motor and Drive Assembly
(Superseded to 497595)

Note: For Briggs & Stratton 12 V, 3-21/32" Housing; Contact Generac for quantity required

$110.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 399169

Motor and Drive Assembly
(Superseded to 795121)

Note: For Briggs & Stratton 12 V, 4-9/16" Housing; Contact Generac for quantity required

$143.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 394805

Motor and Drive Assembly
(Superseded to 497595)

Note: For United Technologies 12 V, 3-15/32" Housing; Contact Generac for quantity required

$110.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 94003

Thru Bolt Assembly
(Superseded to 690323)

Note: For Briggs & Stratton 12 V, 3-21/32" Housing; Contact Generac for quantity required

$4.49

$

In Stock, Qty 7

0

310

Briggs & Stratton 94169

Thru Bolt Assembly
(Superseded to 691263)

Note: For Briggs & Stratton 12 V, 4-9/16" Housing; Contact Generac for quantity required

$

$

Not available

311

Briggs & Stratton 395538

Brush Assembly

Note: For Briggs & Stratton 12 V, 3-21/32" Housing; Contact Generac for quantity required

$24.99

$

Usually ships in 2-12 days

0

311

Briggs & Stratton 490311

Brush Assembly

Note: For Briggs & Stratton 12 V, 4-9/16" Housing; Contact Generac for quantity required

$35.99

$

Usually ships in 2-12 days

0

311

Briggs & Stratton 492020

Brush Assembly

Note: For United Technologies 12 V, 3-15/32" Housing; Contact Generac for quantity required

$38.99

$

In Stock, only 1 left!

0

510

Briggs & Stratton 396865

Drive Assembly
(Superseded to 696540)

Note: For Briggs & Stratton 12 V, 3-21/32" Housing; Contact Generac for quantity required

$29.99

$

In Stock, Qty 18

0

510

Briggs & Stratton 490421

Drive Assembly
(Superseded to 696540)

Note: For Briggs & Stratton 12 V, 4-9/16" Housing; Contact Generac for quantity required

$29.99

$

In Stock, Qty 18

0

510

Briggs & Stratton 490421

Drive Assembly
(Superseded to 696540)

Note: For United Technologies 12 V, 3-15/32" Housing; Contact Generac for quantity required

$29.99

$

In Stock, Qty 18

0

513

Briggs & Stratton 398003

Clutch Assembly
(Superseded to 692024)

Note: Contact Generac for quantity required

$21.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 390837

Armature Assembly

Note: For Briggs & Stratton 12 V, 3-21/32" Housing; Contact Generac for quantity required

$159.99

$

In Stock, only 1 left!

0

544

Briggs & Stratton 490309

Armature Assembly

Note: For Briggs & Stratton 12 V, 4-9/16" Housing; Contact Generac for quantity required

$74.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

Note: Contact Generac for quantity required

$6.99

$

In Stock, only 3 left!

0

801

Briggs & Stratton 394856

Drive End Cap Assembly
(Superseded to 691283)

Note: For Briggs & Stratton 12 V, 3-21/32" Housing; Contact Generac for quantity required

$83.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 394856

Drive End Cap Assembly
(Superseded to 691283)

Note: For Briggs & Stratton 12 V, 4-9/16" Housing; Contact Generac for quantity required

$83.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 394856

Drive End Cap Assembly
(Superseded to 691283)

Note: For United Technologies 12 V, 3-15/32" Housing; Contact Generac for quantity required

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 395537

End Cap Assembly Commutator

Note: For Briggs & Stratton 12 V, 3-21/32" Housing; Contact Generac for quantity required

$54.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 490310

End Cap Assembly Commutator

Note: For Briggs & Stratton 12 V, 4-9/16" Housing; Contact Generac for quantity required

$

$

Not available

802

Briggs & Stratton 492021

End Cap Assembly Commutator

Note: For United Technologies 12 V, 3-15/32" Housing; Contact Generac for quantity required

$37.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 393825

Housing Assembly
(Superseded to 398159)

Note: For Briggs & Stratton 12 V, 3-21/32" Housing; Contact Generac for quantity required

$80.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 399172

Housing Assembly
(Superseded to 398892)

Note: For Briggs & Stratton 12 V, 4-9/16" Housing; Contact Generac for quantity required

$74.99

$

Usually ships in 2-12 days

0

876

Briggs & Stratton 490467

Retainer and Pin
(Superseded to 696540)

Note: Contact Generac for quantity required

$29.99

$

In Stock, Qty 18

0

876

Briggs & Stratton 393254

Retainer and Pin
(Superseded to 696540)

Note: Contact Generac for quantity required

$29.99

$

In Stock, Qty 18

0

896

Briggs & Stratton 94288

Roll Pin (Copper)
(Superseded to 691641)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

896

Briggs & Stratton 94192

Roll Pin (Black)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

1003

Briggs & Stratton 490316

Spring Set

Note: For Briggs & Stratton 12 V, 4-9/16" Housing; Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0
