580.328350 (8892-0) - Craftsman 5,000 Watt Portable Generator Generator No. 68871-A Parts Diagram

5,000 Watt Portable Generator

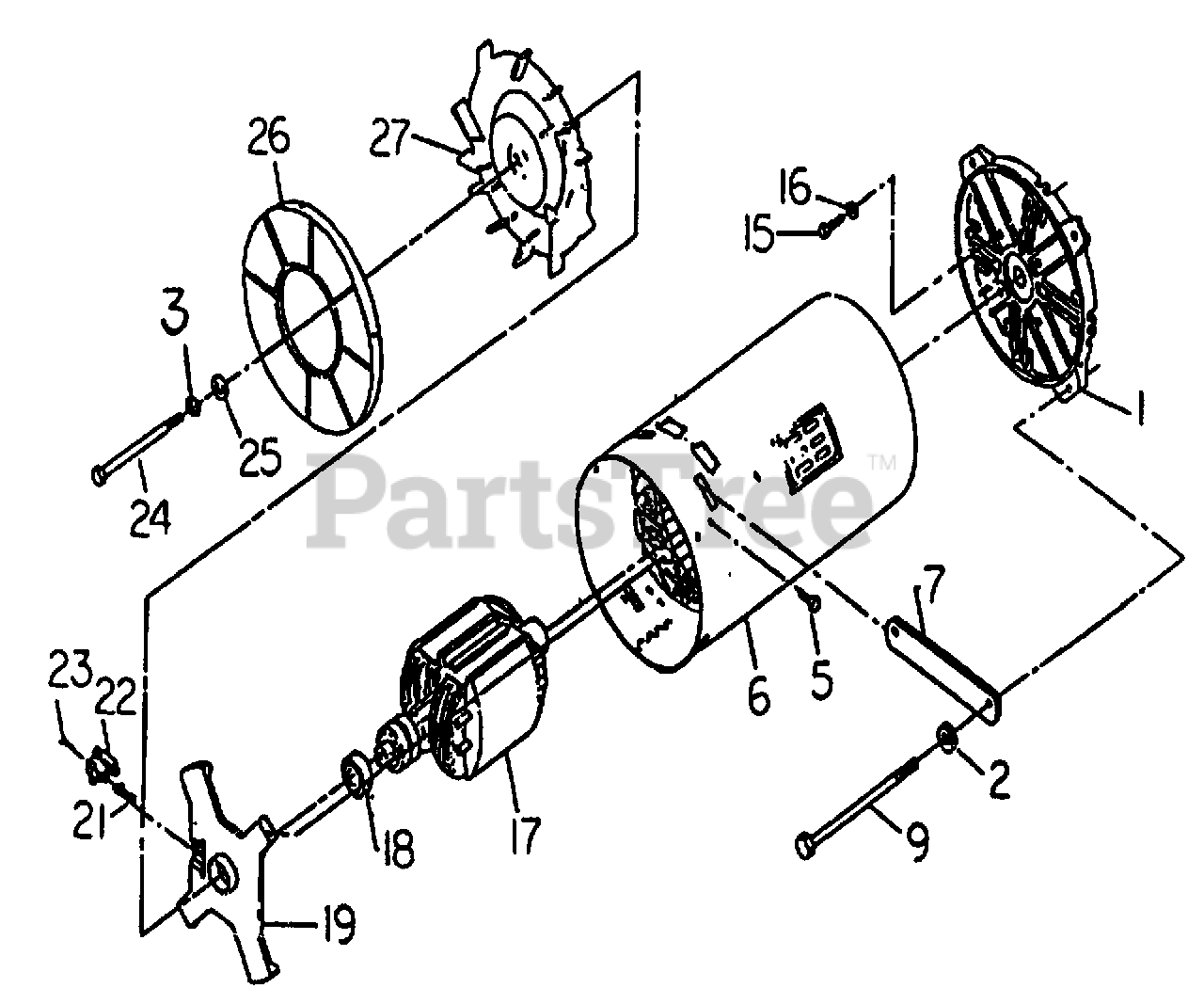

Generator No. 68871-A Parts Diagram

  • Title

1

Briggs & Stratton 43873

HOUSING, Engine Adapter

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 44392B

SUPPORT, Rear Generator

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 24489

SCREW (Taptite)- No. 10-32 x 3/8"

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 68749C

STATOR ASSEMBLY

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 44338

BAR, Stator Bolt

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 44395B

BOLT, Stator

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 23152

SCREW- 3/8"-16 x 3/4"
(Superseded to 5101614)

Note: Contact Generac for quantity required

$450.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22237

WASHER, Lock - 3/8"

Note: Contact Generac for quantity required

$

$

Not available

17

Briggs & Stratton 68748A

ROTOR ASSEMBLY

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 24049

BEARING, Rotor

Note: Contact Generac for quantity required

$

$

Not available

19

Briggs & Stratton 44943

CARRIER, Bearing

Note: Contact Generac for quantity required

$

$

Currently unavailable

21

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 23877D

HOLDER, Brush
(Superseded to 23877DGS)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 25105

SCREW (Sims) - No. 6-32 x 1/4"
(Superseded to 25105GS)

Note: Contact Generac for quantity required

$1.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 25254

BOLT, Rotor
(Superseded to 5025254)

Note: Contact Generac for quantity required

$2.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 50190

WASHER, Fan Retaining
(Superseded to 50190GS)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 44357

COVER, Fan
(Superseded to 44357GS)

Note: Contact Generac for quantity required

$17.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 44331

FAN, Cooling

Note: Contact Generac for quantity required

$

$

Not available
