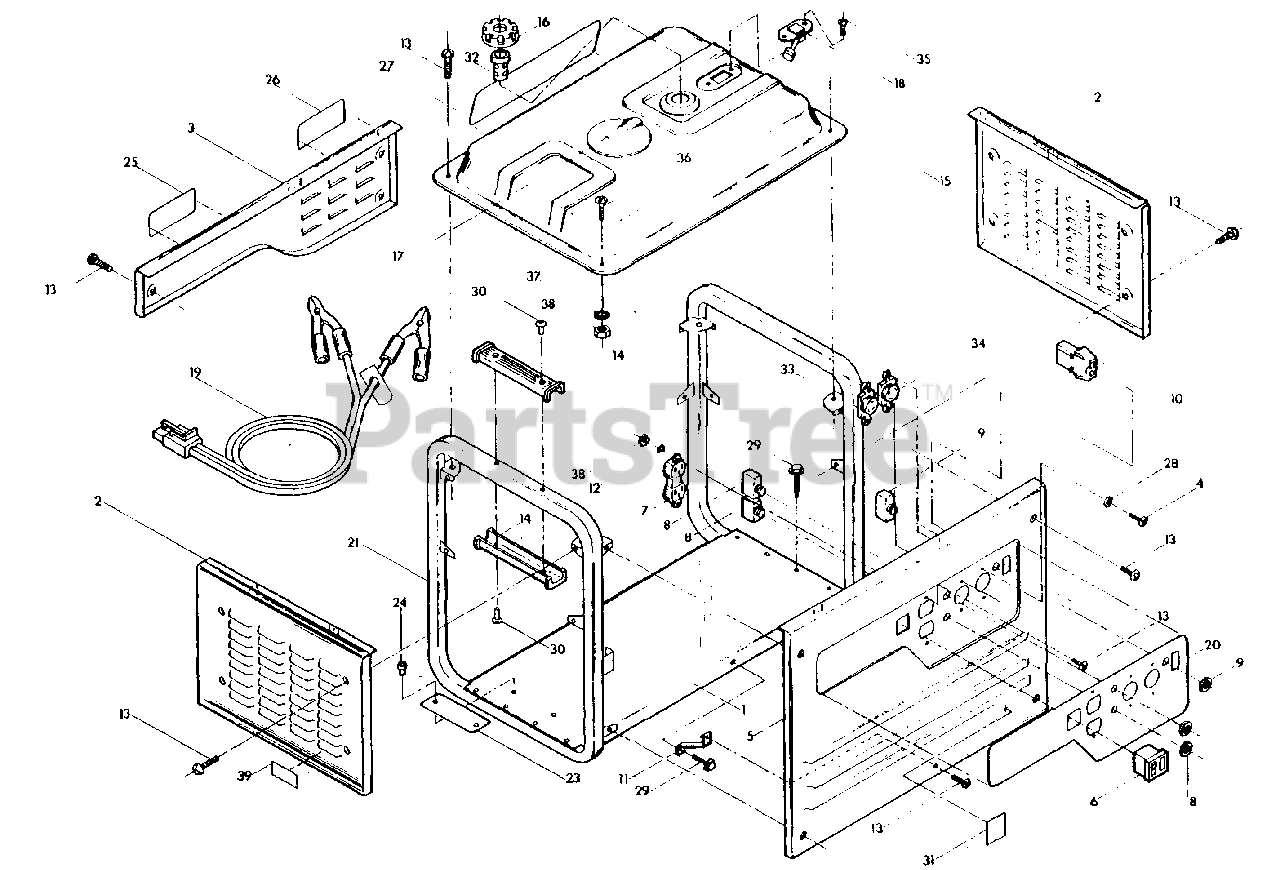

580.328341 (8966-1) - Craftsman 3,600 Watt Portable Generator Cradle (10/95) Parts Diagram

3,600 Watt Portable Generator

Cradle (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 73017

BASE, Engine Cradle
(Superseded to 7073017YP)

$

$

Not available

2

Briggs & Stratton 73012

PANEL, End
(Superseded to 7073012YP)

$66.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 73016

PANEL, Exhaust Muffler

$

$

Currently unavailable

4

Briggs & Stratton 36901

SCREW - No. 6-32 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 73005

PANEL, Receptacle
(Superseded to 7073005YP)

$239.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66817

SWITCH, Engine Run/Stop
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68759

RECEPTACLE - 120 V., 20 amp
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

8

Briggs & Stratton 66819

BREAKER, Circuit - 20 amp

$

$

Currently unavailable

9

Briggs & Stratton 66820

BREAKER, Circuit - 10 amp d-c

$

$

Not available

10

Briggs & Stratton 6720730

RECEPTACLE - 12 volts d-c

$

$

Currently unavailable

11

Briggs & Stratton 73058

BRACE, Receptacle Panel

$

$

Currently unavailable

12

Briggs & Stratton 22152

WASHER, Lock - No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 23964

SCREW - No. 10-32 x 1/2"

$

$

Currently unavailable

14

Briggs & Stratton 66450

COVER, Handle

$

$

Not available

15

Briggs & Stratton 69662

TANK, Fuel - 4.5 U.S. Gallons

$

$

Currently unavailable

16

Briggs & Stratton 69658

CAP, Fuel Tank Filler

$

$

Currently unavailable

17

Briggs & Stratton 64680B

COVER, Spark Plug Access
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66391B

INDICATOR, Fuel Level

$

$

Not available

19

Briggs & Stratton 71394

CABLE, Battery Charge
(Superseded to 71394GS)

$42.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 73014

DECAL - Receptacle Panel

$

$

Currently unavailable

21

Briggs & Stratton 72272

CRADLE, Engine End

$

$

Currently unavailable

22

Briggs & Stratton 72099

CRADLE, Generator End

$

$

Currently unavailable

23

Briggs & Stratton 60213R

PLATE, Data

$

$

Currently unavailable

24

Briggs & Stratton 25832

RIVET, Data Plate

$

$

Currently unavailable

25

Briggs & Stratton 66823

DECAL - Choke

$

$

Currently unavailable

26

Briggs & Stratton 66824

DECAL - Caution! - Hot!

$

$

Currently unavailable

27

Briggs & Stratton 70365D

DECAL - Starting Data

$

$

Currently unavailable

28

Briggs & Stratton 22155

WASHER, Lock - No. 6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 58441

SCREW - 1/4"-20 x 3/8"

$

$

Currently unavailable

30

Briggs & Stratton 66831

RIVET - 4mm

$

$

Not available

31

Briggs & Stratton 29084

DECAL - U.S.D.A.

$

$

Currently unavailable

32

Briggs & Stratton 70630

FILTER, Fuel

$

$

Currently unavailable

33

Briggs & Stratton 68868

RECEPTACLE - 120V., 30 amp (Full Capacity)
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 37807

PLUG, Connector

$

$

Currently unavailable

34

Briggs & Stratton 68867

RECEPTACLE - 120/240V.
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 43483

PLUG, Connector
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52749

SCREW - M5-0.80 x 12mm

$

$

Currently unavailable

36

Briggs & Stratton 23963

SCREW - No. 10-32 x 3/4"
(Superseded to 593696)

$25.99

$

In Stock, only 2 left!

0

37

Briggs & Stratton 23762

WASHER, Serrated - No. 10
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 22158

NUT, Hex - No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

39

Briggs & Stratton 73054

DECAL - Fuel Shutoff

$

$

Not available

Briggs & Stratton 73066

MANUAL, Owners

$

$

Not available
