580.328331 (8965-0) - Craftsman 2,400 Watt Portable Generator Magneto Model 130412-0105-01 Parts Diagram

2,400 Watt Portable Generator

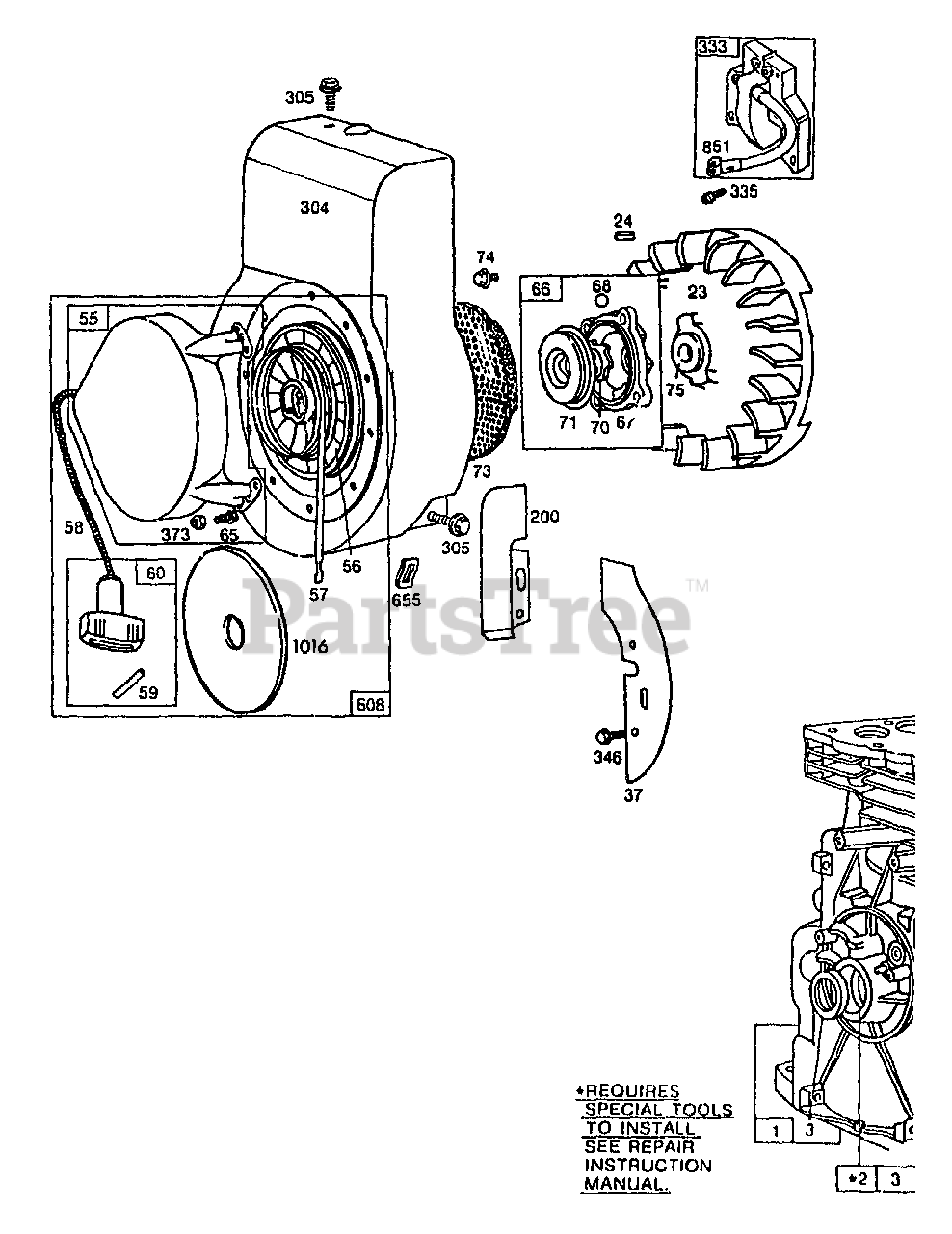

Magneto Model 130412-0105-01 Parts Diagram

  • Title
1

Briggs & Stratton 395990

Cylinder Assembly
(Superseded to 497144)

Note: Contact Generac for quantity required

$537.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 297585

Bushing- Cylinder

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 299819

Seal- Oil
(Superseded to 299819S)

Note: Contact Generac for quantity required

$5.49

$

In Stock, Qty 20+

0

23

Briggs & Stratton 297229

Flywheel- Magneto

Note: Contact Generac for quantity required

$

$

Not available

24

Briggs & Stratton 222698

Key- Flywheel
(Superseded to 222698S)

Note: Contact Generac for quantity required

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

Note: Contact Generac for quantity required

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 299431

Pulley- Starter

Note: Contact Generac for quantity required

$

$

Not available

56

Briggs & Stratton 295871

Pulley- Starter

Note: (Inc. 63" long Rope). Contact Generac for quantity required

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring- Starter

Note: Contact Generac for quantity required

$

$

Not available

58

Briggs & Stratton 66884

Rope- Starter 63" long
(Superseded to 692188)

Note: Contact Generac for quantity required

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin- Starter Grip
(Superseded to 230228S)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip- Starter Rope
(Superseded to 490652)

Note: Contact Generac for quantity required

$5.49

$

In Stock, Qty 12

0

65

Briggs & Stratton 94128

Screw
(Superseded to 690837)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

Clutch- Starter

Note: Contact Generac for quantity required

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing- Clutch

Note: Contact Generac for quantity required

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball- Clutch
(Superseded to 691604)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298436

Ratchet- Starter
(Superseded to 691945)

Note: Contact Generac for quantity required

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Washer- Clutch Retainer
(Superseded to 691359)

Note: Contact Generac for quantity required

$9.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 221923

Screen- Starter

Note: Contact Generac for quantity required

$29.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 11

0

75

Briggs & Stratton 224061

Washer- Spring
(Superseded to 690582)

Note: Contact Generac for quantity required

$4.49

$

In Stock, only 4 left!

0

200

Briggs & Stratton 223886

Guide-Air
(Superseded to 691745)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 398345

Housing- Blower

Note: Contact Generac for quantity required

$

$

Not available

305

Briggs & Stratton 93158

Screw- Blower Hsng. Mtg.
(Superseded to 692198)

Note: Contact Generac for quantity required

$5.99

$

In Stock, Qty 12

0

333

Briggs & Stratton 397358

Armature Group

Note: Contact Generac for quantity required

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

Screw- Armature Mtg.
(Superseded to 691621)

Note: Contact Generac for quantity required

$7.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw-Sem
(Superseded to 690661)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 9

0

373

Briggs & Stratton 92987

Nut- Hex
(Superseded to 690800)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 13

0

608

Briggs & Stratton 390463

Starter Assy.-Rewind

Note: Contact Generac for quantity required

$

$

Not available

655

Briggs & Stratton 222598

Anchor- Spring
(Superseded to 691734)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Cable Terminal- Ign.
(Superseded to 493880S)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 20+

0

1016

Spacer

Note: (Order P/N 224278 From Briggs & Stratton). Contact Generac for quantity required

$

$

Not available
