580.328331 (8965-0) - Craftsman 2,400 Watt Portable Generator Carburetor Model 130412-0105-01 Parts Diagram

2,400 Watt Portable Generator

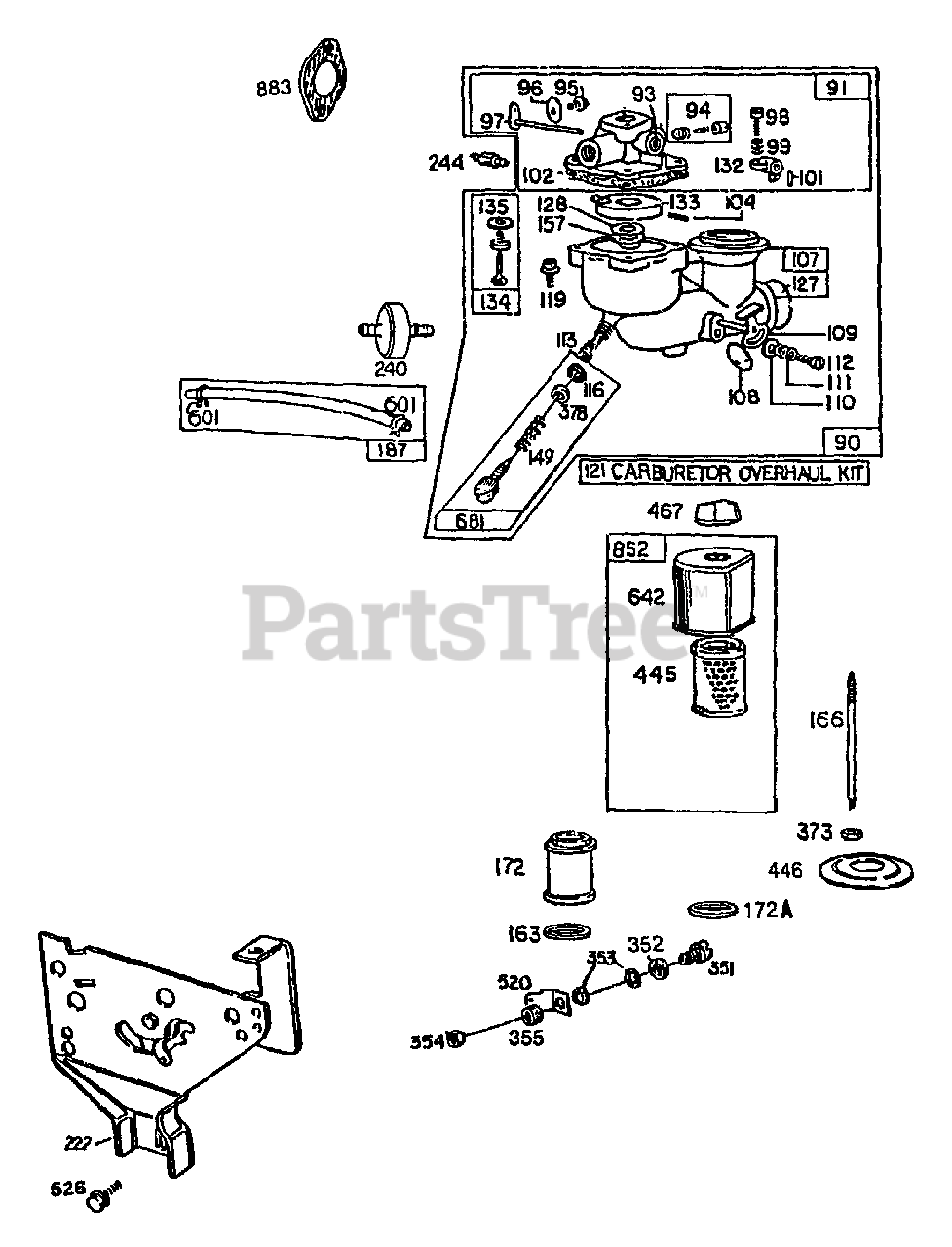

Carburetor Model 130412-0105-01 Parts Diagram

  • Title

90

Briggs & Stratton 393753

Carburetor Assy.

Note: Contact Generac for quantity required

$

$

Not available

91

Briggs & Stratton 393978

Housing- Throttle

Note: Contact Generac for quantity required

$63.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23230

Bushing- Throttle Shaft

Note: Contact Generac for quantity required

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 292681

Valve- Carb. Idle

Note: Contact Generac for quantity required

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 222972

Valve- Throttle

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 393827

Shaft & Lever-Throttle

Note: Contact Generac for quantity required

$33.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw- Machine
(Superseded to 691615)

Note: Contact Generac for quantity required

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring- Throttle Adj.
(Superseded to 693942)

Note: Contact Generac for quantity required

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin- Throttle Stop & Governor Shaft
(Superseded to 691616)

Note: Contact Generac for quantity required

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27917

Gasket- Carb. Body

Note: Contact Generac for quantity required

$6.49

$

In Stock, Qty 10

0

104

Briggs & Stratton 23114

Pin- Float Hinge

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

107

Briggs & Stratton 393979

Body- Carb. Lower

Note: Contact Generac for quantity required

$93.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 220897

Valve- Choke

Note: Contact Generac for quantity required

$7.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 294874

Shaft and Lever

Note: Contact Generac for quantity required

$

$

Not available

110

Briggs & Stratton 220899

Washer- Choke Lever

Note: Contact Generac for quantity required

$3.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26229

Spring- Choke Lever

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

112

Briggs & Stratton 23270

Screw-Choke Lever

Note: Contact Generac for quantity required

$4.49

$

Usually ships in 2-12 days

0

113

Briggs & Stratton 231428

Nozzle- Carburetor

Note: Contact Generac for quantity required

$17.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

Packing- Needle Valve
(Superseded to 691898)

Note: Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 93347

Screw

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 398993

Carburetor Overhaul Kit

Note: Contact Generac for quantity required

$

$

Not available

127

Briggs & Stratton 220352

Plug- Welch
(Superseded to 691718)

Note: Contact Generac for quantity required

$13.99

$

In Stock, only 4 left!

0

128

Briggs & Stratton 210811

Venturi- Carburetor

Note: Contact Generac for quantity required

$6.49

$

Usually ships in 2-12 days

0

132

Briggs & Stratton 212904

Stop- Throttle Lever
(Superseded to 691708)

Note: Contact Generac for quantity required

$8.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 293477

Float- Carburetor

Note: Contact Generac for quantity required

$29.99

$

In Stock, only 4 left!

0

134

Briggs & Stratton 293478

Valve and Seat-Fuel Inlet

Note: Contact Generac for quantity required

$29.99

$

In Stock, only 2 left!

0

135

Briggs & Stratton 68877

Gasket- Fuel Inlet Valve Seat

Note: Contact Generac for quantity required

$6.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 261357

Spring- Needle Valve

Note: Contact Generac for quantity required

$4.49

$

Usually ships in 2-12 days

0

157

Briggs & Stratton 27840

Gasket- Venturi

Note: Contact Generac for quantity required

$4.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271042

Gasket- Air Cleaner (Below Spacer)

Note: Contact Generac for quantity required

$8.49

$

Usually ships in 2-12 days

0

166

Briggs & Stratton 231314

Stud- Air Cleaner
(Superseded to 696244)

Note: Contact Generac for quantity required

$16.99

$

Usually ships in 2-12 days

0

172

Briggs & Stratton 280213

Spacer- Air Cleaner

Note: Contact Generac for quantity required

$8.49

$

In Stock, only 1 left!

0

172A

Briggs & Stratton 271139

Gasket- Air Cleaner (Above Spacer)
(Superseded to 271139S)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 20+

0

187

Briggs & Stratton 393815

Line- Fuel (Flexible)
(Superseded to 791880)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 393785

Plate- Gov. Control
(Superseded to 494826)

Note: Contact Generac for quantity required

$21.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 298090

Filter- Fuel (In fuel pipe)
(Superseded to 298090S)

Note: Contact Generac for quantity required

$

$

Not available

244

Briggs & Stratton 230318

Connector- Flex. Fuel Line
(Superseded to 691764)

Note: Contact Generac for quantity required

$14.99

$

In Stock, only 4 left!

0

351

Briggs & Stratton 93735

Screw- Terminal

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

352

Briggs & Stratton 66068

Washer- Insulating (2)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Washer- Lock (Shakeproof)(3)
(Superseded to 691077)

Note: Contact Generac for quantity required

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut- Hex (8-32)
(Superseded to 691612)

Note: Contact Generac for quantity required

$3.49

$

In Stock, only 1 left!

0

355

Briggs & Stratton 66554

Washer- Insulating

Note: Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 92987

Nut- Hex
(Superseded to 690800)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 13

0

378

Briggs & Stratton 22032

Washer- Needle Valve

Note: Contact Generac for quantity required

$

$

Not available

445

Briggs & Stratton 396424

Cartridge- Air Cleaner
(Superseded to 396424S)

Note: Contact Generac for quantity required

$13.99

$

In Stock, Qty 5

0

446

Briggs & Stratton 222844

Base- Air Cleaner
(Superseded to 691735)

Note: Contact Generac for quantity required

$17.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 212706

Knob- Choke Rod
(Superseded to 691668)

Note: Contact Generac for quantity required

$5.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 93722

Terminal Spade
(Superseded to 691084)

Note: Contact Generac for quantity required

$6.49

$

In Stock, only 1 left!

0

526

Briggs & Stratton 93343

Screw
(Superseded to 690297)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 12

0

601

Briggs & Stratton 93053

Clamp- Fuel Pipe
(Superseded to 791850)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 20+

0

642

Briggs & Stratton 223306

Cover- Air Cleaner
(Superseded to 493822)

Note: Contact Generac for quantity required

$

$

Not available

681

Briggs & Stratton 399619

Needle Valve

Note: Contact Generac for quantity required

$15.99

$

Usually ships in 2-12 days

0

852

Briggs & Stratton 396397

Cleaner Group- Air
(Superseded to 493822)

Note: Contact Generac for quantity required

$

$

Not available

883

Briggs & Stratton 270918

Gasket- Exhaust
(Superseded to 692237)

Note: Contact Generac for quantity required

$5.49

$

In Stock, only 4 left!

0
