580.328330 (8846-0) - Craftsman 2,400 Watt Portable Generator Kawasaki 5 Horsepower Engine Parts Diagram

2,400 Watt Portable Generator

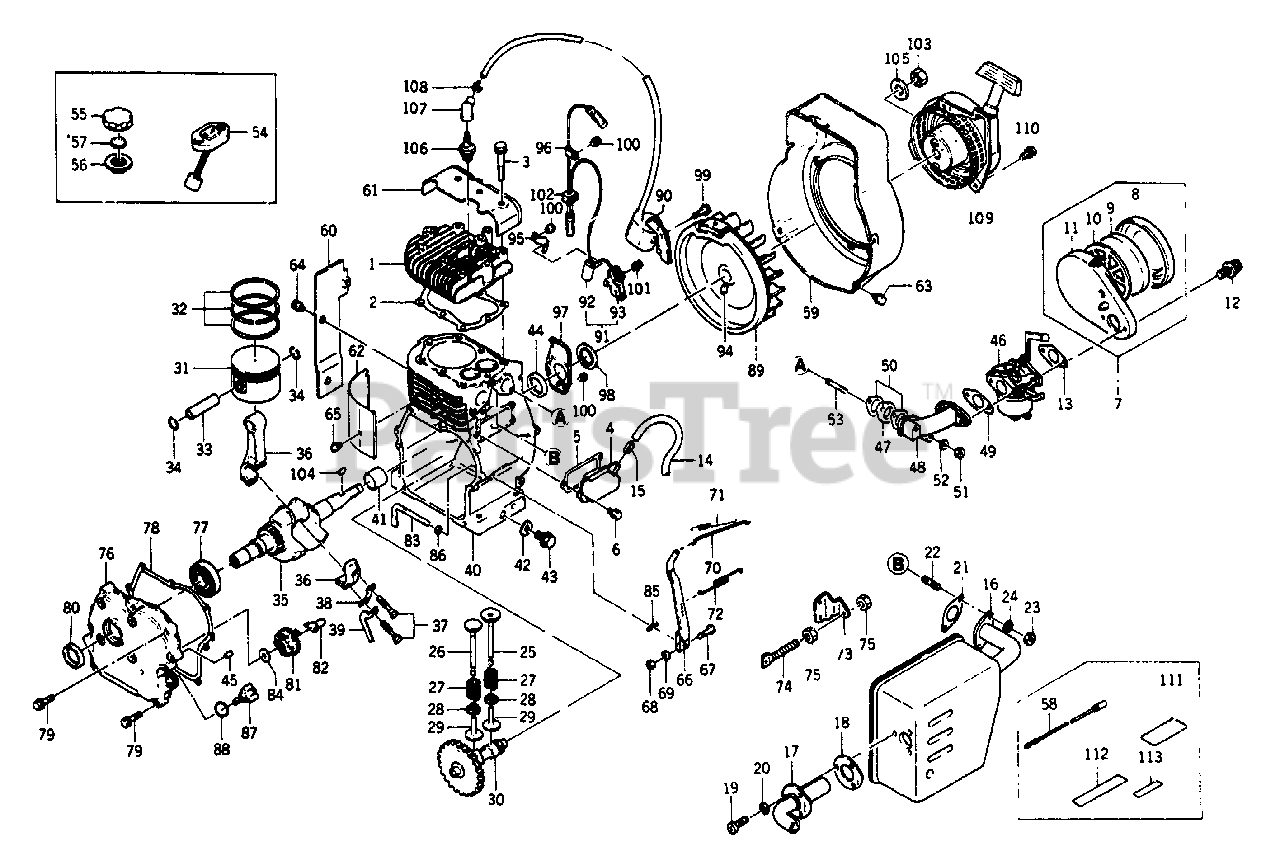

Kawasaki 5 Horsepower Engine Parts Diagram

  • Title
1

Briggs & Stratton 10065188

HEAD, Cylinder

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 10165188

GASKET, Cylinder Head

Note: Contact Generac for quantity required

$

$

Not available

3

Briggs & Stratton 10265188

BOLT (8 x 55)

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 10365188

COVER, Valve Chamber

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 10465188

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 10565188

BOLT (6 x 12)

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 10665188

AIR CLEANER ASSY

Note: Contact Generac for quantity required

$

$

Not available

8

Briggs & Stratton 10765188

COVER, Air Cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 10865188

ELEMENT

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 10965188

PLATE, Air Cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 11065188

CASE, Air Cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 11165188

BOLT (6 x 80)

Note: Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 11265188

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

14

Briggs & Stratton 11365188

TUBE, Rubber

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 11465188

PIPE

Note: Contact Generac for quantity required

$

$

Currently unavailable

16

Briggs & Stratton 66432

MUFFLER, Exhaust (Complete)
(Superseded to 691607)

Note: Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 11565188

ARRESTOR, Spark

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 11665188

GASKET

Note: Contact Generac for quantity required

$

$

Not available

19

Briggs & Stratton 11765188

SCREW

Note: Contact Generac for quantity required

$

$

Currently unavailable

20

Briggs & Stratton 11865188

WASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

21

Briggs & Stratton 11965188

GASKET
(Superseded to 11965188GS)

Note: Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 12065188

STUD
(Superseded to 12065188GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 12165188

NUT (8mm)

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 12265188

WASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 12365188

VALVE, Intake

Note: Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 12465188

VALVE, Exhaust

Note: Contact Generac for quantity required

$

$

Currently unavailable

27

Briggs & Stratton 12565188

SPRING, Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

28

Briggs & Stratton 12665188

SEAT, Valve Spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

29

Briggs & Stratton 12765188

TAPPET

Note: Contact Generac for quantity required

$

$

Currently unavailable

30

Briggs & Stratton 12865188

CAMSHAFT

Note: Contact Generac for quantity required

$

$

Currently unavailable

31

Briggs & Stratton 12965188

PISTON (Standard)

Note: Contact Generac for quantity required

$

$

Currently unavailable

31

Briggs & Stratton 13065188

PISTON (0.25mm OS)

Note: Contact Generac for quantity required

$

$

Currently unavailable

31

Briggs & Stratton 13165188

PISTON (0.50mm OS)

Note: Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 13265188

SET, Piston Ring (Standard)

Note: Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 13365188

SET, Piston Ring (0.25mm OS)

Note: Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 13465188

SET, Piston Ring (0.50mm OS)

Note: Contact Generac for quantity required

$

$

Currently unavailable

33

Briggs & Stratton 13565188

PIN, Piston

Note: Contact Generac for quantity required

$

$

Currently unavailable

34

Briggs & Stratton 13665188

RING, Snap

Note: Contact Generac for quantity required

$

$

Currently unavailable

35

Briggs & Stratton 13765188

CRANKSHAFT

Note: Contact Generac for quantity required

$

$

Currently unavailable

36

Briggs & Stratton 13865188

ROD ASSY, Connecting

Note: Contact Generac for quantity required

$

$

Currently unavailable

37

Briggs & Stratton 13965188

BOLT, Connecting Rod

Note: Contact Generac for quantity required

$

$

Currently unavailable

38

Briggs & Stratton 14065188

LOCKWASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

39

Briggs & Stratton 14165188

ARM, Splasher

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 14265188

CASE ASSY, Connecting

Note: Contact Generac for quantity required

$

$

Currently unavailable

41

Briggs & Stratton 14365188

BEARING, Plain

Note: Contact Generac for quantity required

$

$

Currently unavailable

42

Briggs & Stratton 14465188

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

43

Briggs & Stratton 14565188

BOLT (10 x 14)

Note: Contact Generac for quantity required

$

$

Currently unavailable

44

Briggs & Stratton 14665188

SEAL, Oil

Note: Contact Generac for quantity required

$

$

Currently unavailable

45

Briggs & Stratton 14765188

PIN, Dowel

Note: Contact Generac for quantity required

$

$

Currently unavailable

46

Briggs & Stratton 14865188

CARBURETOR ASSY

Note: Contact Generac for quantity required

$

$

Currently unavailable

47

Briggs & Stratton 14965188

INSULATOR

Note: Contact Generac for quantity required

$

$

Currently unavailable

48

Briggs & Stratton 15065188

PIPE, Inlet

Note: Contact Generac for quantity required

$

$

Not available

49

Briggs & Stratton 15165188

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

50

Briggs & Stratton 15265188

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

51

Briggs & Stratton 15365188

NUT (6mm)

Note: Contact Generac for quantity required

$

$

Currently unavailable

52

Briggs & Stratton 15465188

WASHER
(Superseded to 15465188GS)

Note: Contact Generac for quantity required

$1.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 15565188

STUD

Note: Contact Generac for quantity required

$

$

Currently unavailable

54

Briggs & Stratton 66391B

GAUGE, Fuel Level

Note: Contact Generac for quantity required

$

$

Not available

55

Briggs & Stratton 66802A

CAP, Fuel Tank

Note: Contact Generac for quantity required

$

$

Currently unavailable

56

Briggs & Stratton 66802C

GASKET
(Superseded to 66802CGS)

Note: Contact Generac for quantity required

$6.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 66802B

BREATHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

58

Briggs & Stratton 15665188

WIRE

Note: Contact Generac for quantity required

$

$

Currently unavailable

59

Briggs & Stratton 15765188

HOUSING, Fan

Note: Contact Generac for quantity required

$

$

Currently unavailable

60

Briggs & Stratton 15865188

CASE, Spiral

Note: Contact Generac for quantity required

$

$

Currently unavailable

61

Briggs & Stratton 15965188

COVER, Cylinder Head

Note: Contact Generac for quantity required

$

$

Currently unavailable

62

Briggs & Stratton 16065188

COVER, Cylinder

Note: Contact Generac for quantity required

$

$

Currently unavailable

63

Briggs & Stratton 16165188

BOLT (6 x 10)

Note: Contact Generac for quantity required

$

$

Currently unavailable

64

Briggs & Stratton 10565188

BOLT (6 x 12)

Note: Contact Generac for quantity required

$

$

Currently unavailable

65

Briggs & Stratton 16265188

SCREW (5 x 10)

Note: Contact Generac for quantity required

$

$

Currently unavailable

66

Briggs & Stratton 16365188

ARM, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

67

Briggs & Stratton 16465188

BOLT (6 x 25)

Note: Contact Generac for quantity required

$

$

Currently unavailable

68

Briggs & Stratton 15365188

NUT (6mm)

Note: Contact Generac for quantity required

$

$

Currently unavailable

69

Briggs & Stratton 15465188

WASHER
(Superseded to 15465188GS)

Note: Contact Generac for quantity required

$1.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 16565188

ROD, Governor

Note: Contact Generac for quantity required

$

$

Not available

71

Briggs & Stratton 16665188

SPRING, Link

Note: Contact Generac for quantity required

$

$

Currently unavailable

72

Briggs & Stratton 16765188

SPRING, Governor
(Superseded to 16765188GS)

Note: Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 16865188

BRACKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

74

Briggs & Stratton 16965188

ADJUSTER, Spring
(Superseded to 16965188GS)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 17065188

NUT (6mm)
(Superseded to 17065188GS)

Note: Contact Generac for quantity required

$1.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 17165188

BASE, Side

Note: Contact Generac for quantity required

$

$

Currently unavailable

77

Briggs & Stratton 17265188

BEARING, Ball (6205)

Note: Contact Generac for quantity required

$

$

Currently unavailable

78

Briggs & Stratton 17365188

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

79

Briggs & Stratton 17465188

BOLT (6 x 30)

Note: Contact Generac for quantity required

$

$

Currently unavailable

80

Briggs & Stratton 17565188

SEAL, Oil
(Superseded to 17565188GS)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 17665188

GOVERNOR

Note: Contact Generac for quantity required

$

$

Not available

82

Briggs & Stratton 17765188

SLEEVE, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

83

Briggs & Stratton 17865188

TIP, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

84

Briggs & Stratton 17965188

WASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

85

Briggs & Stratton 18065188

PIN, Snap
(Superseded to 18065188GS)

Note: Contact Generac for quantity required

$1.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 18165188

WASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

87

Briggs & Stratton 18265188

GAUGE, Oil Level

Note: Contact Generac for quantity required

$

$

Currently unavailable

88

Briggs & Stratton 18365188

O-RING

Note: Contact Generac for quantity required

$

$

Not available

89

Briggs & Stratton 18465188

FLYWHEEL

Note: Contact Generac for quantity required

$

$

Currently unavailable

90

Briggs & Stratton 18565188

COIL, Ignition

Note: Contact Generac for quantity required

$

$

Currently unavailable

91

Briggs & Stratton 18665188

BREAKER ASSY, Contact

Note: Contact Generac for quantity required

$

$

Currently unavailable

92

Briggs & Stratton 18765188

CONDENSOR

Note: Contact Generac for quantity required

$

$

Currently unavailable

93

Briggs & Stratton 18865188

BREAKER, Contact

Note: Contact Generac for quantity required

$

$

Currently unavailable

94

Briggs & Stratton 18965188

BRUSH

Note: Contact Generac for quantity required

$

$

Not available

95

Briggs & Stratton 19065188

CLAMP

Note: Contact Generac for quantity required

$

$

Currently unavailable

96

Briggs & Stratton 19165188

CLAMP

Note: Contact Generac for quantity required

$

$

Currently unavailable

97

Briggs & Stratton 19265188

COVER

Note: Contact Generac for quantity required

$

$

Currently unavailable

98

Briggs & Stratton 19365188

RING

Note: Contact Generac for quantity required

$

$

Currently unavailable

99

Briggs & Stratton 19465188

BOLT (5 x 20)

Note: Contact Generac for quantity required

$

$

Currently unavailable

100

Briggs & Stratton 19565188

SCREW (4 x 8)

Note: Contact Generac for quantity required

$

$

Not available

101

Briggs & Stratton 19665188

SCREW (4 x 20)

Note: Contact Generac for quantity required

$

$

Currently unavailable

102

Briggs & Stratton 19765188

GROMMET

Note: Contact Generac for quantity required

$

$

Currently unavailable

103

Briggs & Stratton 19865188

NUT (14mm)

Note: Contact Generac for quantity required

$

$

Currently unavailable

104

Briggs & Stratton 19965188

KEY

Note: Contact Generac for quantity required

$

$

Currently unavailable

105

Briggs & Stratton 20065188

WASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

106

Briggs & Stratton 20165188

SPARK PLUG

Note: Contact Generac for quantity required

$

$

Currently unavailable

107

Briggs & Stratton 20265188

CAP, Plug

Note: Contact Generac for quantity required

$

$

Currently unavailable

108

Briggs & Stratton 20365188

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

109

Briggs & Stratton 20465188

STARTER ASSY- Recoil

Note: Contact Generac for quantity required

$

$

Currently unavailable

110

Briggs & Stratton 20565188

BOLT (6 x 10)

Note: Contact Generac for quantity required

$

$

Currently unavailable

111

Briggs & Stratton 20665188

DECAL

Note: Contact Generac for quantity required

$

$

Currently unavailable

112

Briggs & Stratton 20765188

DECAL

Note: Contact Generac for quantity required

$

$

Currently unavailable

113

Briggs & Stratton 20865188

DECAL

Note: Contact Generac for quantity required

$

$

Currently unavailable
