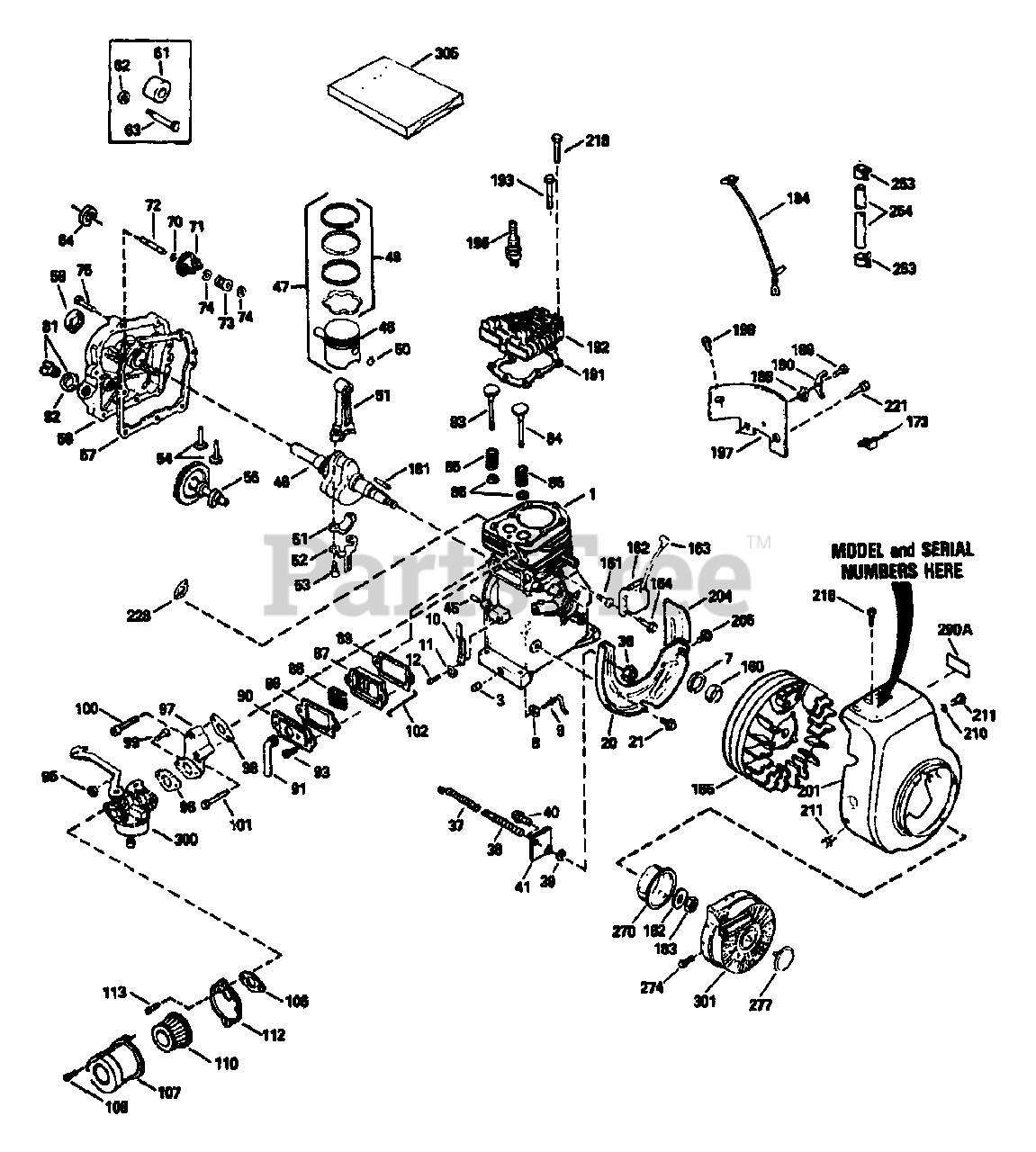

Craftsman 4-Cycle Engine Eng. Model No. 143.784062 Parts Diagram

  • Title

1

Briggs & Stratton 34755A

Cylinder Assy.

Note: (Incl. Nos. 3, 7 & 46) Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 27642

Plug, Pipe (1/4-18)

Note: Contact Generac for quantity required

$

$

Not available

7

Briggs & Stratton 32600

Seal, Oil

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 28277

Washer, Flat

Note: Contact Generac for quantity required

$

$

Not available

9

Briggs & Stratton 31334

Rod, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 31510

Lever, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 31335

Clamp, Governor lever

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 650548

Screw, Hex washer hd., 8-32 x 5/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

20

Briggs & Stratton 33342

Baffle, Blower housing

Note: Contact Generac for quantity required

$

$

Currently unavailable

21

Briggs & Stratton 650561

Screw, Hex washer hd. Durlok, 1/4-20 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

36

Briggs & Stratton 33450

Nut, 10-32 Lock

Note: Contact Generac for quantity required

$

$

Currently unavailable

37

Briggs & Stratton 30342

Spring, Extension

Note: Contact Generac for quantity required

$

$

Not available

38

Briggs & Stratton 30845A

Bolt, Governor spring adjusting

Note: Contact Generac for quantity required

$

$

Currently unavailable

39

Briggs & Stratton 650518

Lockwasher

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 30200

Screw, Hex washer hd. self-tap Sems, 10-24 x 9/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

41

Briggs & Stratton 30846

Bracket, Governor adjusting bolt

Note: Contact Generac for quantity required

$

$

Currently unavailable

45

Briggs & Stratton 26727

Pin, Dowel
(Superseded to 26727GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 34724

Crankshaft Assy.

Note: Contact Generac for quantity required

$

$

Currently unavailable

47

Briggs & Stratton 34514

Piston, Pin & Ring Assy. (Std.)

Note: (Incl. Nos. 48, 49 & 50) - Contact Generac for quantity required

$

$

Currently unavailable

47

Briggs & Stratton 34515

Piston, Pin & Ring Assy. (.010 oversize)

Note: (Incl. Nos. 48, 49 & 50) - Contact Generac for quantity required

$

$

Currently unavailable

47

Briggs & Stratton 34516

Piston, Pin & Ring Assy. (.020 oversize)

Note: (Incl. Nos. 48, 49 & 50) - Contact Generac for quantity required

$

$

Currently unavailable

48

Briggs & Stratton 32538B

Piston & Pin Assy. (Std.)

Note: (Incl. No. 50) - Contact Generac for quantity required

$

$

Currently unavailable

48

Briggs & Stratton 32548B

Piston & Pin Assy. (.010 oversize)

Note: (Incl. No. 50) - Contact Generac for quantity required

$

$

Currently unavailable

48

Briggs & Stratton 32549B

Piston & Pin Assy. (.020 oversize)

Note: (Incl. No. 50) - Contact Generac for quantity required

$

$

Currently unavailable

49

Briggs & Stratton 28986

Ring Set, Piston (Std.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

49

Briggs & Stratton 28987

Ring Set, Piston (.010 oversize)

Note: Contact Generac for quantity required

$

$

Currently unavailable

49

Briggs & Stratton 28988

Ring Set, Piston (.020 oversize)

Note: Contact Generac for quantity required

$

$

Currently unavailable

50

Briggs & Stratton 20381

Ring, Piston pin retaining

Note: Contact Generac for quantity required

$

$

Currently unavailable

51

Briggs & Stratton 30963B

Rod Assy., Connecting

Note: (Incl. Nos. 52 & 53) - Contact Generac for quantity required

$

$

Currently unavailable

52

Briggs & Stratton 28594

Dipper, Oil

Note: Contact Generac for quantity required

$

$

Currently unavailable

53

Briggs & Stratton 32610A

Screw, Connecting rod

Note: Contact Generac for quantity required

$

$

Currently unavailable

54

Briggs & Stratton 27241

Lifter, Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

55

Briggs & Stratton 32197A

Camshaft (Compression Release)

Note: Contact Generac for quantity required

$

$

Currently unavailable

57

Briggs & Stratton 27677

Gasket, Cylinder cover

Note: Contact Generac for quantity required

$

$

Currently unavailable

58

Briggs & Stratton 30756B

Cover, Cylinder

Note: (Incl. Nos. 59, 72, 81 & 82) - Contact Generac for quantity required

$

$

Currently unavailable

59

Briggs & Stratton 28540

Seal, Oil
(Superseded to 7028540YP)

Note: Contact Generac for quantity required

$10.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 28458

Bearing, Ball

Note: Contact Generac for quantity required

$

$

Currently unavailable

62

Briggs & Stratton 28537

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

63

Briggs & Stratton 30200

Screw, Hex washer hd. self-tap Sems, 10-24 x 9/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

64

Briggs & Stratton 28539

Ring, Retaining

Note: Contact Generac for quantity required

$

$

Currently unavailable

70

Briggs & Stratton 30590A

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

71

Briggs & Stratton 30591

Gear, Governor

Note: (Incl. No. 70) - Contact Generac for quantity required

$

$

Currently unavailable

72

Briggs & Stratton 30574

Shaft, Mechanical governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

73

Briggs & Stratton 30588A

Spool, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

74

Briggs & Stratton 29193

Ring, Retaining
(Superseded to 7029193YP)

Note: Contact Generac for quantity required

$7.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 650488

Screw, Hex hd. Sems, 1/4-20 x 1-1/4

Note: Contact Generac for quantity required

$

$

Currently unavailable

81

Briggs & Stratton 27625

Plug Assy., Oil

Note: (Incl. No. 82) - Contact Generac for quantity required

$

$

Currently unavailable

82

Briggs & Stratton 29673

Gasket, Oil plug

Note: Contact Generac for quantity required

$

$

Not available

83

Briggs & Stratton 29313C

Valve, Exhaust (Std.)

Note: (Incl. No. 86) - Contact Generac for quantity required

$

$

Currently unavailable

83

Briggs & Stratton 29315C

Valve, Exhaust (1/32" oversize)

Note: (Incl. No. 86) - Contact Generac for quantity required

$

$

Currently unavailable

84

Briggs & Stratton 29314B

Valve, Intake (Std.)

Note: (Incl. No. 86) - Contact Generac for quantity required

$

$

Currently unavailable

84

Briggs & Stratton 29315C

Valve, Intake (1/32" oversize)

Note: (Incl. No. 86) - Contact Generac for quantity required

$

$

Currently unavailable

85

Briggs & Stratton 31672

Spring, Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

86

Briggs & Stratton 31673

Cap, Valve spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

87

Briggs & Stratton 27666

Body, Valve cover

Note: Contact Generac for quantity required

$11.99

$

In Stock, only 3 left!

0

88

Briggs & Stratton 31410

Element, Breather

Note: Contact Generac for quantity required

$

$

Currently unavailable

89

Briggs & Stratton 27234

Gasket, Breather
(Superseded to 7027234YP)

Note: Contact Generac for quantity required

$279.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 34146

Cover, Valve spring box

Note: Contact Generac for quantity required

$

$

Currently unavailable

91

Briggs & Stratton 35350

Tube, Breather

Note: Contact Generac for quantity required

$

$

Currently unavailable

93

Briggs & Stratton 650128

Screw, Fil, hd. Sems, 10-24 x 1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

95

Briggs & Stratton 29752

Nut & Lockwasher Assy., 1/4-28

Note: Contact Generac for quantity required

$

$

Currently unavailable

96

Briggs & Stratton 26756

Gasket, Carburetor

Note: Contact Generac for quantity required

$

$

Currently unavailable

97

Briggs & Stratton 28416A

Pipe, Intake

Note: Contact Generac for quantity required

$

$

Currently unavailable

98

Briggs & Stratton 26754

Gasket, Intake to cylinder
(Superseded to 7026754YP)

Note: Contact Generac for quantity required

$47.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 6201

Screw, Hex hd., 1/4-28 x 7/8

Note: Contact Generac for quantity required

$70.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 650664

Screw, Fil. hd. Sems, 1/4-20 x 1-19/32

Note: Contact Generac for quantity required

$

$

Currently unavailable

101

Briggs & Stratton 650840

Screw, Fil. hd. Sems, 1/4-20 x 1-7/32

Note: Contact Generac for quantity required

$

$

Currently unavailable

102

Briggs & Stratton 31858

Link, Governor to throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

106

Briggs & Stratton 27272

Gasket, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

107

Briggs & Stratton 31715

Body, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

108

Briggs & Stratton 28820

Screw, Fil. hd. Sems, 10-32 x 1/2
(Superseded to 7045199YP)

$222.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 30727

Element, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

112

Briggs & Stratton 31691

Bracket, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

113

Briggs & Stratton 650152

Screw, Fil. hd., 8-32 x 3/8

$

$

Currently unavailable

160

Briggs & Stratton 34080

Spacer, Flywheel key

Note: Contact Generac for quantity required

$

$

Currently unavailable

161

Briggs & Stratton 650872

Stud, Solid state mounting

$

$

Currently unavailable

162

Briggs & Stratton 34443A

Solid State Assy.

Note: Contact Generac for quantity required

$

$

Currently unavailable

163

Briggs & Stratton 610118

Cover, Spark plug

Note: Contact Generac for quantity required

$

$

Currently unavailable

164

Briggs & Stratton 650814

Screw, Hex hd. Sems, 10-24 x 1

$

$

Currently unavailable

165

Briggs & Stratton 611080

Flywheel

Note: Contact Generac for quantity required

$

$

Currently unavailable

173

Briggs & Stratton 34246

Clip, Wire

$

$

Currently unavailable

181

Briggs & Stratton 610961

Key, Flywheel

Note: Contact Generac for quantity required

$

$

Currently unavailable

182

Briggs & Stratton 650815

Washer. Belleville

Note: Contact Generac for quantity required

$

$

Currently unavailable

183

Briggs & Stratton 650816

Nut, Flywheel

$

$

Currently unavailable

184

Briggs & Stratton 35349

Wire, Ground

Note: Contact Generac for quantity required

$

$

Currently unavailable

188

Briggs & Stratton 28545

Grommet, Plastic

$

$

Currently unavailable

189

Briggs & Stratton 650760

Screw, Pan hd. taptite, 8-32 x 3/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

190

Briggs & Stratton 33356

Tab, Terminal

Note: Contact Generac for quantity required

$

$

Currently unavailable

191

Briggs & Stratton 29953B

Gasket, Cylinder head

$

$

Currently unavailable

192

Briggs & Stratton 30579

Head, Cylinder

Note: Contact Generac for quantity required

$

$

Currently unavailable

193

Briggs & Stratton 6021A

Screw, Hex flange hd., 5/16-18 x 1-1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

196

Briggs & Stratton 34251

Plug, Spark (Champion RJ-17LM or equivalent)

$

$

Currently unavailable

197

Briggs & Stratton 29745

Extension, Blower housing
(Superseded to 29745GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

198

Briggs & Stratton 650128

Screw, Fil. hd. Sems, 10-24 x 1/2

$

$

Currently unavailable

201

Briggs & Stratton 35585

Housing, Blower

Note: Contact Generac for quantity required

$

$

Currently unavailable

204

Briggs & Stratton 33341

Extension, Baffle

Note: Contact Generac for quantity required

$

$

Currently unavailable

205

Briggs & Stratton 650701

Screw, Hex washer hd. shakeproof self-drilling, 8-18 x 7/16

$

$

Currently unavailable

210

Briggs & Stratton 650168

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

211

Briggs & Stratton 29212

Screw, Hex hd. Sems, 1/4-28 x 7/16
(Superseded to 7029212YP)

$75.99

$

Usually ships in 2-12 days

0

218

Briggs & Stratton 650694A

Screw, Hex flange hd., 5/16-18 x 2

Note: Contact Generac for quantity required

$

$

Currently unavailable

221

Briggs & Stratton 650751

Screw, Hex hd. w/conical spring washer, 1/4-20 x 7/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

228

Briggs & Stratton 33170

Gasket, Exhaust

$

$

Currently unavailable

253

Briggs & Stratton 26460

Clamp, Fuel line

Note: Contact Generac for quantity required

$

$

Currently unavailable

254

Briggs & Stratton 29774

Line, Fuel

$

$

Currently unavailable

270

Briggs & Stratton 34694

Cup, Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

274

Briggs & Stratton 650884

Screw, Hex washer hd., 8-32 x 1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

277

Briggs & Stratton 35392

Plug, Starter

$

$

Currently unavailable

290A

Briggs & Stratton 34346

Decal, Lubrication

Note: Contact Generac for quantity required

$

$

Currently unavailable

300

Briggs & Stratton 632496

Carburetor

Note: (Incl. No. 96) - Contact Generac for quantity required

$

$

Currently unavailable

301

Briggs & Stratton 590642

Starter, Rewind

$9.49

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 33233

Gasket Set

Note: Contact Generac for quantity required - Includes Gasket Set, Ref. Nos. 57, 82, 89, 96, 98, 106, 191, & 228

$

$

Currently unavailable
