580.328320 (8845-0) - Craftsman 1,400 Watt Portable Generator AC Generator Parts Diagram

1,400 Watt Portable Generator

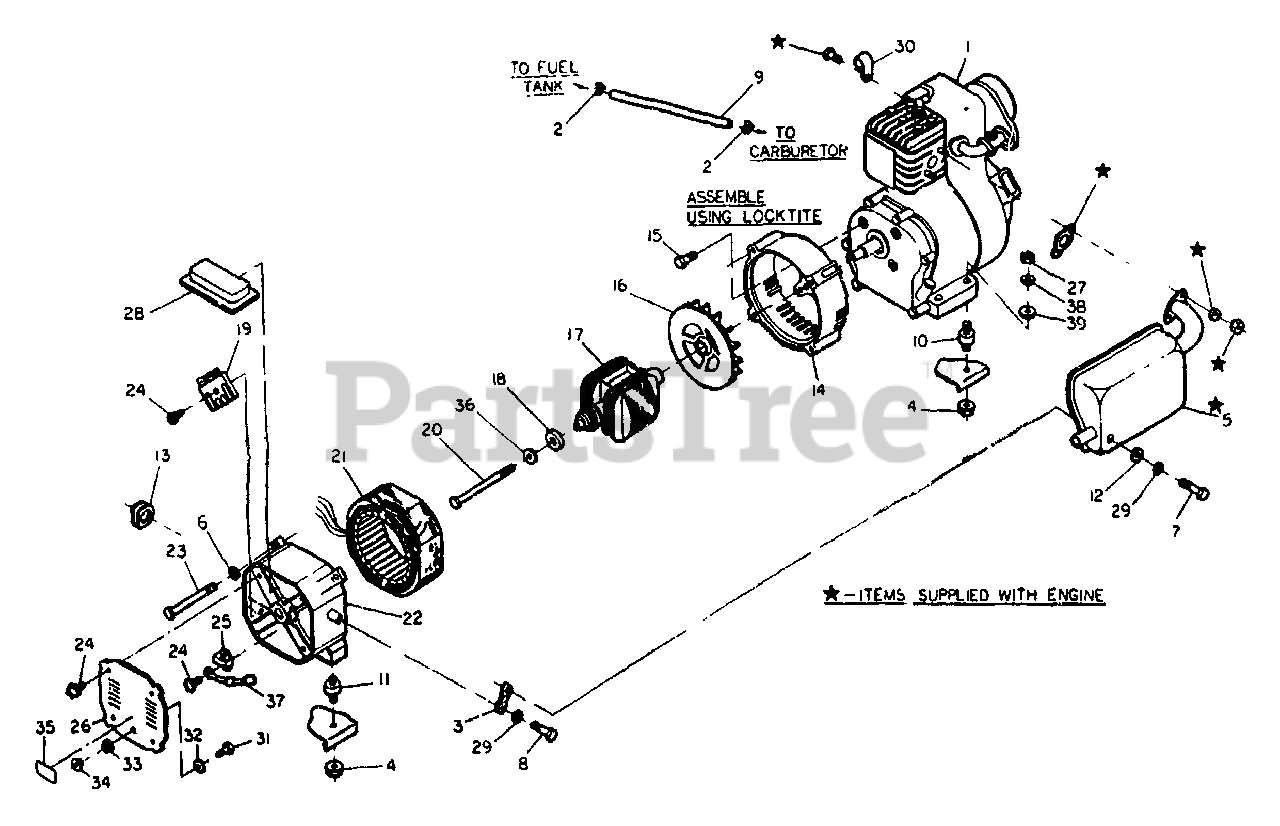

AC Generator Parts Diagram

  • Title

1

Briggs & Stratton 65187

ENGINE- Kawasaki FA130- 3 Horsepower

$

$

Currently unavailable

2

Briggs & Stratton 66836

CLAMP, Fuel Line

$

$

Currently unavailable

3

Briggs & Stratton 66462

BRACKET, Muffler Support

$

$

Not available

4

Briggs & Stratton 66834

NUT, Flanged Lock- M8-1.25

$

$

Currently unavailable

5

Briggs & Stratton 64677

MUFFLER, Spark Arrest

$

$

Not available

6

Briggs & Stratton 22097

WASHER, Lock- M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 52243

CAPSCREW, Hex Head- M10-1.50 x 60mm

$

$

Not available

8

Briggs & Stratton 51755

CAPSCREW, Hex Head- M10-1.50 x 16mm

$

$

Currently unavailable

9

Briggs & Stratton 66837

HOSE, Fuel- 300mm long

$

$

Not available

10

Briggs & Stratton 66443A

MOUNT, Vibration

$

$

Currently unavailable

11

Briggs & Stratton 66443B

MOUNT, Vibration
(Superseded to 66443BGS)

$20.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 49809

WASHER, Flat- M10

$

$

Currently unavailable

13

Briggs & Stratton 67022

GROMMET, Lead Outlet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365

HOUSING, Engine Adapter
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 39253

CAPSCREW, Hex Head- M8-1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

16

Briggs & Stratton 66389

FAN, Cooling

$

$

Not available

17

Briggs & Stratton 65783

ROTOR ASSEMBLY

$

$

Currently unavailable

18

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

20

Briggs & Stratton 66448A

BOLT, Rotor- M8-1.25 x 180mm

$

$

Currently unavailable

21

Briggs & Stratton 65784

STATOR ASSEMBLY

$

$

Currently unavailable

22

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

23

Briggs & Stratton 66449A

BOLT, Stator- M6-1.00 x 70mm

$

$

Not available

24

Briggs & Stratton 66849

SCREW (Taptite)- M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66386

BRUSH ASSEMBLY
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 67025

COVER, Bearing Carrier

$

$

Currently unavailable

27

Briggs & Stratton 45771

NUT, Hex- M8-1.25

$

$

Not available

28

Briggs & Stratton 66850

BOARD, Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 46526

WASHER, Lock- M10

$

$

Not available

30

Briggs & Stratton 66894

CLAMP, Fuel Line Support
(Superseded to 695002)

$8.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 49815

SCREW, Machine- M5-0.80 x 16mm
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 67444

WASHER, Serrated- M5

$

$

Currently unavailable

33

Briggs & Stratton 52856

NUT, Flanged Lock- M5-0.80
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67435

NUT, Wing- M5-0.80

$

$

Currently unavailable

35

Briggs & Stratton 67210

DECAL- Ground
(Superseded to 67210GS)

$8.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 67451

WASHER, Flat (Special) - M8

$

$

Currently unavailable

37

Briggs & Stratton 67462

DIODE ASSEMBLY
(Superseded to 67462GS)

$22.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 22129

WASHER, Lock- M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

39

Briggs & Stratton 49810

WASHER, Flat- M8
(Superseded to 7049810YP)

$128.99

$

Usually ships in 2-12 days

0
