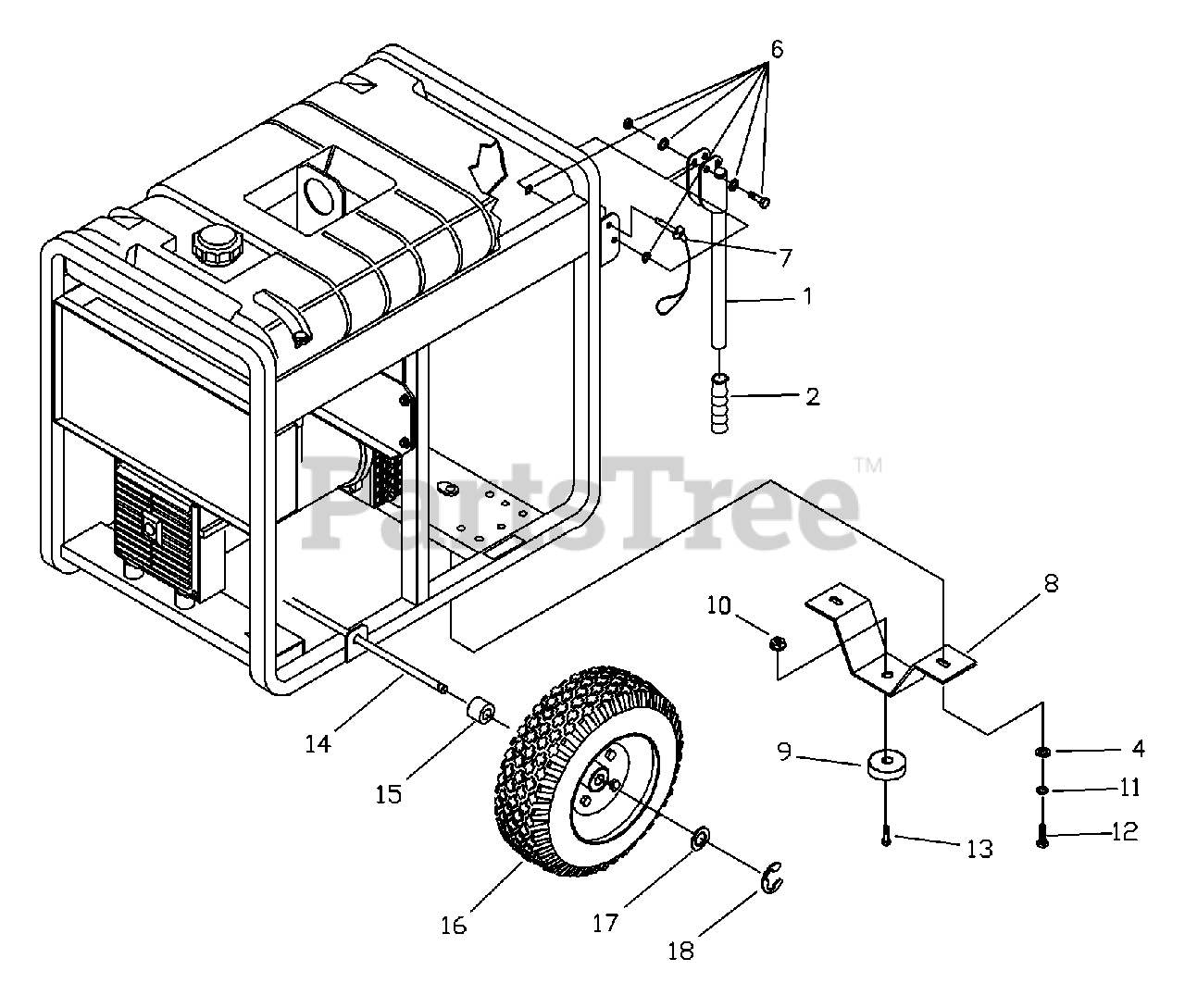

580.328310 (030203-0) - Craftsman 10,000 Watt Portable Generator Wheel Kit (189512) Parts Diagram

10,000 Watt Portable Generator

Wheel Kit (189512) Parts Diagram

  • Title
1

Briggs & Stratton B193200GS

ASSY, Handle

Note: (Includes Item 2)

$39.99

$

In Stock, Qty 5

0

2

Briggs & Stratton 189718GS

GRIP
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

4

-----

WASHER, Flat, 5/16 - M8

Note: (Purchase locally)

$

$

Not available

5

-----

NUT, M8 Nylok

Note: (Purchase locally)

$

$

Not available

6

Briggs & Stratton 194034GS

KIT, Hardware Handle Fold-Down

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4135GS

PIN, with Lanyard

$

$

Not available

8

Briggs & Stratton B93394GS

LEG, Mounting Support

$22.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 191413GS

VIBE MOUNT, w/Washer

$6.49

$

In Stock, Qty 8

0

10

-----

NUT, 1/4 - 20 Serrated Lock

Note: (Purchase locally)

$

$

Not available

11

-----

WASHER, M8 Lock

Note: (Purchase locally)

$

$

Not available

12

-----

HHCS, M8 - 1.25 x 20 Lg.

Note: (Purchase locally)

$

$

Not available

13

-----

HHCS, 1/4 - 20 x 1.00 Lg.

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 191267BGS

AXLE
(Superseded to 191267WGS)

$38.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 89635GS

SPACER, Wheel
(Superseded to B89635GS)

$29.99

$

Usually ships in 2-12 days

0

$92.99

$

Usually ships in 2-12 days

0

17

-----

WASHER, Flat, 5/8

Note: (Purchase locally)

$

$

Not available

18

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 15

0
