580.328310 (030203-0) - Craftsman 10,000 Watt Portable Generator Control Panel (186084) Parts Diagram

10,000 Watt Portable Generator

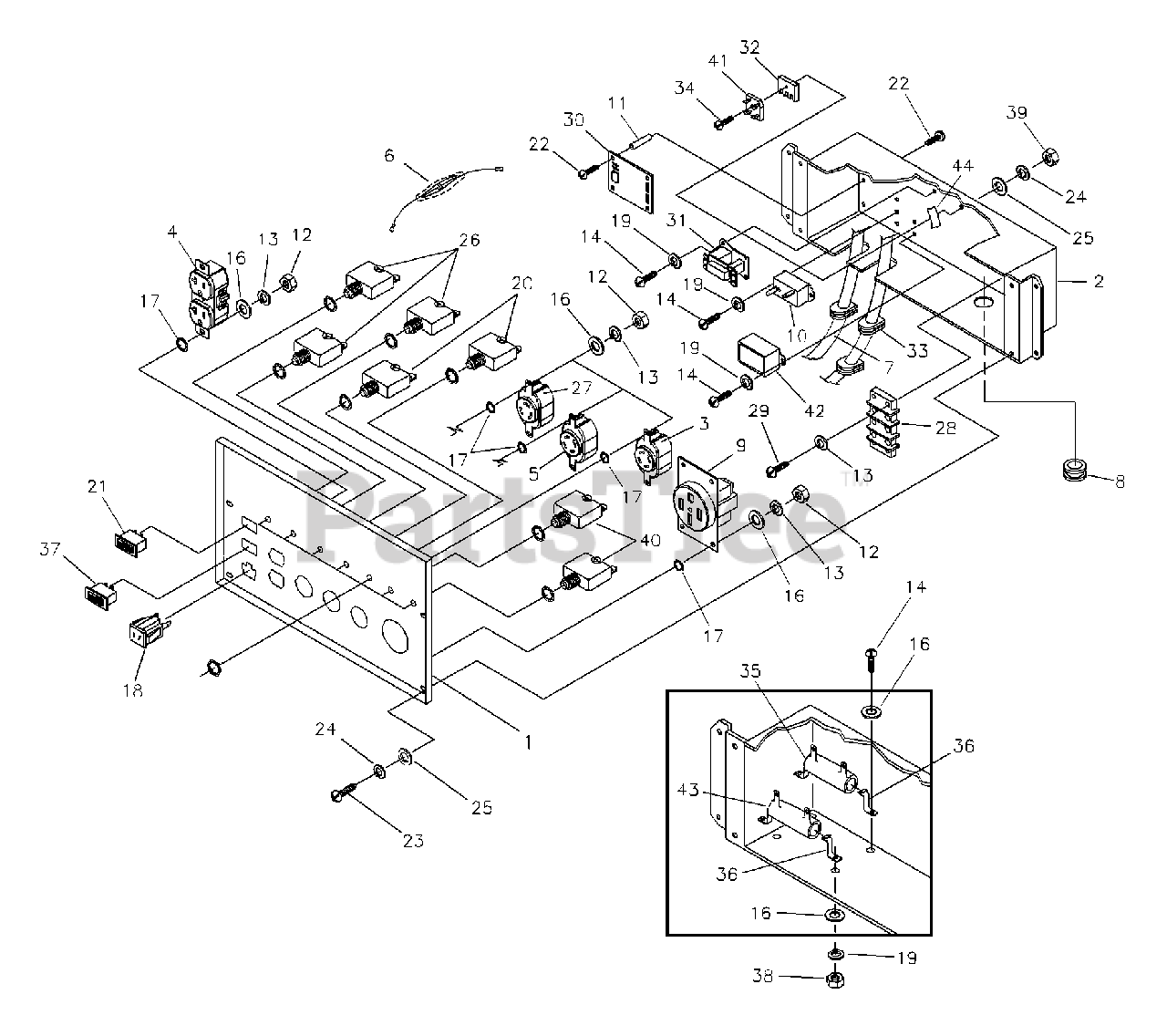

Control Panel (186084) Parts Diagram

  • Title

1

Briggs & Stratton AB4432GS

PANEL, Control

$

$

Not available

2

Briggs & Stratton B95906GS

BOX, Control

$

$

Not available

3

Briggs & Stratton 43437GS

OUTLET, 120/240V, 30A Locking

$17.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 68759GS

OUTLET, 120V, 20A Duplex

$24.99

$

In Stock, only 4 left!

0

5

Briggs & Stratton 68868GS

OUTLET, 120V, 30A Locking
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B5112GS

ASSY, Diode

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 186102GS

ASSY, Engine Harness

$57.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 90576GS

GROMMET, Rubber

$

$

Not available

9

Briggs & Stratton B4262GS

OUTLET, 120/240V 50A

$142.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 87962GS

BREAKER, Circuit

$29.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 93929GS

STAND OFF, 1/2" Hex

$

$

Not available

12

-----

NUT, M4 - 0.7 Hex

Note: (Purchase locally)

$

$

Not available

13

-----

WASHER, Lock, #8 M4

Note: (Purchase locally)

$

$

Not available

14

-----

SCREW, M3 - .05 x 10mm

Note: (Purchase locally)

$

$

Not available

16

-----

WASHER, Flat, #8

Note: (Purchase locally)

$

$

Not available

17

-----

WASHER, #8 Shakeproof

Note: (Purchase locally)

$

$

Not available

18

Briggs & Stratton 90418GS

OUTLET, 12V DC Snap

$

$

Not available

19

-----

WASHER, Lock, M3

Note: (Purchase locally)

$

$

Not available

20

Briggs & Stratton 75207AGS

BREAKER, Circuit, 30A
(Superseded to 706178)

$34.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 78653GS

SWITCH, Run - Stop

$

$

Not available

22

-----

SCREW, M3 - 0.5 x 20mm

Note: (Purchase locally)

$

$

Not available

23

-----

SCREW, M5 - .08 x 12mm

Note: (Purchase locally)

$

$

Not available

24

-----

WASHER, Lock, M5

Note: (Purchase locally)

$

$

Not available

25

-----

WASHER, Flat, M5

Note: (Purchase locally)

$

$

Not available

26

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A
(Superseded to 209872GS)

$9.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 74190GS

OUTLET, 120V/20A

$

$

Not available

28

Briggs & Stratton 92953GS

BLOCK, 50A, 3 - Terminal

$

$

Not available

29

-----

SCREW, M4 x 20mm

Note: (Purchase locally)

$

$

Not available

30

Briggs & Stratton 94117GS

BOARD, Idle Control

$

$

Not available

31

Briggs & Stratton 84028GS

TRANSFORMER, Idle Control

$47.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

33

Briggs & Stratton 84135GS

GROMMET, Rubber

$

$

Not available

34

-----

SCREW, M5 - 0.8 x 30mm

Note: (Purchase locally)

$

$

Not available

35

Briggs & Stratton 186200GS

RESISTOR, .25 OHM, 25 Watt
(Superseded to 205846GS)

$

$

Not available

36

Briggs & Stratton B4893GS

STAND OFF

$

$

Not available

37

Briggs & Stratton 82538GS

SWITCH, On - Off

$6.99

$

Usually ships in 2-12 days

0

38

-----

NUT, Hex, M3 - 0.5

Note: (Purchase locally)

$

$

Not available

39

-----

HEXNUT, M5 - 0.8

Note: (Purchase locally)

$

$

Not available

40

Briggs & Stratton B4445GS

BREAKER, Circuit, 45A

$161.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton B4894GS

RECTIFIER, Battery Charge

$

$

Not available

42

Briggs & Stratton 77314GS

RELAY, 3A Thermal

$

$

Not available

43

Briggs & Stratton B4892GS

RESISTOR, 2 OHM. 25 Watt
(Superseded to B4893GS)

$

$

Not available

44

Briggs & Stratton 27565GS

TAPE, Glass Insulation x 1.5"

$

$

Not available
