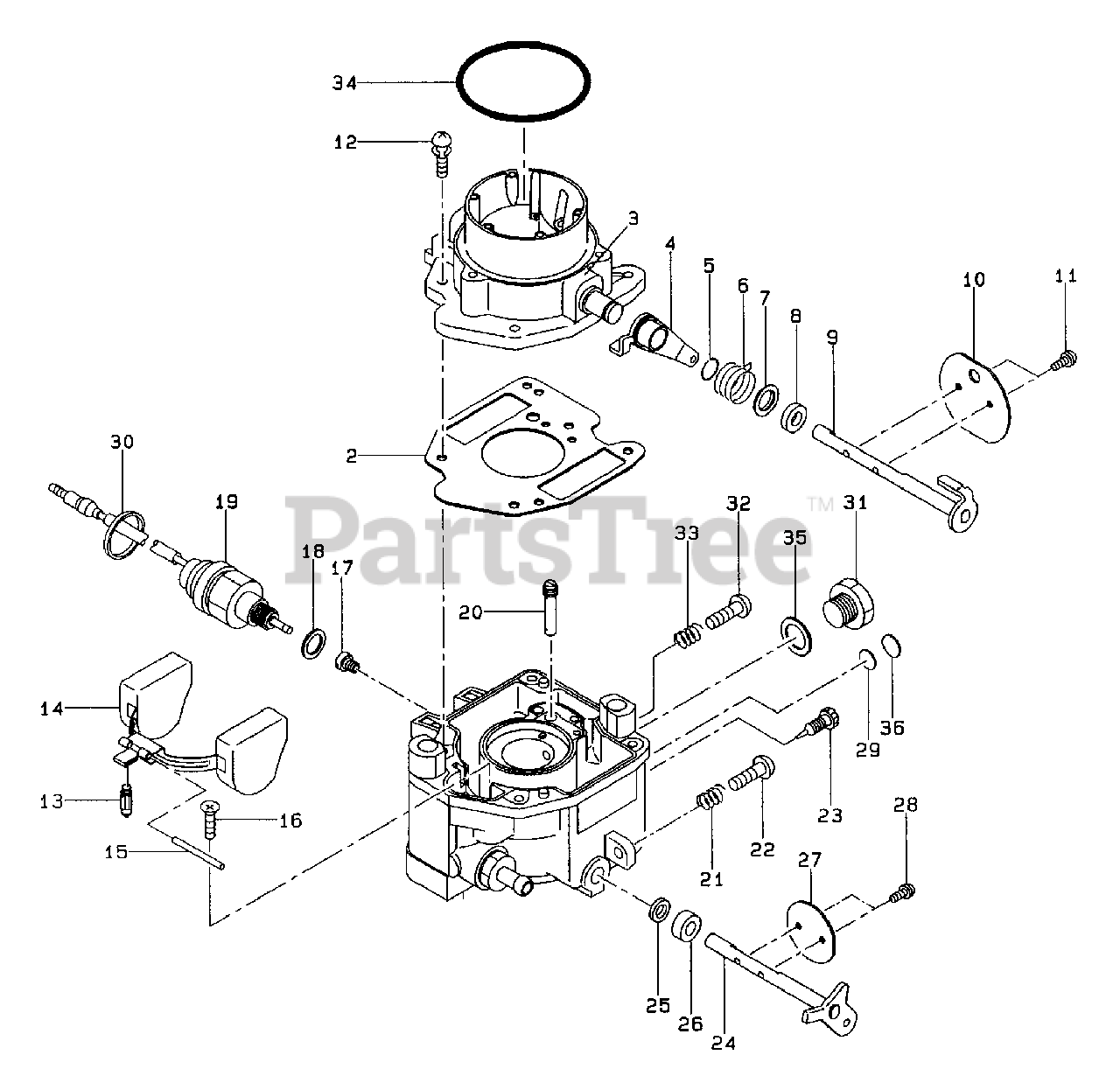

580.328301 (1335-1) - Craftsman 10,000 Watt Portable Generator Carburetor Assembly Parts Diagram

10,000 Watt Portable Generator

Carburetor Assembly Parts Diagram

  • Title
2

Briggs & Stratton 2586254508

GASKET, air horn

$

$

Currently unavailable

3

NSP

BODY, Air Horn

$

$

Not available

4

Briggs & Stratton 2636252408

LEVER ASSY, choke

$

$

Currently unavailable

5

Briggs & Stratton 2586255108

RING, choke lever

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

8

Briggs & Stratton 2586255408

FILTER, choke shaft

$

$

Currently unavailable

9

Briggs & Stratton 2636252008

SHAFT ASSY, choke

$

$

Currently unavailable

$

$

Currently unavailable

11

Briggs & Stratton 2586255508

SCREW, valve set

$

$

Currently unavailable

12

Briggs & Stratton 2586245008

SCREW, air horn set

$

$

Currently unavailable

13

2266250108

VALVE, float

$

$

Not available

$

$

Currently unavailable

$

$

Currently unavailable

16

Briggs & Stratton 2586255608

SCREW, float pin set

$

$

Currently unavailable

17

Briggs & Stratton 2636240008

MAIN JET (# 134)

$

$

Currently unavailable

$

$

Currently unavailable

19

Briggs & Stratton 2586255708

SOLENOID VALVE ASSY

$

$

Currently unavailable

20

$

$

Currently unavailable

21

Briggs & Stratton 2586244508

SPRING, adjust screw

$

$

Currently unavailable

22

Briggs & Stratton 2586245108

SCREW, throttle adjust

$

$

Currently unavailable

23

Briggs & Stratton 2616243508

NEEDLE, idle adjust

$

$

Currently unavailable

24

Briggs & Stratton 2636253008

THROTTLE SHAFT ASSY

$

$

Currently unavailable

25

2266258008

FILTER throttle shaft

$

$

Not available

$

$

Currently unavailable

27

$

$

Currently unavailable

28

2616235208

VALVE SET SCREW (M3 x 5mm)

$

$

Not available

29

$

$

Currently unavailable

30

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

36

Briggs & Stratton 2636257008

PLUG, ANTI TAMPER

$

$

Currently unavailable

Briggs & Stratton 2636250300

CARBURETOR ASSY

Note: (Includes items 2 thru 36)

$

$

Currently unavailable
